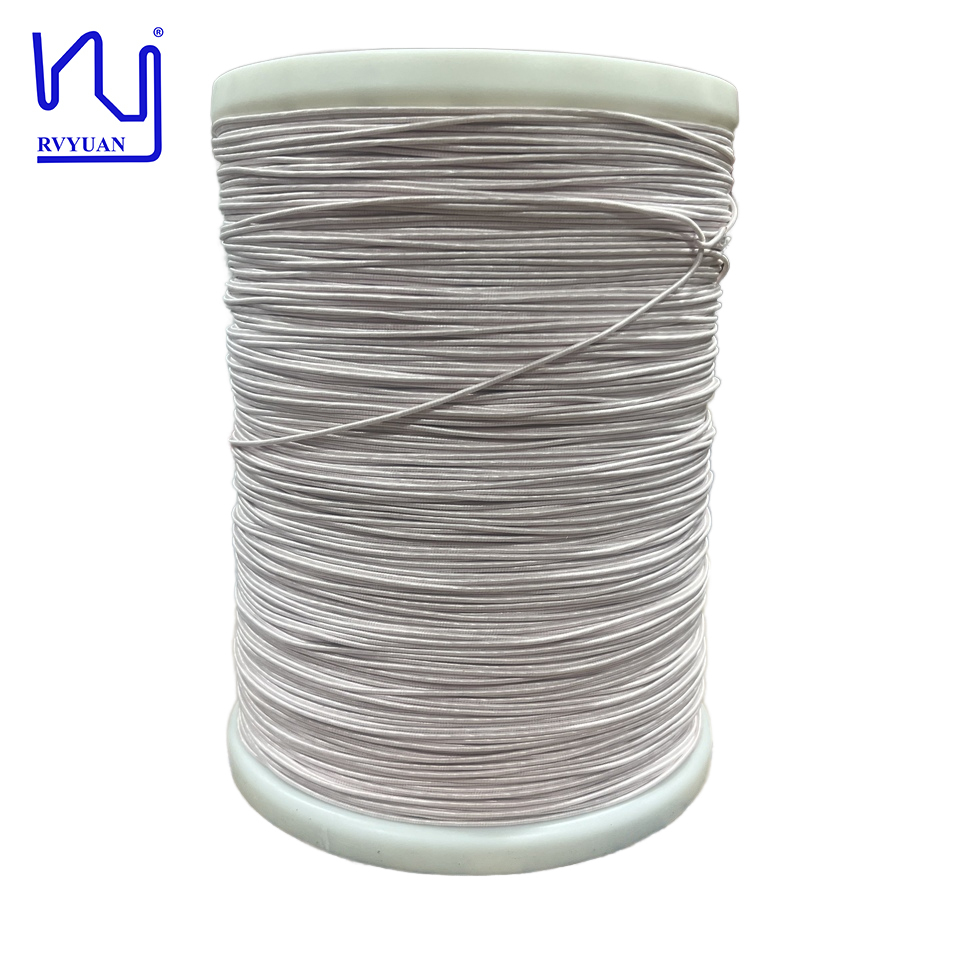

Customizable 38AWG 120 Strands USTC Silk Covered Insulated Litz Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	120	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	Customizable 38AWG 120 Strands USTC Silk Covered Insulated Litz Copper Wire
Key Word:	Customizable 38AWG 120 Strands USTC Silk Covered Insulated Litz Copper Wire
Highlight:	38AWG USTC Litz copper wire , customizable silk insulated wire , 120 strands Litz wire

Product Description

Customizable 38AWG 120 Strands USTC Silk Covered Insulated Litz Copper Wire

In addition to our popular 0.1mm enameled copper wire, we offer a wide range of solid wire options, ranging from 0.025mm to 0.5mm. These options allow you to select the most appropriate wire diameter for your specific application, further enhancing the versatility of our silk-covered litz wire.

Our commitment to quality and performance is reflected in every wire we produce, ensuring you receive a product that meets the highest industry standards. Whether you're working on a small project or a large industrial application, our litz wire solutions will deliver exceptional results.

Product Specifications

Item No	Single wire diameter mm	Conductor diameter mm	O.D. mm	Resistance Ω /m(20℃)	Dielectric strength v
Tech requirement	0.107-0.125	0.10	1.63	0.01984	1100
±		0.003	Max	Max	Min
1	0.111-0.115	0.098-0.10	1.50-1.60	0.01783	3600
