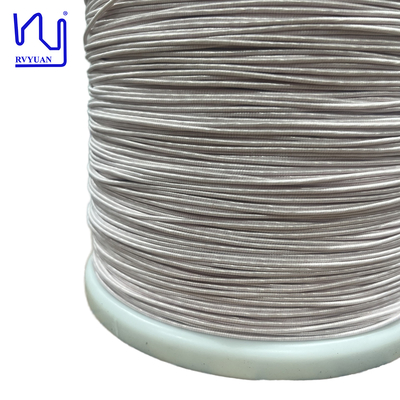

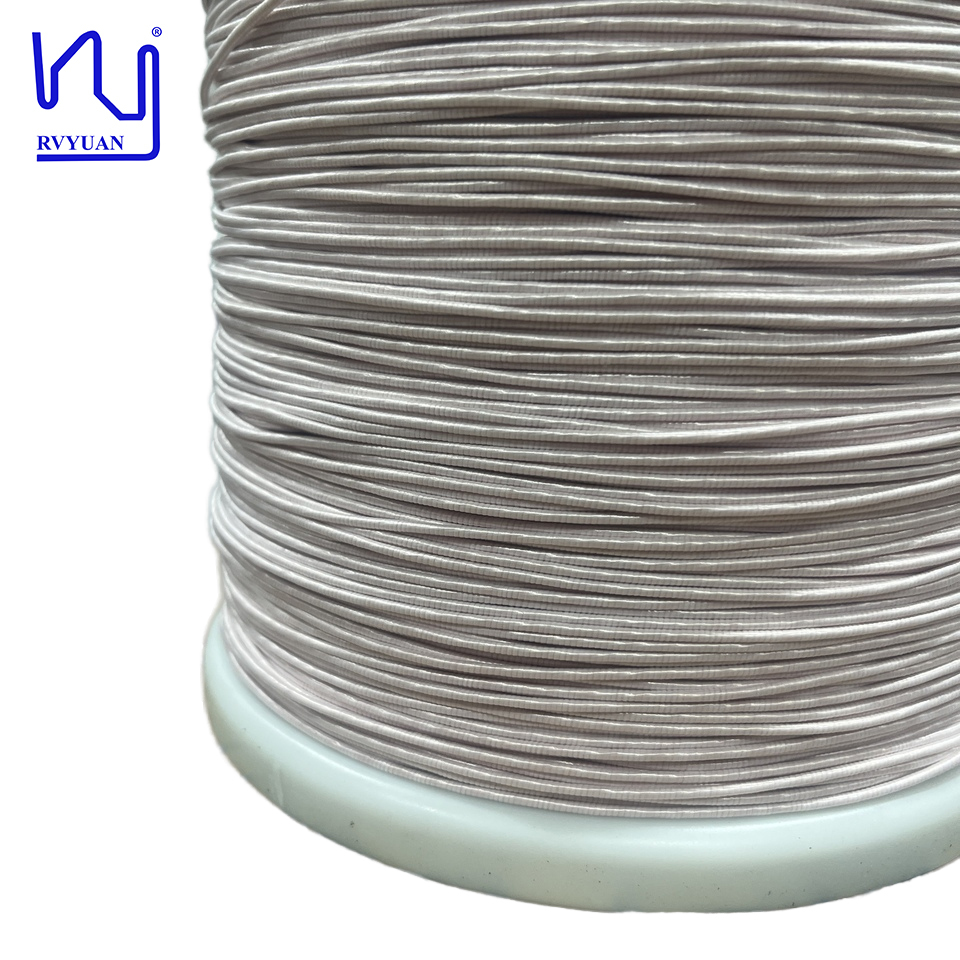

2USTC-F 0.1mmx120 Strands HF Silk Covered Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	120	Breakdown Voltage:	Min.1100
Cover Material:	Nylon	Product Name:	2USTC-F 0.1mmx120 Strands HF Silk Covered Litz Wire For Transformer
Key Word:	2USTC-F 0.1mmx120 Strands HF Silk Covered Litz Wire For Transformer
Highlight:	HF silk covered litz wire , 0.1mm 120 strands litz wire , transformer litz wire with warranty

Product Description

2USTC-F 0.1mmx120 Strands HF Silk Covered Litz Wire For Transformer

This is a customized silk-covered stranded wire. The single wire is 0.1mm enameled copper wire, and it is twisted into 120 strands.

A key feature of our silk covered litz wire is its customizability. We understand that each application may require different specifications, so we offer flexible options for adjusting strand count to meet your unique needs. Whether you require nylon covered or taped litz wire, our team can provide the perfect fit for your project. This customization ensures you receive a solution tailored to your specific application, improving the efficiency and profitability of your transformer windings.

Product Specifications

Attribute	Value
Diameter	0.071mm
Temperature	155
Certification	IEC/NEMA/JIS/RoHS/ISO
Conductor	Copper
Strands	250
Breakdown voltage	1300
Insulation	UEW

Item No	Single wire diameter mm	Conductor diameter mm	O.D. mm	Resistance Ω /m(20℃)	Dielectric strength v
Tech requirement	0.107-0.125	0.10	1.63	0.01984	1100
±		0.003	Max	Max	Min
1	0.111-0.115	0.098-0.10	1.50-1.60	0.01783	3600
