Name: Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	250	Breakdown Voltage:	1300
Insulation:	UEW	Product Name:	Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire For Transformer
Key Word:	Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire For Transformer
Highlight:	custom silk litz wire , stranded copper litz wire , transformer litz wire

Product Description

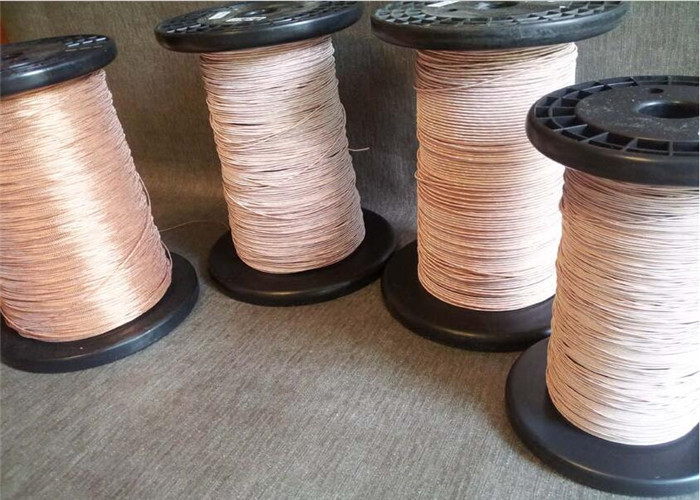

Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer

Our company specializes in providing custom silk covered litz wire, with single wire sizes ranging from 0.025mm to 0.5mm. We offer a wide range of strand counts, from single-strand to 13,000 strands, ensuring that we can meet your specific needs. In addition to silk-covered litz wire, we also supply taped litz wire and flat taped litz wire. Our products are meticulously crafted to meet your system requirements, ensuring optimal performance and reliability. With a commitment to quality and customization, we work closely with our clients to deliver litz wire solutions that perfectly align with their applications. Trust us to provide the ideal litz wire tailored to your specifications.

Product Specifications

Attribute	Value
Diameter	0.071mm
Temperature	155
Certification	IEC/NEMA/JIS/RoHS/ISO
Conductor	Copper
Strands	250
Breakdown voltage	1300
Insulation	UEW

Technical Specifications

Item	Technical requests	Test value 1	Test value 2
Conductor Diameter (mm)	0.076-0.084	0.079	0.080
Single wire diameter (mm)	0.071±0.003	0.068	0.070
O.D. (mm)	Max. 1.85	1.57	1.68
Resistance Ω/m (20℃)	Max. 0.01196	0.01815	0.01812
Breakdown Voltage V	950	3100	3000
Pitch mm	29± 5	√	√
No. of strands	250	√	√

Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand
