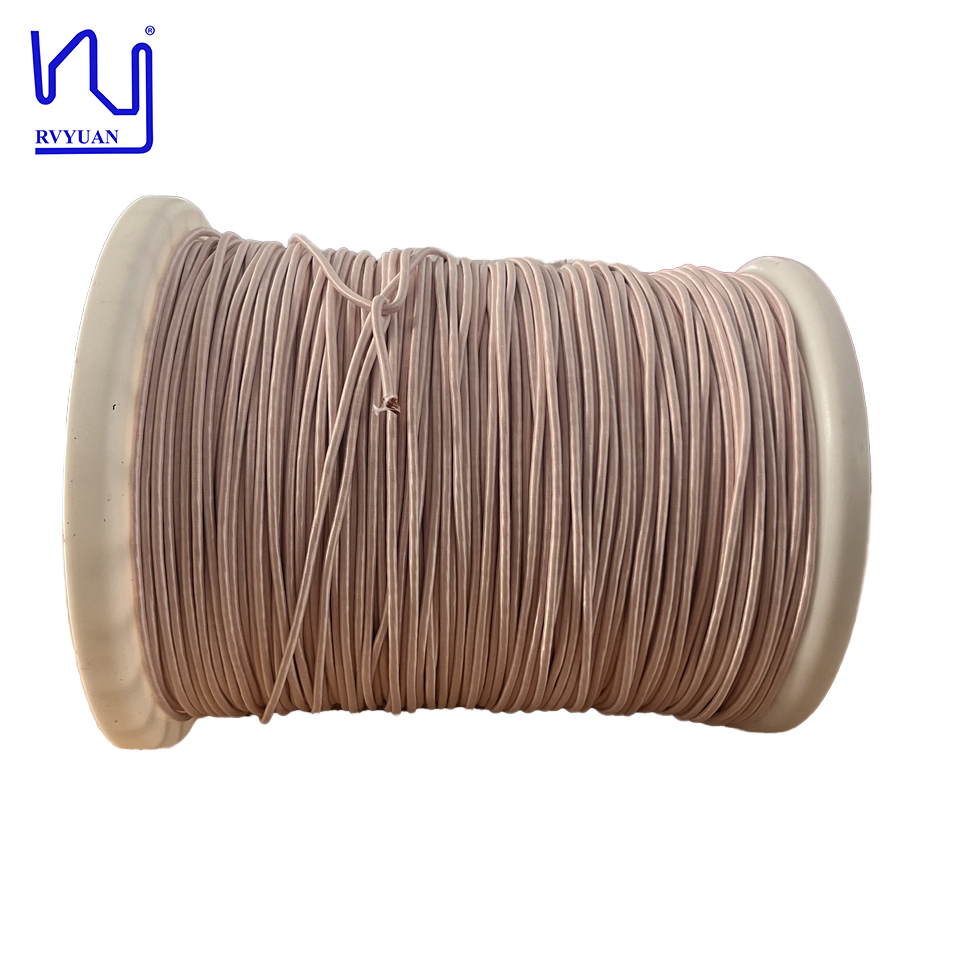

2USTC-F 0.071mmx250 Stranded Wire Copper Litz Wire for Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	250	Breakdown Voltage:	1300
Insulation:	UEW	Product Name:	2USTC-F 0.071mmx250 Stranded Wire Copper Litz Wire For Transformer
Key Word:	2USTC-F 0.071mmx250 Stranded Wire Copper Litz Wire For Transformer
Highlight:	stranded copper litz wire , transformer litz wire 0.071mm , 250 strand litz wire

Product Description

2USTC-F 0.071mmx250 Stranded Wire Copper Litz Wire for Transformer

The natural silk covered litz wire is the clear choice for customers seeking reliability and performance in transformer winding and voice coil wire applications. With our extensive experience, commitment to quality, and unwavering dedication to customer satisfaction, we're confident our natural silk-covered litz wire will meet your needs and elevate your project to new heights.

Product Specifications

Attribute	Value
Diameter	0.071mm
Temperature	155
Certification	IEC/NEMA/JIS/RoHS/ISO
Conductor	Copper
Strands	250
Breakdown voltage	1300
Insulation	UEW

Technical Specifications

Item	Technical requests	Test value 1	Test value 2
Conductor Diameter (mm)	0.076-0.084	0.079	0.080
Single wire diameter (mm)	0.071±0.003	0.068	0.070
O.D. (mm)	Max. 1.85	1.57	1.68
Resistance Ω/m (20℃)	Max. 0.01196	0.01815	0.01812
Breakdown Voltage V	950	3100	3000
Pitch mm	29± 5	√	√
No. of strands	250	√	√

Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
