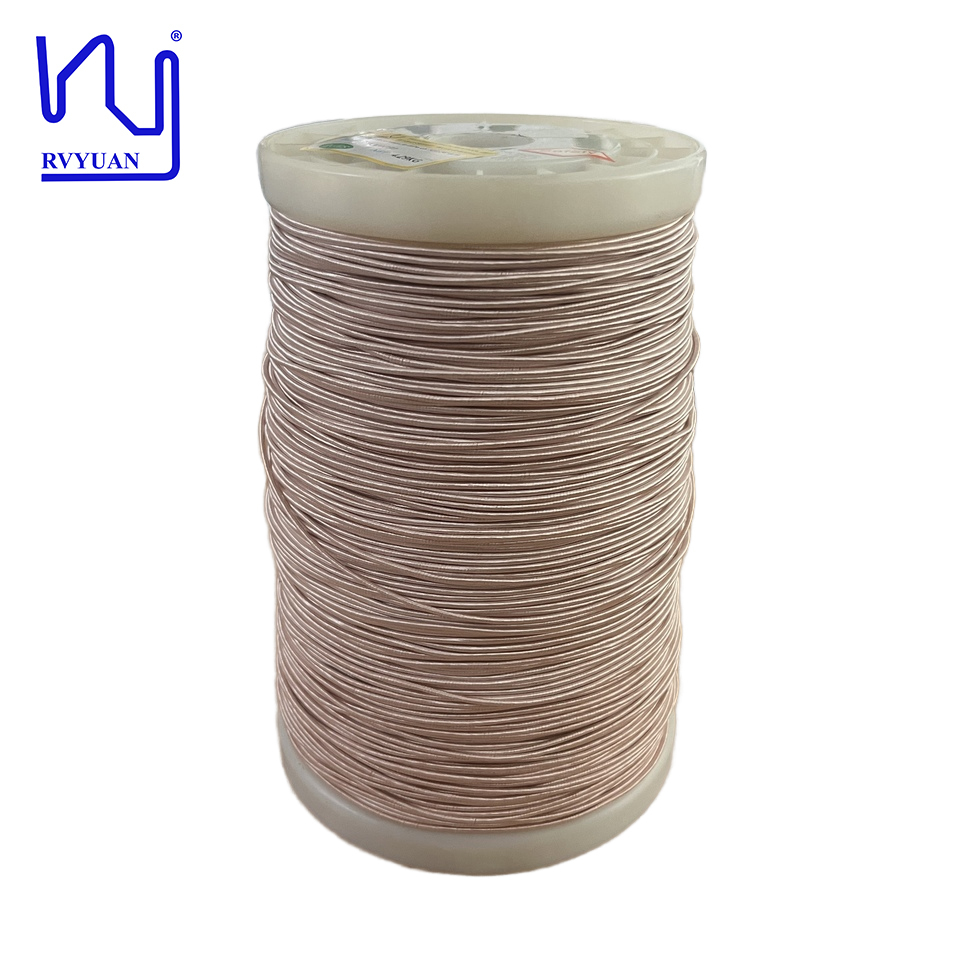

Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	250	Breakdown Voltage:	1300
Insulation:	UEW	Product Name:	Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire
Key Word:	Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire
Highlight:	customizable USTC litz copper wire , 0.071mm silk insulated litz wire , 250 strands silk covered wire

Product Description

Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire

Our company understands the importance of supporting startups and small businesses. We offer a small, customizable ordering service, enabling you to order the quantity of silk covered litz wire you need without the burden of excessive inventory. This flexibility allows you to bring innovative ideas to life while maintaining cost-effectiveness. Our team is committed to working with you throughout the entire process, from initial design to final production, to ensure you receive a high-quality product that exceeds your expectations.

Product Specifications

Attribute	Value
Diameter	0.071mm
Temperature	155
Certification	IEC/NEMA/JIS/RoHS/ISO
Conductor	Copper
Strands	250
Breakdown voltage	1300
Insulation	UEW

Technical Specifications

Item	Technical requests	Test value 1	Test value 2
Conductor Diameter (mm)	0.076-0.084	0.079	0.080
Single wire diameter (mm)	0.071±0.003	0.068	0.070
O.D. (mm)	Max. 1.85	1.57	1.68
Resistance Ω/m (20℃)	Max. 0.01196	0.01815	0.01812
Breakdown Voltage V	950	3100	3000
Pitch mm	29± 5	√	√
No. of strands	250	√	√
