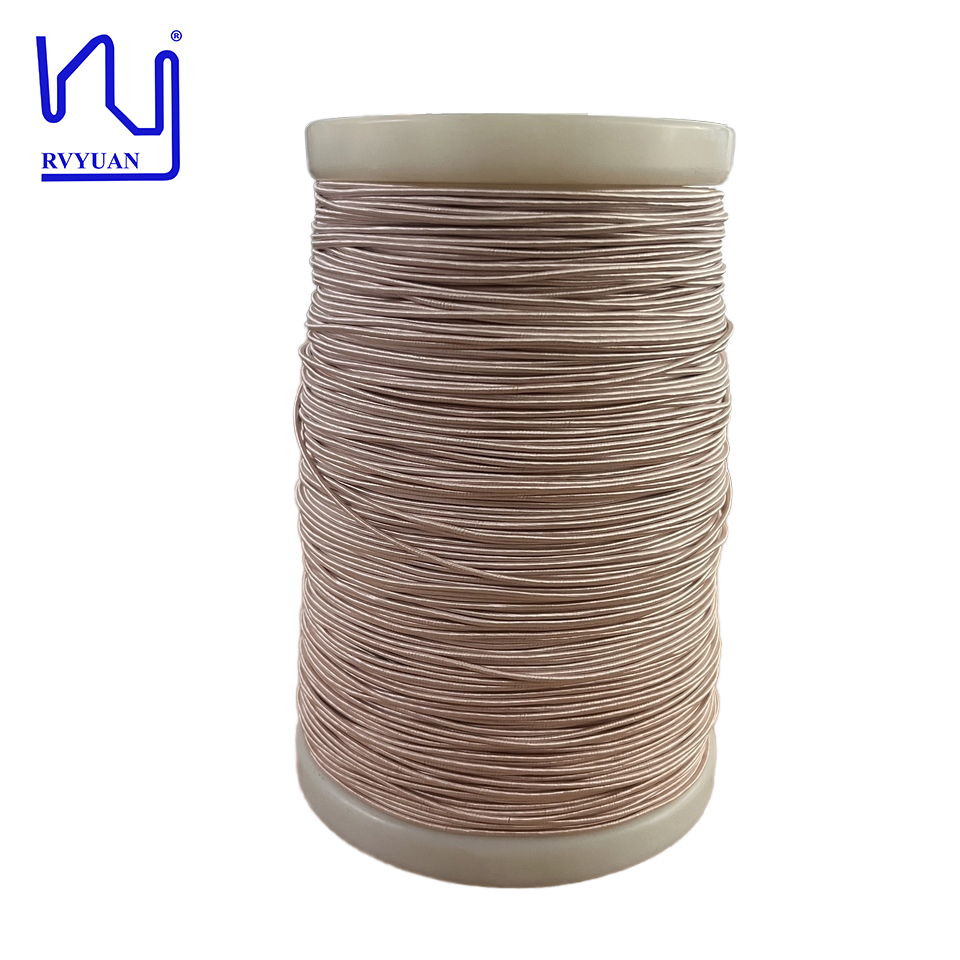

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T/ Paypal
Supply Ability: Satisfy your demand
Detail Information
Diameter: 0.071mm Temperature: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conductor: Copper
Strands: 250 Breakdown Voltage: 1300
Insulation: UEW Product Name: Custom 0.071mm Nylon Served Copper Litz Wire For Transformers
Key Word: Custom 0.071mm Nylon Served Copper Litz Wire For Transformers
Highlight:

custom nylon served litz wire

,

0.071mm copper litz wire

,

litz wire for transformers


Product Description

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers
With over 23 years of experience in litz wire production, we pride ourselves on our expertise and commitment to quality. Our extensive product line includes not only silk-covered litz wire, but also taped litz wire, taped flat litz wire, and stranded wire. This broad selection enables us to meet diverse application needs across a wide range of industries.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Custom 0.071mm Nylon Served Copper Litz Wire for Transformers 0
We understand that every project is unique, so we're committed to providing customized solutions to meet your specific needs. Working closely with our customers, we ensure the final product meets their exact design specifications.
