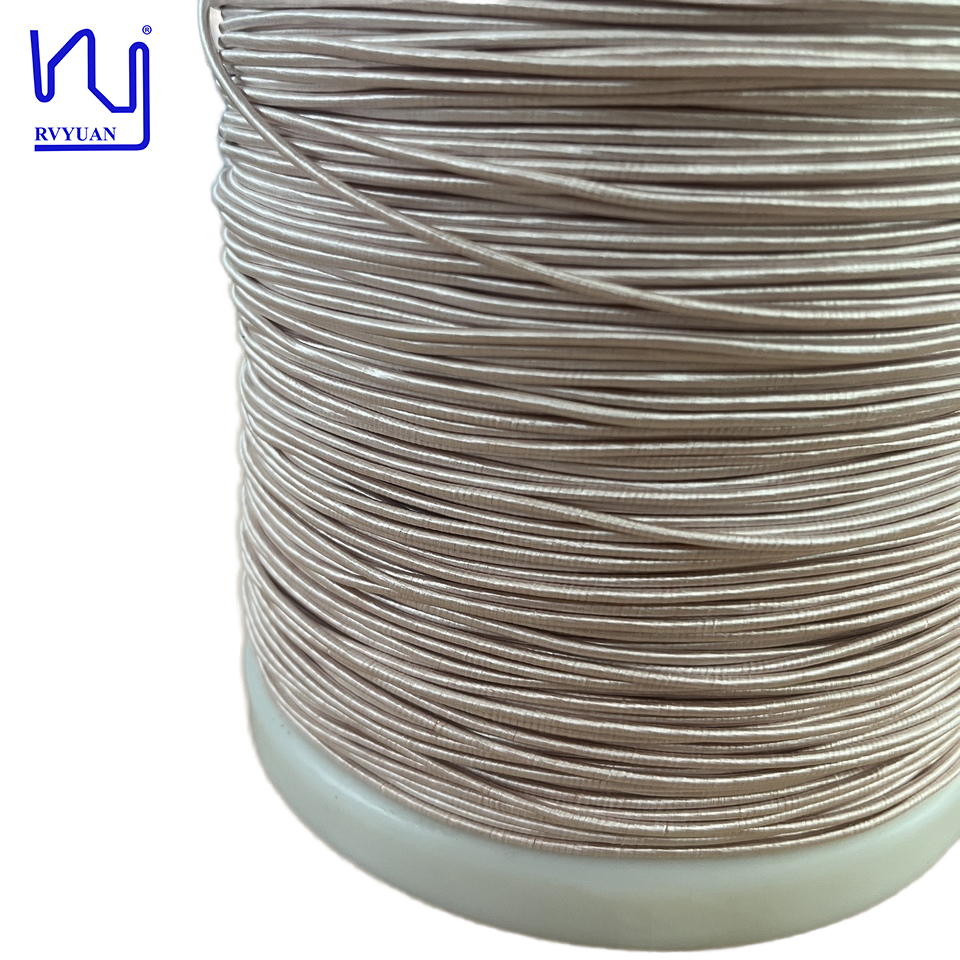

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T/ Paypal
Supply Ability: Satisfy your demand
Detail Information
Diameter: 0.071mm Temperature: 155
Certification: IEC/NEMA/JIS/RoHS/ISO Conductor: Copper
Strands: 250 Breakdown Voltage: 1300
Insulation: UEW Product Name: USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire
Key Word: USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire
Highlight:

natural silk covered litz wire

,

0.071mm litz wire with silk

,

ustc litz wire 250 strands


Product Description

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire
The unique construction of silk covered litz wire provides excellent conductivity and effectively reduces skin effect, making it ideal for high-frequency applications. In transformer winding, the wire's flexibility and durability ensure it withstands the rigors of continuous operation while maintaining optimal performance. Furthermore, the natural silk covering provides excellent insulation, further enhancing the wire's performance in harsh environments. Whether you're designing a new transformer or developing a high-fidelity audio system, the silk covered litz wire delivers exceptional performance.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire 0
