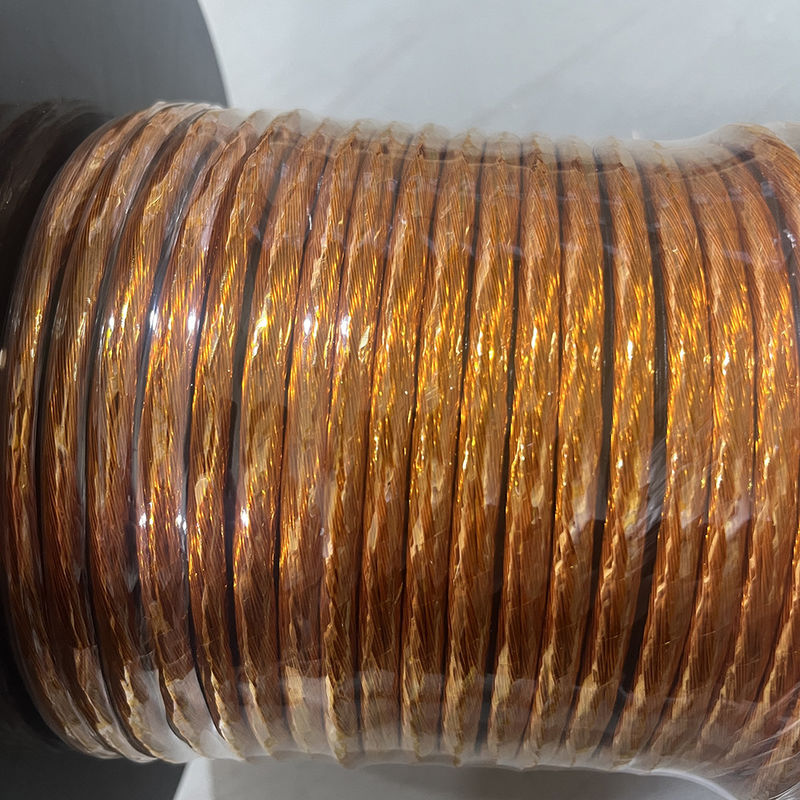

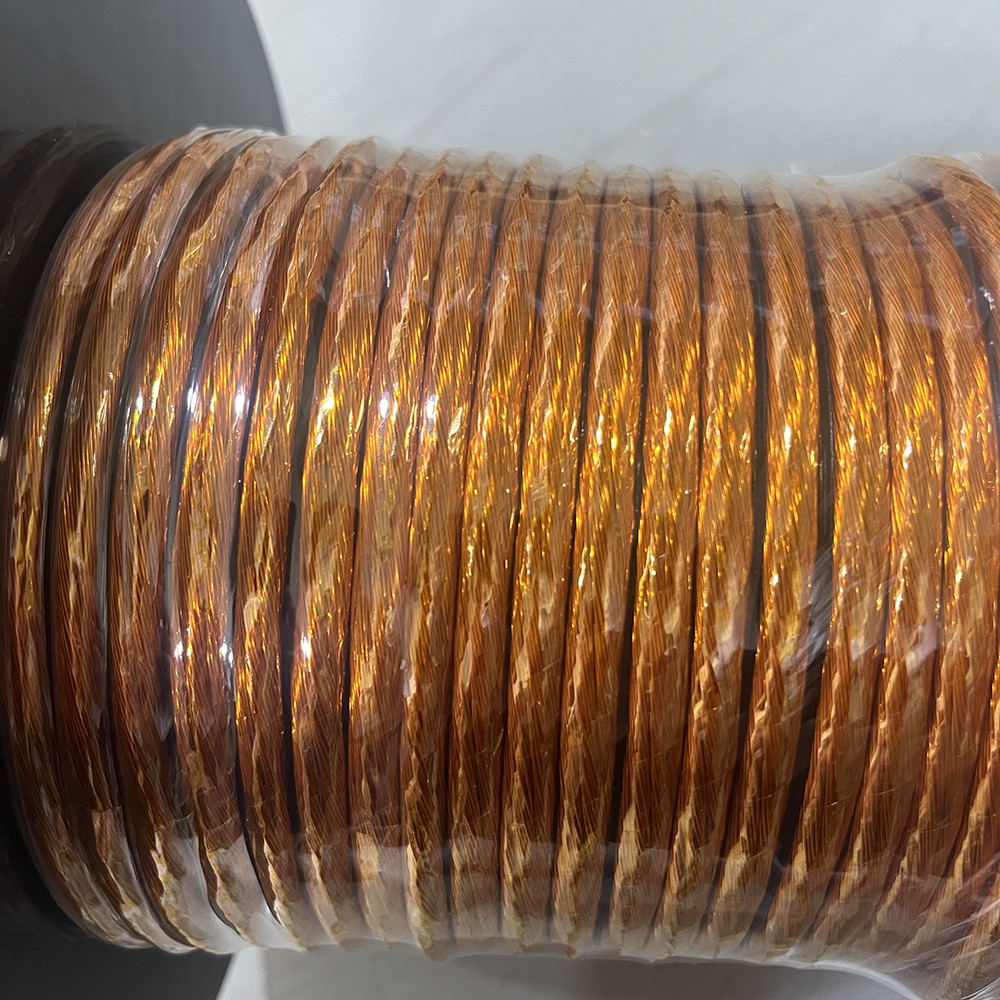

0.03mm- 0.4mm Enameled Copper Twist Wire Taped Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	0.03mm- 0.4mm Enameled Copper Twist Wire Taped Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.4mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	180
Key Word:	0.03mm- 0.4mm Enameled Copper Twist Wire Taped Litz Wire	No. Of Strands:	120

Product Description

0.03mm- 0.4mm Enameled Copper Twist Wire Taped Litz Wire

Our commitment to quality extends beyond the materials used; we prioritize precision in manufacturing to ensure that every length of our taped litz wire meets stringent industry standards. This attention to detail guarantees that you receive a product that not only performs exceptionally but also stands the test of time.

Outgoing test of stranded wire	Spec: 0.4x120	Model: 2UEW-F-PI Tape spec:0.025x20
Item	Standard	Test result
Outer conductor diameter(mm)	0.433-0.439	0.424-0.432
Conductor diameter(mm)	0.40±0.005	0.396-0.40
Overall diameter (mm)	Max.6.87	6.04-6.64
Pitch(mm)	130±20	√
Max resistance (Ω/m at20℃)	Max. 0.001181	0.001116
Breakown voltage Mini (V)	6000	13000
