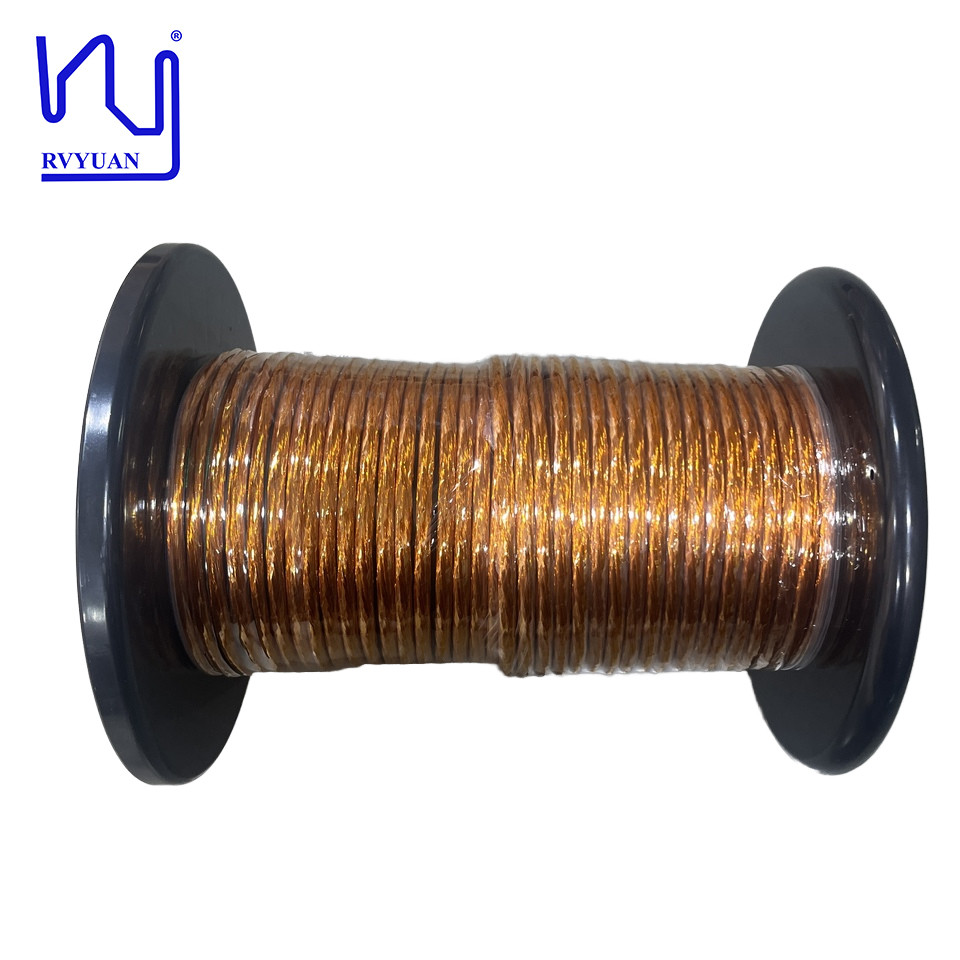

PI Film 0.4mm X 120 High Frequency Taped Litz Wire Copper Conductor Solid

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Taped litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	PI Film 0.4mm X 120 High Frequency Taped Litz Wire Copper Conductor Solid	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.4mm	Conductor:	Copper
Insulation:	PI Film	Rated Temperature:	180
Key Word:	PI Film 0.4mm X 120 High Frequency Taped Litz Wire Copper Conductor Solid	No. Of Strands:	120

Product Description

PI Film 0.4mm X 120 High Frequency Taped Litz Wire Copper Conductor Solid

One of the standout features of our customized litz wire is its adaptability. We understand that every project has unique requirements, which is why we offer customization options tailored to your specific needs. You can choose the wire diameter, the number of strands, and the type of cover, ensuring that you receive a product that perfectly aligns with your project specifications. This level of customization allows you to optimize your designs without compromising on quality.

Outgoing test of stranded wire	Spec: 0.4x120	Model: 2UEW-F-PI Tape spec:0.025x20
Item	Standard	Test result
Outer conductor diameter(mm)	0.433-0.439	0.424-0.432
Conductor diameter(mm)	0.40±0.005	0.396-0.40
Overall diameter (mm)	Max.6.87	6.04-6.64
Pitch(mm)	130±20	√
Max resistance (Ω/m at20℃)	Max. 0.001181	0.001116
Breakown voltage Mini (V)	6000	13000
