Litz Twisted Wire Copper Wire High Frequency Enameled Copper , AWG 24 - 44 Stranded Insulated Solid 0.1-0.51mm

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 7 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Litz Twisted Wire Copper Wire High Frequency Enameled Copper , AWG 24 - 44 Stranded Insulated Solid 0.1-0.51mm Diameter: 0.1mm
No. Of Strands: 35 Conductor: Copper
Certification: ISO9001/ISO14001/UL/SGS Insulation: Polyurethane
Rated Temperature: 155/180 Key Word: Litz Twisted Wire Copper Wire High Frequency Enameled Copper , AWG 24 - 44 Stranded Insulated Solid 0.1-0.51mm

Product Description

Litz Twisted Wire Copper Wire High Frequency Enameled Copper , AWG 24 - 44 Stranded Insulated Solid 0.1-0.51mm



The custom Litz wires are ideal for electronics and industrial professionals seeking high-quality, high-frequency solutions. With excellent conductivity, high-temperature performance, and customizable strand configurations, our Litz wires meet the stringent requirements of transformer winding and other critical applications. When you choose our Litz wires, you invest in products that not only improve equipment performance, but also promote technological advancements across a wide range of industries. Experience the superior performance of our high-frequency Litz wires for your projects and open up new possibilities for innovation and efficiency.



Outgoing test of stranded wire Spec: 0.1x35 Model: 2UEW-F
Item Standard Test result
Outer conductor diameter(mm) 0.110-0.125 0.119 0.120 0.122
Conductor diameter(mm) 0.100±0.002 0.10 0.10 0.10
Pitch(mm) 33±7
Breakdown voltage Mini (V) Min.1100 2400v 2300v 2500v

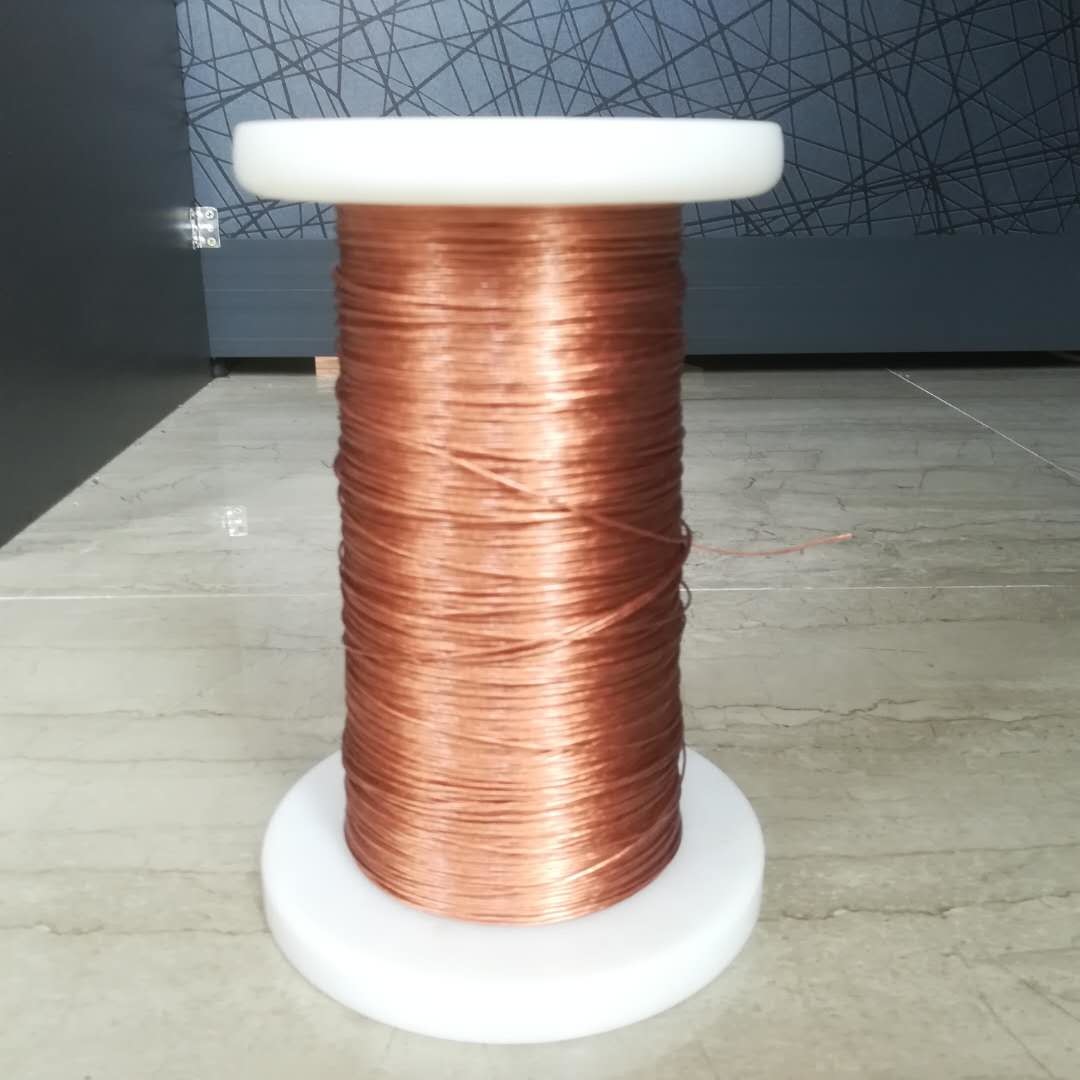

Litz Twisted Wire Copper Wire High Frequency Enameled Copper , AWG 24 - 44 Stranded Insulated Solid 0.1-0.51mm 0



Litz Twisted Wire Copper Wire High Frequency Enameled Copper , AWG 24 - 44 Stranded Insulated Solid 0.1-0.51mm 1
