Name: UEW155/180 50 AWG Copper Litz Wire Super Thin For High Frequency Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Detail Information

Name:	UEW155/180 50AWG Super Thin Copper Litz Wire For High Frequency Transformer	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.025mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	UEW155/180 50AWG Super Thin Copper Litz Wire For High Frequency Transformer
No. Of Strands:	28
Highlight:	50 awg copper litz wire , high frequency transformer litz copper wire , 50 gauge copper litz wire

Product Description

UEW155/180 50AWG Super Thin Copper Litz Wire For High Frequency Transformer

The Litz wire's ultra-fine strand design provides the perfect balance between softness and strength. This allows the litz wire to bend freely in tight spaces without breaking or being damaged. For engineers and technicians, this means that they can route and connect circuits more easily and improve work efficiency. Not only that, but the withstand voltage of litz wire is also one of the highlights of its performance.

No.	Characteristics	Technical requests	Test Results
1	Surface	Good	OK
2	Single wire outer diameter (mm)	0.026-0.029	0.027
3	Single wire inner diameter(mm)	0.025±0.003	0.024
4	Overall diameter(mm)	Max. 0.183	0.17
5	Pitch(mm)	6.61	√
6	Breakdown Voltage	Min. 200V	1000V
7	Conductor Resistance Ω/m(20℃)	Max. 1.685	1.300

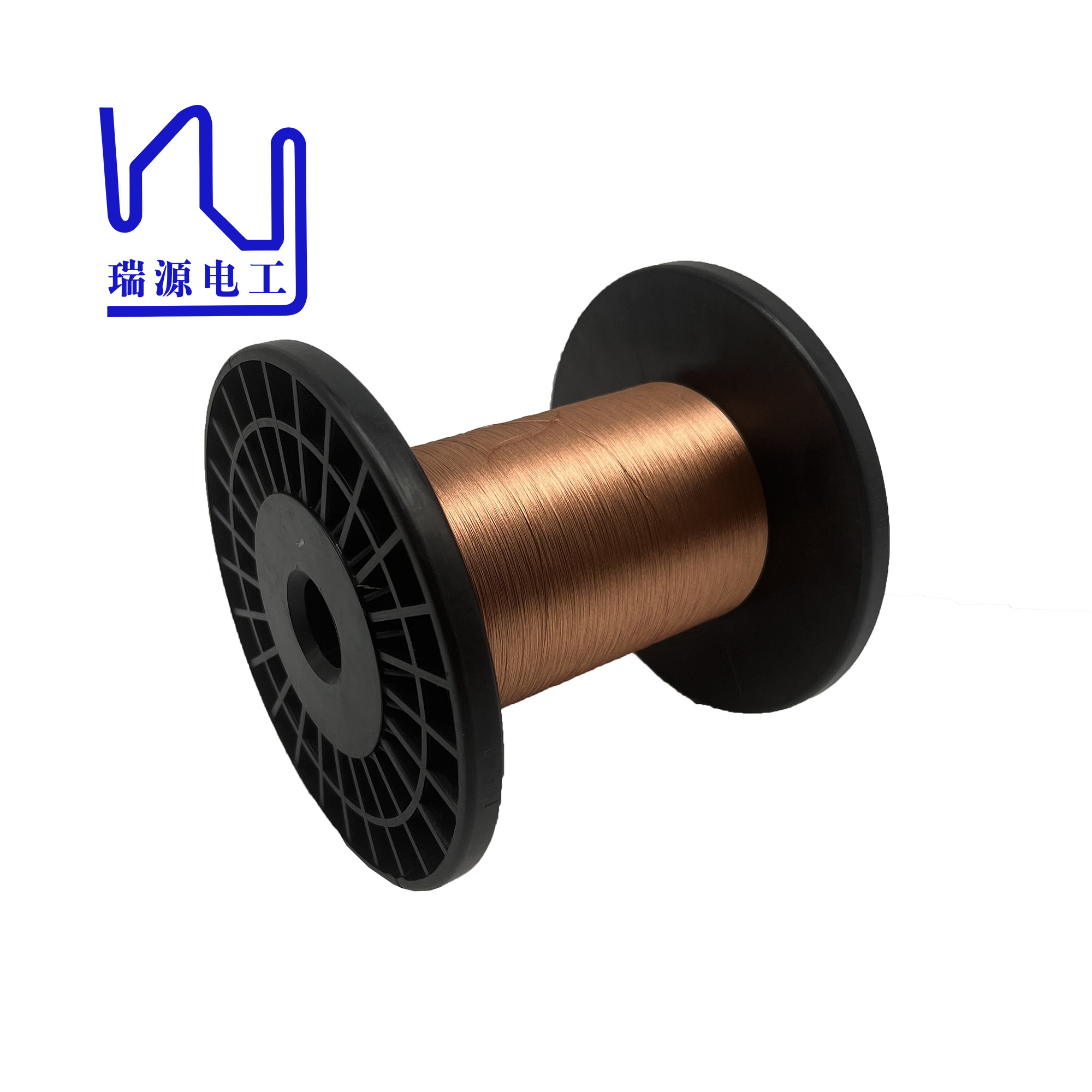

UEW155/180 50 AWG Copper Litz Wire Super Thin For High Frequency Transformer 0

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
