0.18mm Speaker Coil Usage Enamelled Copper Self Bonding Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.18mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	0.18mm Speaker Coil Usage Enamelled Copper Self Bonding Wire	Thermal Rating:	220
Insulation Material:	AIW	Diameter:	0.18mm
Conductor Material:	Copper	Key Word:	0.18mm Speaker Coil Usage Enamelled Copper Self Bonding Wire

Product Description

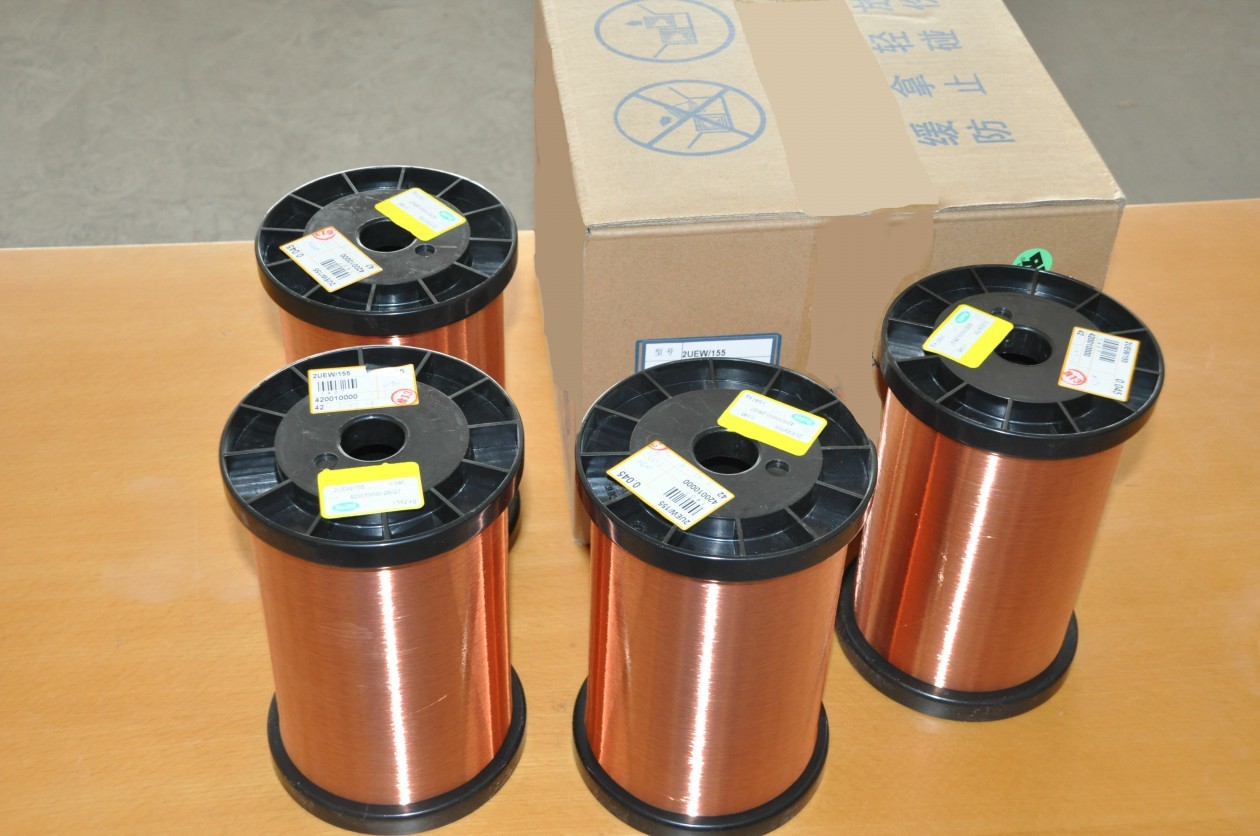

0.18mm Speaker Coil Usage Enamelled Copper Self Bonding Wire

Ruiyuan's AIW enameled copper round wire is an ideal solution for those seeking high-quality, customizable and reliable enameled wire. With its excellent high temperature resistance and self-adhesive properties, it is able to meet the diverse needs of various applications. Choose Ruiyuan as your winding solution and experience excellent quality and performance.

Test Items	Requirements	Test Data			Result
		Min Sample	Ave Sample	Max Sample
Conductor Diameter	0.18mm ±0.003mm	0.180	0.180	0.180	OK
Thickness of Insulation	≥0.008mm	0.019	0.020	0.020	OK
Basecoat dimensions Overall dimensions	Min.0.226	0.210	0.211	0.212	OK
Bonding film thickness	≤ 0.004mm	0.011	0.011	0.012	OK
DC Resistance	≤ 715Ω/km	679	680	681	OK
Elongation	≥15%	29	30	31	OK
Breakdown Voltage	≥2600V	4669			OK
Bonding Strength	Min.29.4 g	50			OK
