Product Name: | TIW-B 0.16mm Triple Insulated Wire Insulated Solid Copper Conductor | Thermal Rating: | 130 |
---|---|---|---|
Diameter: | 0.16mm | Conductor Material: | Copper |
Key Word: | TIW-B 0.16mm Triple Insulated Wire Insulated Solid Copper Conductor |

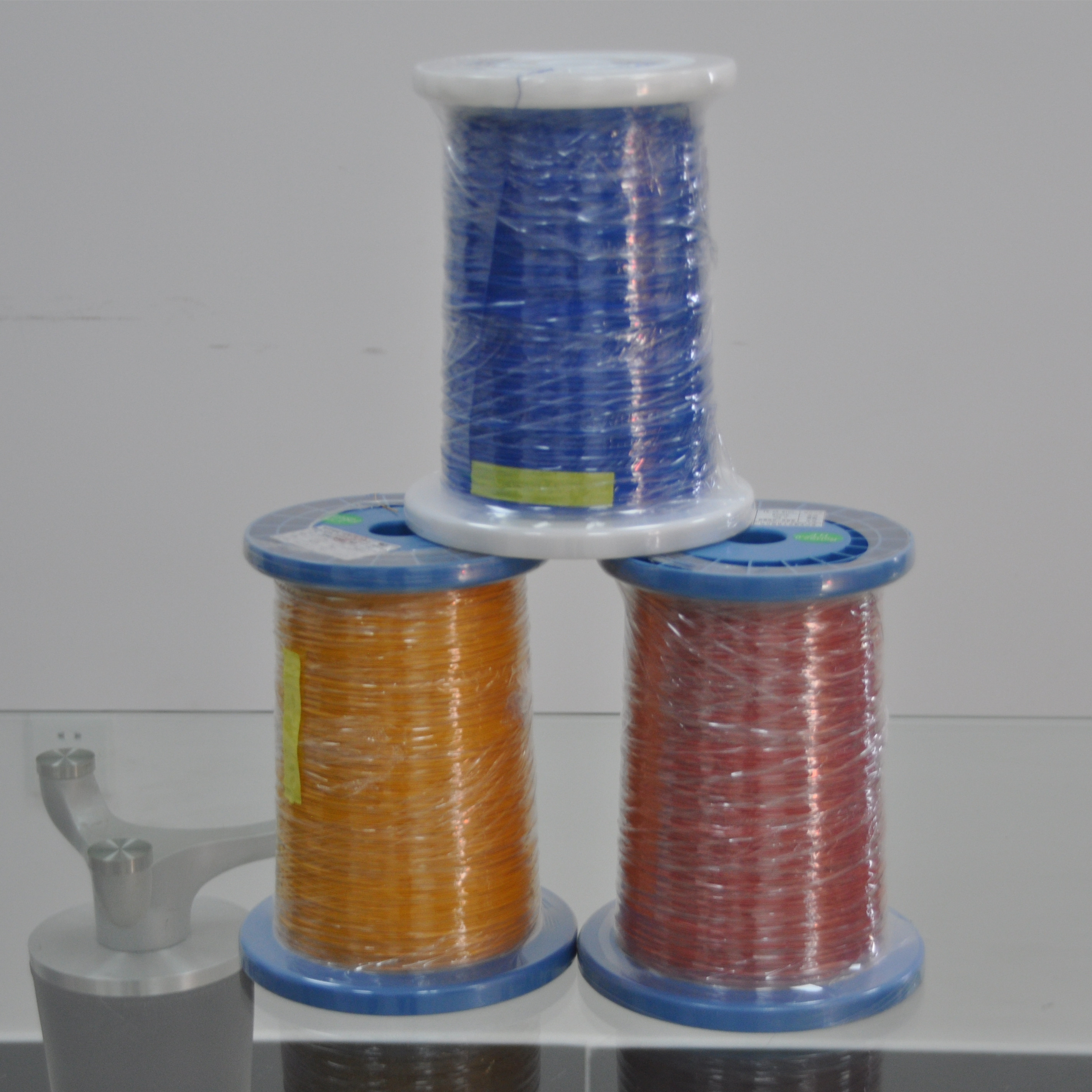

TIW-B 0.16mm Triple Insulated Wire Insulated Solid Copper Conductor
Triple-insulated wire is a revolutionary advancement in wire technology, with better insulation and safety than traditional wires. The unique structure of TIW wire contains three layers of insulation, which not only improves the withstand voltage, but also significantly reduces the risk of electrical breakdown. This makes our TIW wire particularly suitable for high-voltage applications where safety and performance are critical. By using Ruiyuan's triple-insulated wire, manufacturers can ensure that their transformers can operate efficiently and safely even under harsh conditions.
Characteristics |
Test standard |
conclusion |
Package |
Wether package condition is good(including carton, spool, PE film, air bubble film), whether carton's seal is complete |
OK |
Bare wire diameter |
0.16±0.008mm |
0.159-0.164 |
Overall diameter |
0.36±0.020mm |
0.359-0.362 |
Conductor resistance |
Max. 950.1Ω/KM |
898.3Ω/KM |
Breakdown voltage of straight wire |
The length of wire 305mm, wind on the copper bar, test condition 1mA/60s5.0KV |
OK |
Elongation |
Min. 15% |
17.2-18.5 |
Solerability |
430±5℃ 1-2.5 secs |
OK |
