Name: 2USTC-H 60 X 0.15mm Copper Stranded Wire Silk Covered Litz Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTCF litz wire
Price: 24.06 USD
Availability: InStock

Detail Information

Single Wire:	0.15mm	Number Of Strands:	60
Jacket:	Nylon	Other Option Of Jackets:	Polyester, Natural Silk
Conductor Material:	Copper	Key Word:	2USTC-H 60 X 0.15mm Copper Stranded Wire Silk Covered Litz Wire
Product Name:	2USTC-H 60 X 0.15mm Copper Stranded Wire Silk Covered Litz Wire
Highlight:	60 x 0.15mm Litz Wire , Silk Covered Litz Wire , 2USTC-H Litz Wire

Product Description

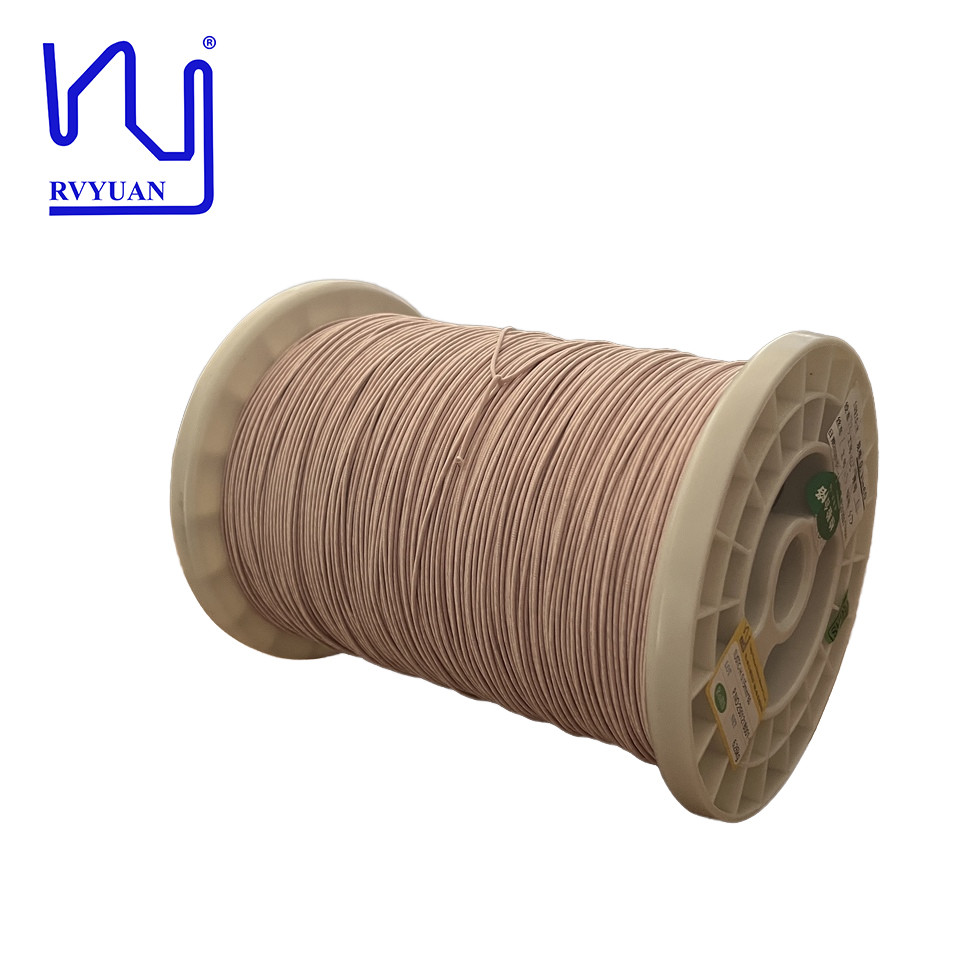

2USTC-H 60 x 0.15mm Copper Stranded Wire Silk Covered Litz Wire

The outer layer is wrapped in a durable nylon yarn, while the inner litz wire consists of 60 strands of 0.15mm enameled copper wire. With a temperature resistance level of 180 degrees Celsius, this wire is engineered to perform reliably in high temperature environments, making it an ideal choice for a wide range of applications..

Type Conductor diameter*Strand number			2USTC-H 0.15*60
Single wire(strand)	Conductor diameter(mm)		0.150±0.003
	overall diameter (mm)		0.165-0.177
	Thermal Class(℃)		180
Strands construction	Strands number		60
	Pitch(mm)		32±3
	bunching direction		S
Insulation layer	Material type		Nylon
	Material specs(mm*mm or D)		350
	Times of Wrapping		1
	Overlap(%) or thickness(mm),mini		0.02
	Wrapping direction		S
Characteristics	Overall Diameter	Nominal (mm)	1.61
		Max(mm)	1.62
	Max pinholes 个/6m		40
	Max resistance (Ω/Km at20℃)		17.28
	Breakdown voltage Mini (V)		1300

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTCF litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	TT/Paypal
Supply Ability:	100kg/week
