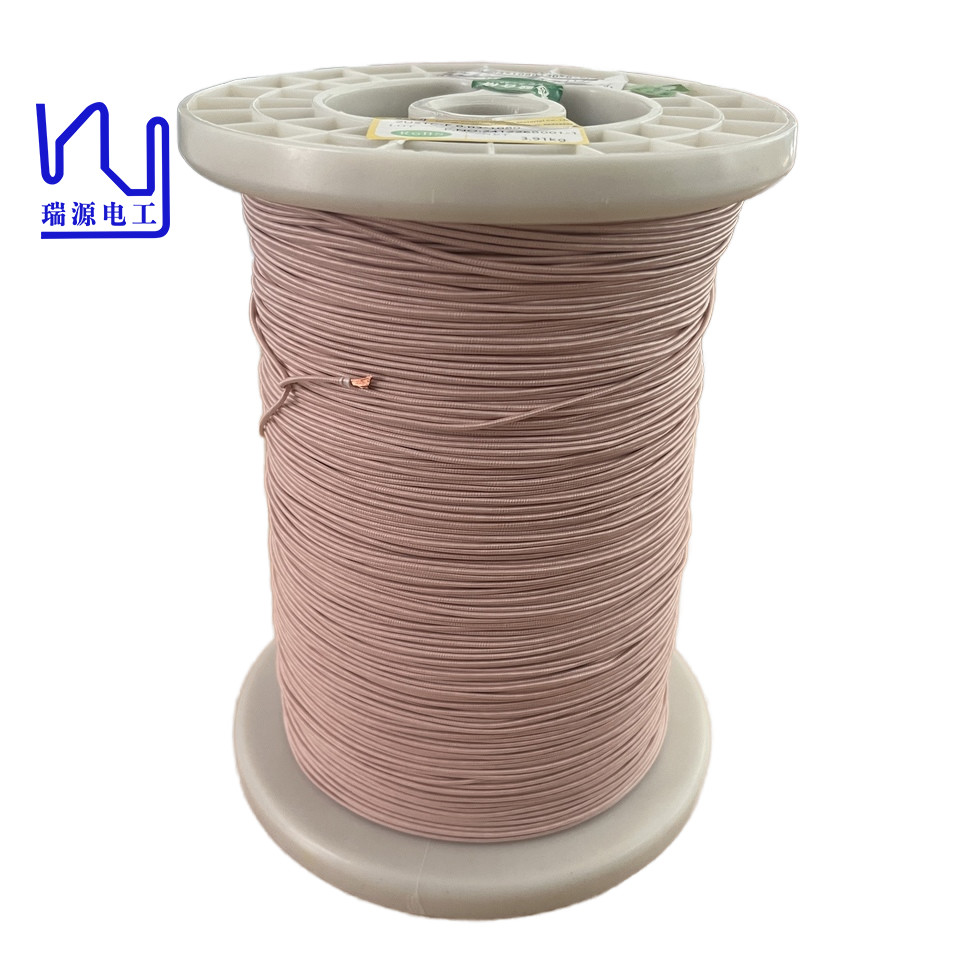

2USTC-F 1080X0.03mm High Frequency Silk Covered Litz Wire For Transformer Winding

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTCF litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	TT/Paypal
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Single Wire:	0.03mm	Number Of Strands:	1080
Jacket:	Nylon	Other Option Of Jackets:	Polyester, Natural Silk
Conductor Material:	Copper	Key Word:	2USTC-F 1080X0.03mm High Frequency Silk Covered Litz Wire For Transformer Winding
Product Name:	2USTC-F 1080X0.03mm High Frequency Silk Covered Litz Wire For Transformer Winding
Highlight:	1080X0.03mm Silk Covered Litz Wire , High Frequency Silk Covered Litz Wire , Transformer Winding Silk Covered Litz Wire

Product Description

2USTC-F 1080X0.03mm High Frequency Silk Covered Litz Wire For Transformer Winding

The core of our silk covered litz wire is a unique construction wrapped in a durable nylon yarn for enhanced protection and flexibility. The inner stranded wire consists of 1080 strands of ultra-fine 0.03 mm enameled copper wire, which significantly reduces skin and proximity effects, ensuring optimal performance at high frequencies.

Item	Technical requests	Sample 1	Sample 2	Sample 3
Single wire diameter mm	0.110-0.125	0.113	0.111	0.112
Conductor Diameter mm	0.100±0.003	0.10	0.10	0.10
O.D. mm	Max.1.48	1.27	1.31	1.34
Pitch	17±5	√	√	√
Resistance Ω/Km(20℃)	Max.28.35	√	√	√
Breakdown Voltage V	Min.1100	2700	2700	2600
Pinhole	84 faults/5m	3	4	5
Solerability	390 ±5C° 6s	ok	ok	ok
