| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 3000 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | Rectangular 9.4mmx3.4mm 0.08mm*3000 Strands Silk Covered Litz Wire |
| Product Name: | Rectangular 9.4mmx3.4mm 0.08mm*3000 Strands Silk Covered Litz Wire | ||
| Highlight: | 0.08mm*3000 Strands Silk Covered Litz Wire,9.4mmx3.4mm Silk Covered Litz Wire,Rectangular Silk Covered Litz Wire |
||

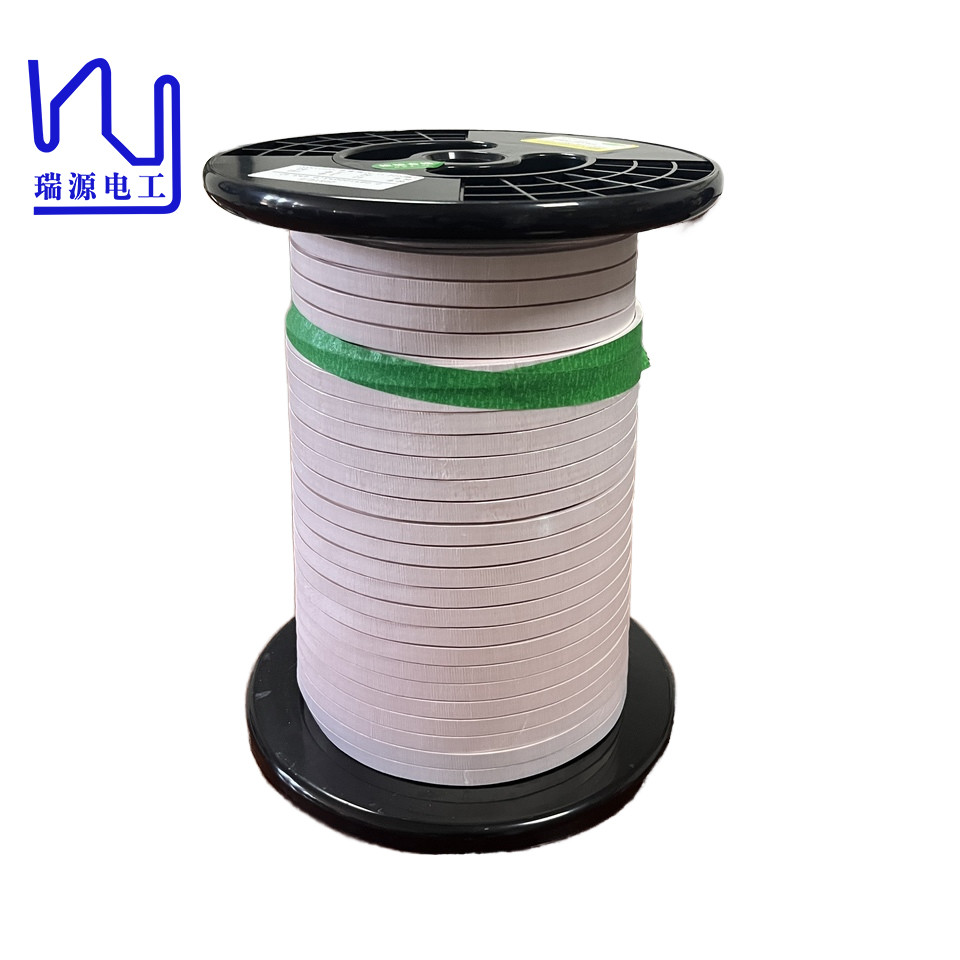

Rectangular 9.4mmx3.4mm 0.08mm*3000 Strands Silk Covered Litz Wire
The flat nylon covered litz wires are used in a wide range of applications and are an essential component in many industrial sectors. Its unique design and high-quality materials make it particularly suitable for use in transformers and other electromagnetic equipment where efficiency and reliability are critical. The low-profile configuration allows for better heat dissipation and reduced skin effect, which is critical in high-frequency applications. As the industry continues to push technology boundaries, our flat stranded wires are expected to play a key role in the development of advanced electrical systems.
|
Outgoing test of 0.08x1000 flat nylon served litz wrie |
||
|
Spec: 2USTC-F |
Model:0.08x3000x3(9.4*3.4) |
|
|
Item |
Tech requirement |
Test value |
|
Single wire diameter mm |
0.087-0.103 |
0.089-0.091 |
|
Conductor diameter mm |
0.08(＋0.003-0.004) |
0.076-0.079 |
|
Width mm |
/ |
8.85-9.05 |
|
Thickness mm |
/ |
3.21-3.40 |
|
Resistance Ω/m |
≤0.001258 |
0.001221 |
|
Breakdown voltage V |
≥950 |
1100 |
|
Pinch |
Parallel |
Parallel |
|
No. Of strand |
3000 |
3000 |
