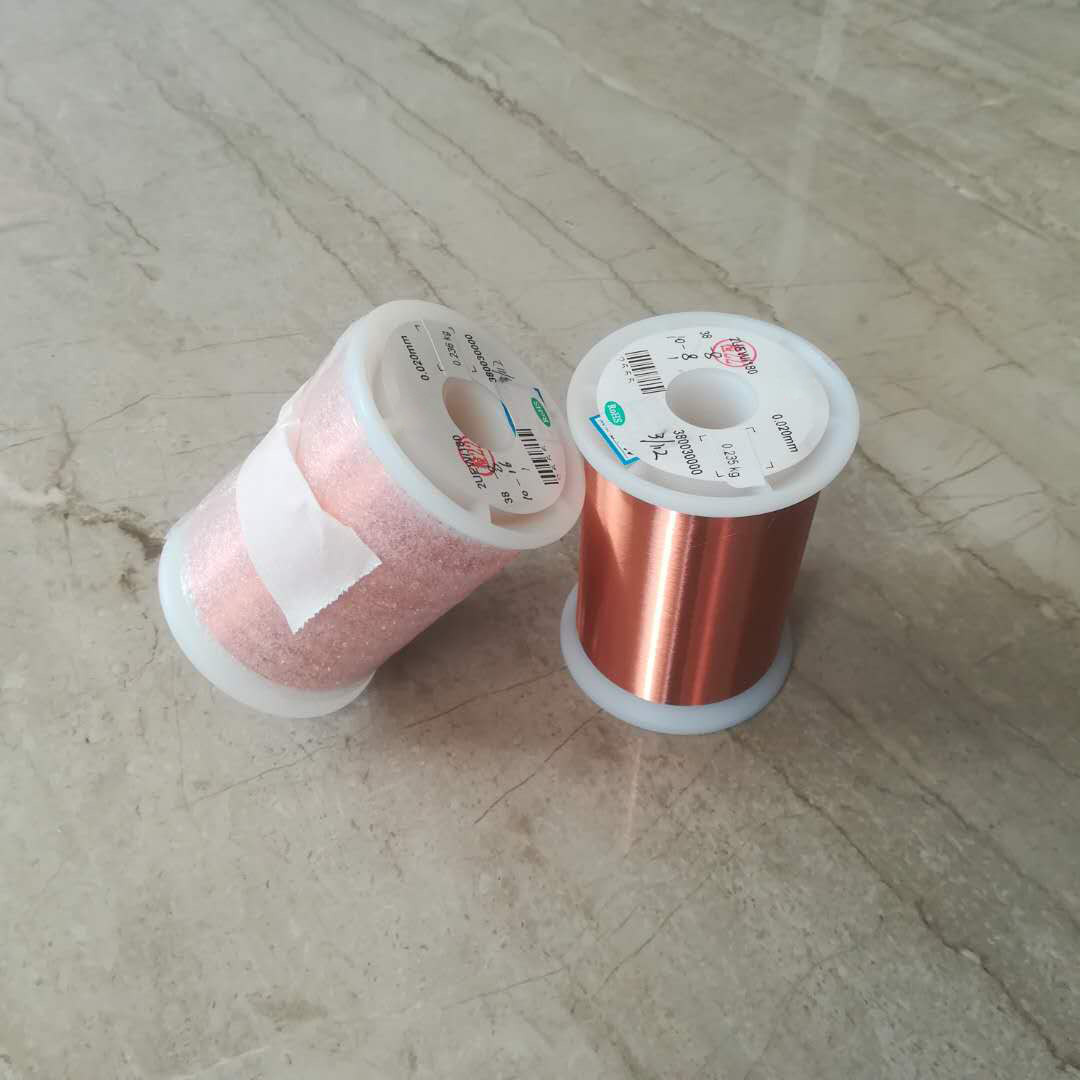

Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.02mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.02mm
Conductor Material:	Copper	Key Word:	Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil
Highlight:	Custom Enamelled Copper Wire , Solderable Winding Enamelled Copper Wire , Electronic Products Enamelled Copper Wire

Product Description

Custom Enamelled Copper Wire Solderable Winding Wire For Electronic Products

Size range from 0.012mm-0.8mm, class 155/ class 180/class 200/ class 220 widely used in transformer, motor and other electric devices.We offer samples, around 10-30kg/spool.

We are one of the pioneers in producing super thin enameled wires below 0.03mm in China. We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.

2UEW155 0.02mm
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.02±0.001	0.020	0.030
Overall diameter	0.022-0.024	0.0230	0.0230
Elongation	≥ 8%	10	10
Enamel continuity	≤ 8hole/5m	1	0
Breakdown voltage	≥130V	212	247
Electrical Resistance	≤60.810Q /m	56.812	56.403
Adhesive	No crack		OK
Heat Shock	200±5 ℃/30min no crack		OK
Solder Ability	390℃±5C/2S Smooth		OK
