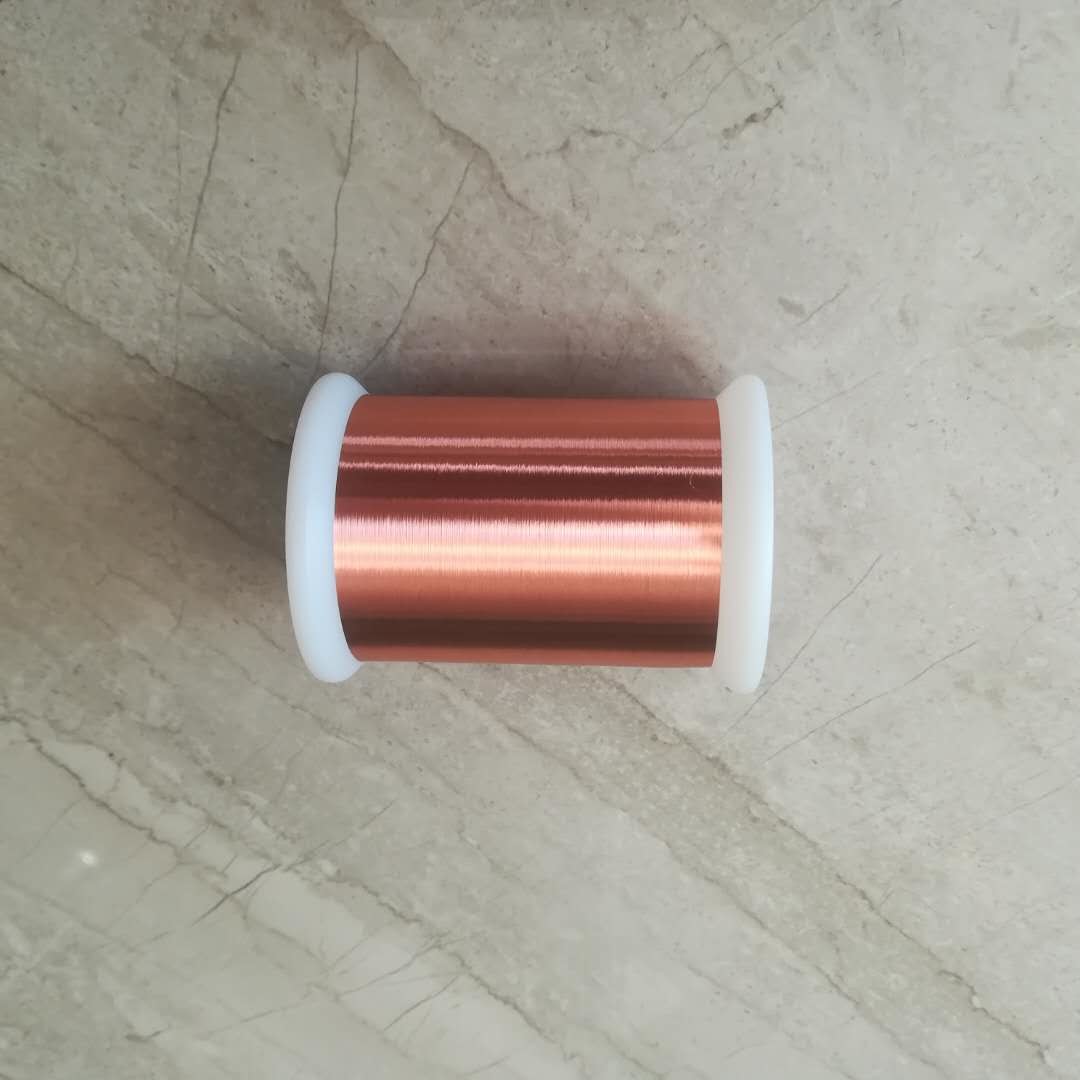

Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.02mm

Minimum Order Quantity:	5 kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.02mm
Conductor Material:	Copper	Key Word:	Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil
Highlight:	Polyurethanes Enamelled Winding Wire , Custom Factory Price Enamelled Winding Wire , Coil Enamelled Winding Wire

Product Description

Custom Factory Price Polyurethanes Enamelled Winding Wire For Coil

Features:

1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others

2UEW155 0.02mm
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.02±0.001	0.020	0.030
Overall diameter	0.022-0.024	0.0230	0.0230
Elongation	≥ 8%	10	10
Enamel continuity	≤ 8hole/5m	1	0
Breakdown voltage	≥130V	212	247
Electrical Resistance	≤60.810Q /m	56.812	56.403
Adhesive	No crack		OK
Heat Shock	200±5 ℃/30min no crack		OK
Solder Ability	390℃±5C/2S Smooth		OK
