UL Certification With Insulation Layer Enameled Round Copper Wire For Winding Coil

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.02mm
Minimum Order Quantity: 5 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: UL Certification With Insulation Layer Enameled Round Copper Wire For Winding Coil Thermal Rating: 155
Insulation Material: Polyurethane Diameter: 0.02mm
Conductor Material: Copper Key Word: UL Certification With Insulation Layer Enameled Round Copper Wire For Winding Coil
Highlight:

Winding Coil Enameled Round Copper Wire

,

Enameled Round Copper Wire For Winding

,

Insulation Layer Enameled Round Copper Wire


Product Description

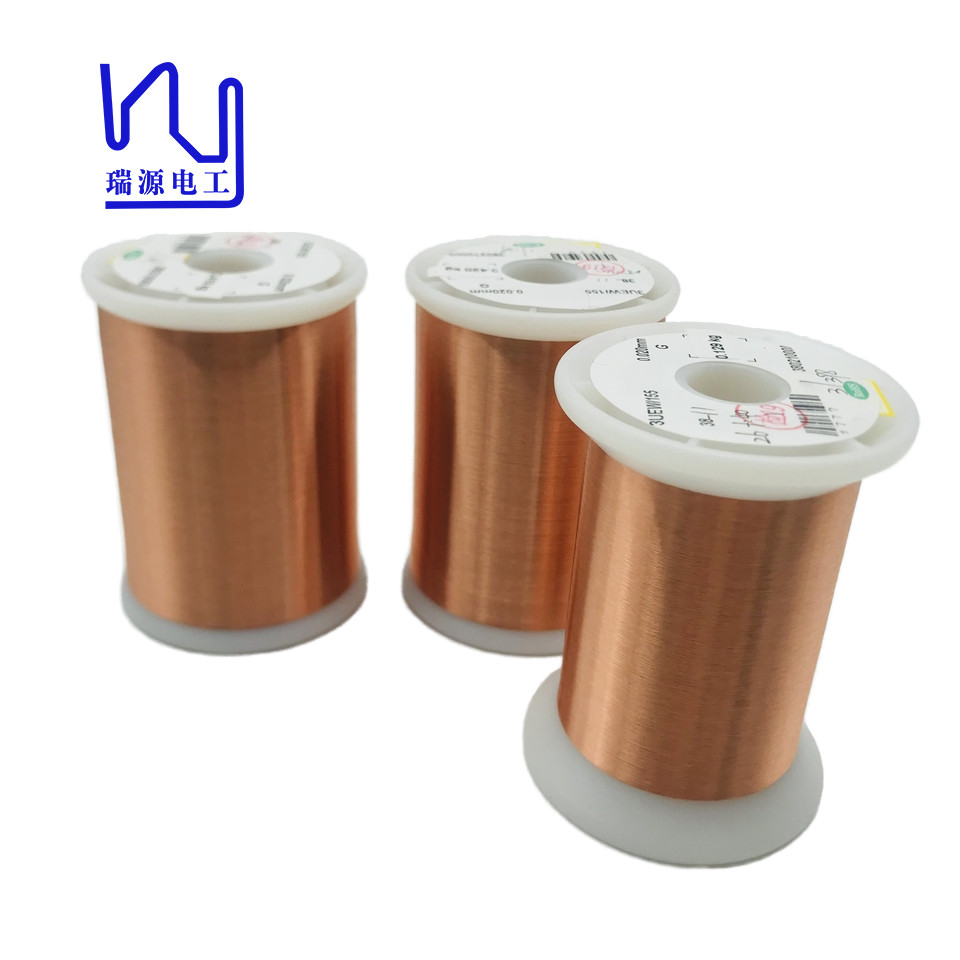

UL Certification With Insulation Layer Enameled Round Copper Wire For Winding Coil



Our ultra-fine enameled copper wire is more than just a product; it is a tailor-made solution for precision engineering needs. Its ultra-fine diameter, excellent heat resistance and versatile applications make it the first choice of manufacturers and engineers. Whether you are winding precision components or integrating advanced technology into your designs, our ultra-fine enameled copper wire will deliver the performance and reliability you need. Experience the difference precision makes - choose our ultra-fine enameled copper wire for your next project and take your engineering capabilities to new heights.





2UEW155 0.02mm

Characteristics Technical requests Test Results
Sample1 Sample 2
Surface Good OK OK
Bare Wire Diameter 0.02±0.001 0.020 0.030
Overall diameter 0.022-0.024 0.0230 0.0230
Elongation ≥ 8% 10 10
Enamel continuity ≤ 8hole/5m 1 0
Breakdown voltage ≥130V 212 247
Electrical Resistance ≤60.810Q /m 56.812 56.403
Adhesive No crack   OK
Heat Shock 200±5 ℃/30min no crack   OK
Solder Ability 390℃±5C/2S Smooth   OK
