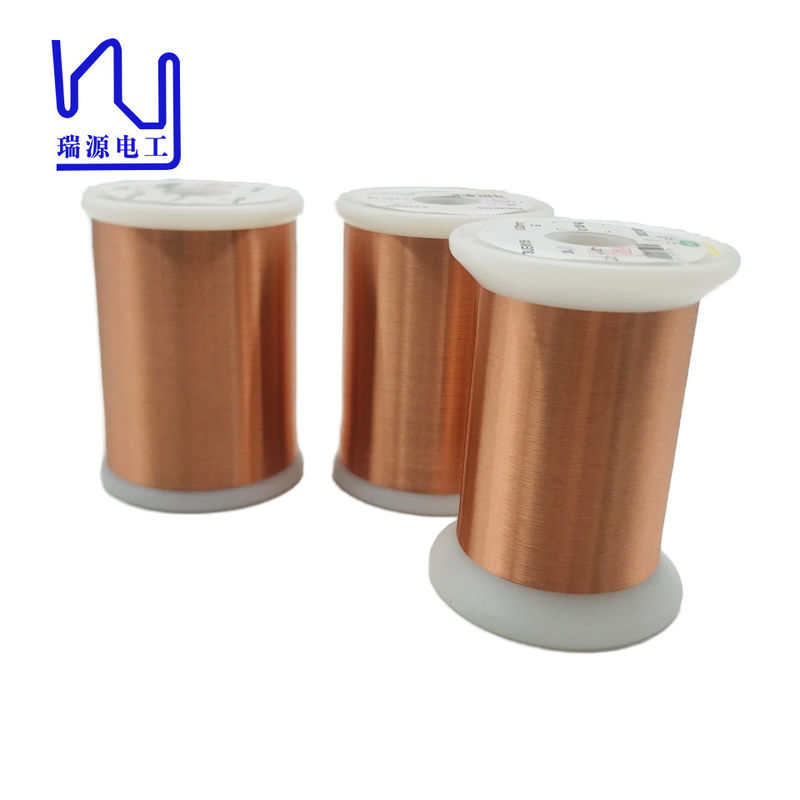

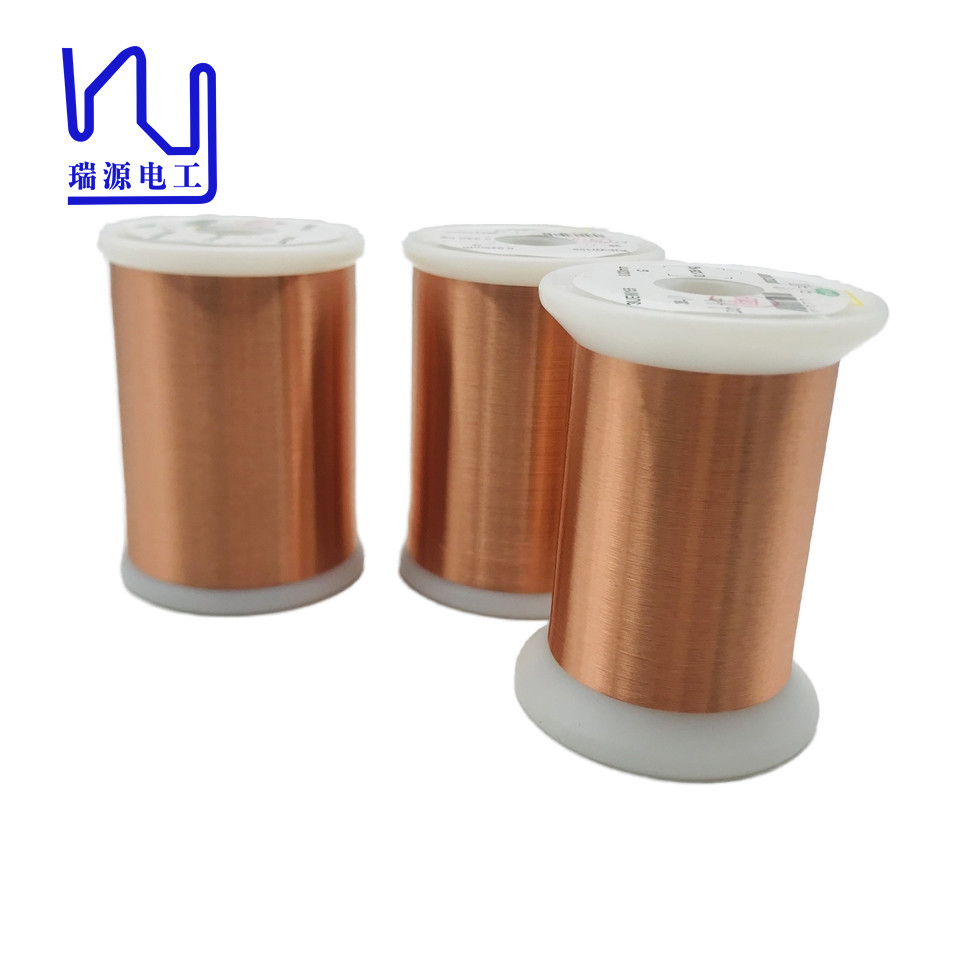

Class 155/180 0.02mm Ultra Fine Magnet Wire For Watch Coils

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.02mm
Minimum Order Quantity: 5 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Class 155/180 0.02mm Ultra Fine Magnet Wire For Watch Coils Thermal Rating: 155
Insulation Material: Polyurethane Diameter: 0.02mm
Conductor Material: Copper Key Word: Class 155/180 0.02mm Ultra Fine Magnet Wire For Watch Coils
Highlight:

Ultra fine Magnet Wire

,

Watch Coils Magnet Wire

,

0.02mm Magnet Wire


Product Description

Class 155/180 0.02mm Ultra fine magnet wire for watch coils

Our ultra-fine wire is more than just a product; It demonstrates our commitment to innovation and excellence. Our ultra-fine wire diameters range from 0.012 mm to 0.08 mm, leading the industry and setting the benchmark for quality and performance. This particular series enables a variety of applications, making it ideal for winding precision components. Whether you're crafting complex watch mechanisms, high-fidelity headphone cables, or other delicate electronic devices, our ultra-fine enameled copper wire delivers the reliability and precision you need.





2UEW155 0.02mm

Characteristics Technical requests Test Results
Sample1 Sample 2
Surface Good OK OK
Bare Wire Diameter 0.02±0.001 0.020 0.030
Overall diameter 0.022-0.024 0.0230 0.0230
Elongation ≥ 8% 10 10
Enamel continuity ≤ 8hole/5m 1 0
Breakdown voltage ≥130V 212 247
Electrical Resistance ≤60.810Q /m 56.812 56.403
Adhesive No crack   OK
Heat Shock 200±5 ℃/30min no crack   OK
Solder Ability 390℃±5C/2S Smooth   OK
