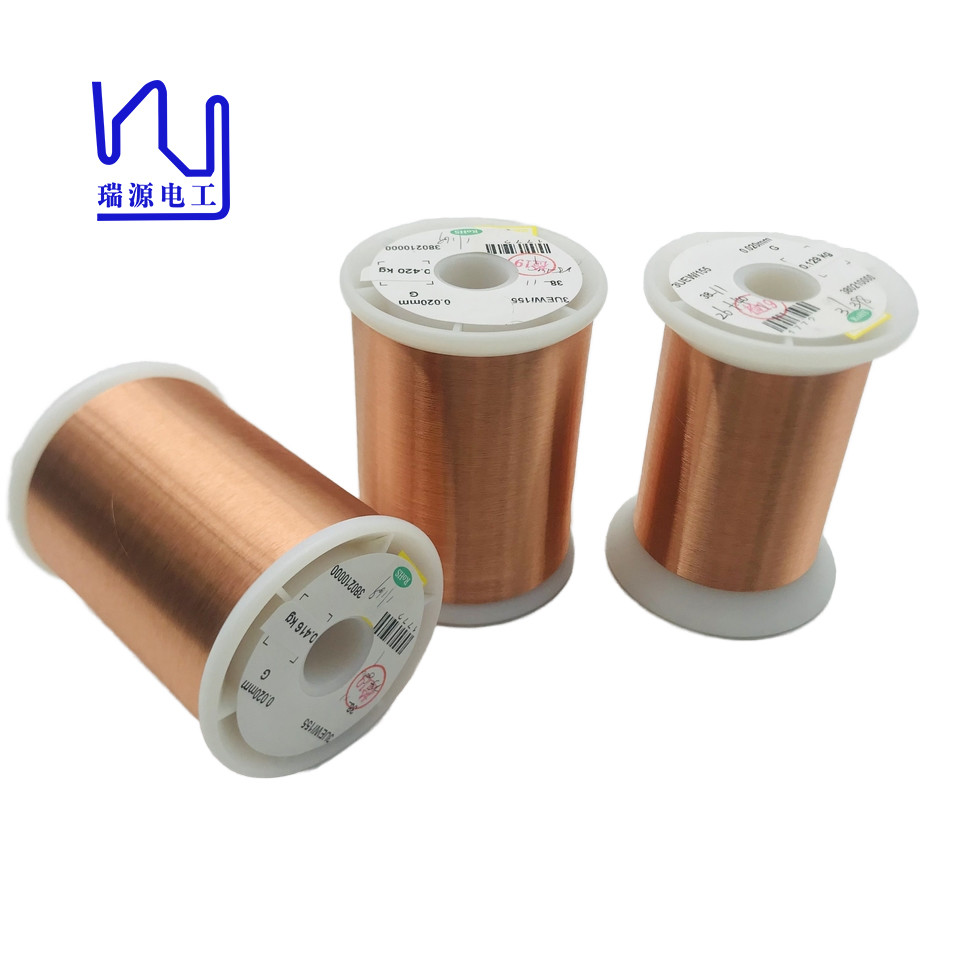

2UEW 155 0.02mm Super Thin Magnetic Copper Wire Enameled Wire For Winding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.02mm
Minimum Order Quantity: 5 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 2UEW 155 0.02mm Super Thin Magnetic Copper Wire Enameled Wire For Winding Thermal Rating: 155
Insulation Material: Polyurethane Diameter: 0.02mm
Conductor Material: Copper Key Word: 2UEW 155 0.02mm Super Thin Magnetic Copper Wire Enameled Wire For Winding
Highlight:

Winding Enameled Wire

,

Super Thin Enameled Wire

,

0.02mm Enameled Wire


Product Description

2UEW 155 0.02mm Super Thin Magnetic Copper Wire Enameled Wire For Winding

In the fields of precision component manufacturing, material selection can significantly impact performance and reliability. We are proud to introduce our ultra-fine enameled copper wire with an impressive diameter of just 0.02 mm. This solderable enameled copper wire is designed to meet the stringent requirements of a variety of applications, ensuring your project meets the highest standards of quality and efficiency.





2UEW155 0.02mm

Characteristics Technical requests Test Results
Sample1 Sample 2
Surface Good OK OK
Bare Wire Diameter 0.02±0.001 0.020 0.030
Overall diameter 0.022-0.024 0.0230 0.0230
Elongation ≥ 8% 10 10
Enamel continuity ≤ 8hole/5m 1 0
Breakdown voltage ≥130V 212 247
Electrical Resistance ≤60.810Q /m 56.812 56.403
Adhesive No crack   OK
Heat Shock 200±5 ℃/30min no crack   OK
Solder Ability 390℃±5C/2S Smooth   OK
