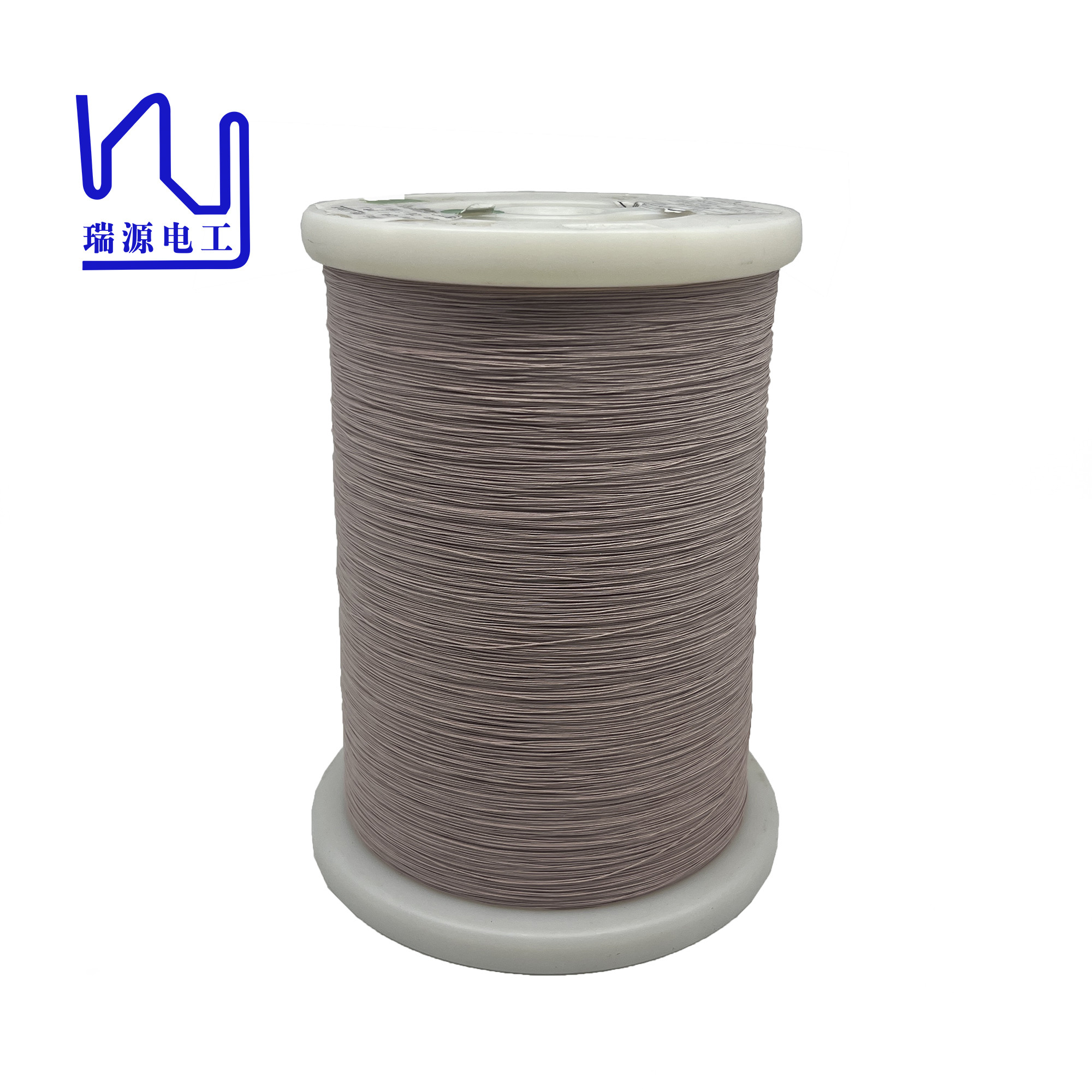

USTC155/180 0.08mm*10 Insulated Silk Covered Copper Litz Wire For High Frequency Transformer Windings

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTCF litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	TT/Paypal
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Single Wire:	0.08mm	Number Of Strands:	10
Jacket:	Nylon	Color:	Natural
Conductor Material:	Silver	Key Word:	USTC155/180 0.08mm*10 Insulated Silk Covered Copper Litz Wire For High Frequency Transformer Windings
Product Name:	USTC155/180 0.08mm*10 Insulated Silk Covered Copper Litz Wire For High Frequency Transformer Windings
Highlight:	High Frequency Transformer Windings Litz Wire , USTC155/180 Litz Wire , 0.08mm high frequency copper litz wire

Product Description

USTC155/180 0.08mm*10 Insulated Silk Covered Copper Litz Wire For High Frequency Transformer Windings

In the industrial field, our silk covered litz wires are widely used, especially in the fields of wireless charging systems, charging piles and household appliances. The wire's exceptional durability and performance make it ideal for these applications, ensuring reliable power transfer and longevity.

In wireless charging systems, the wire's high-quality construction facilitates efficient power transfer, while in charging stations, its durability and flexibility make it a reliable choice in demanding environments. Additionally, in home appliances, the customizable nature of wires can be seamlessly integrated into various products, improving their overall performance and reliability.

Description Conductor diameter*Strand number		1USTC-F 0.08*10
Single wire	Conductor diameter(mm)	0.080
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.007
	Maximal overall diameter (mm)	0.120
	Thermal Class (℃)	155
Strand Composition	Strand number	10
	Pitch(mm)	29±5
	Stranding direction	S
Insulation layer	Category	Polyester
	UL	/
	Material specs(mm*mm or D)	250
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D (mm)	0.45
	Max pin holes 个/6m	20
	Max resistance (Ω/Km at20℃)	377.5
	Mini breakdown voltage (V )	2000
