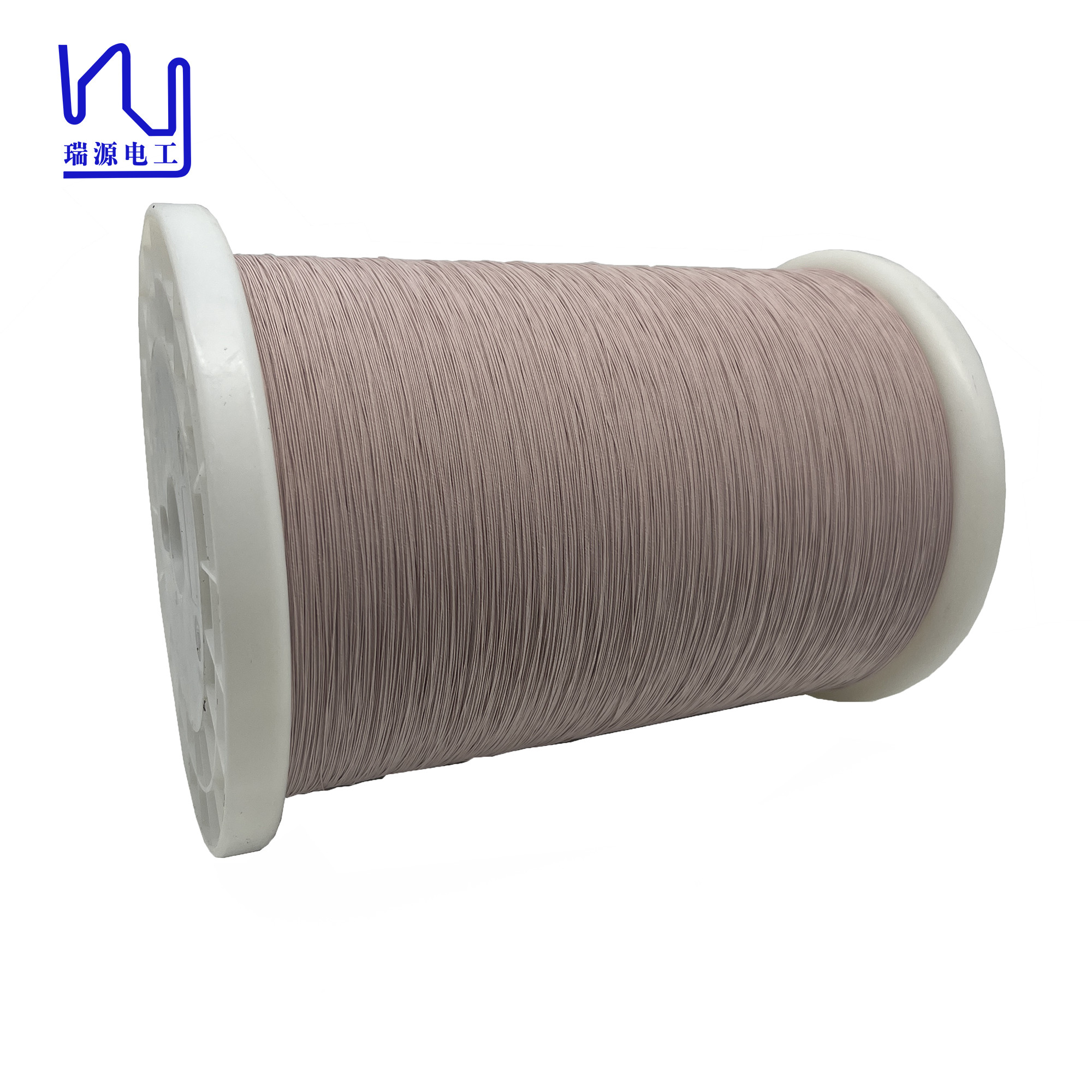

2USTC-F 0.08mmx10 Insulated Silk Covered Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTCF litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	TT/Paypal
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Single Wire:	0.08mm	Number Of Strands:	10
Jacket:	Nylon	Color:	Natural
Conductor Material:	Silver	Key Word:	2USTC-F 0.08mmx10nsulated Silk Covered Copper Litz Wire
Product Name:	2USTC-F 0.08mmx10nsulated Silk Covered Copper Litz Wire
Highlight:	0.08mmx10 Silk Covered Copper Litz Wire , Insulated Copper Litz Wire , 2USTC-F Copper Litz Wire

Product Description

2USTC-F 0.08mmx10nsulated Silk Covered Copper Litz Wire

This specialized silk covered litz wire consist of is 10 strands of 0.08mm enameled copper wire and covered with nylon yarn to ensure superior durability and performance.

At our factory, we offer low-volume customization, allowing you to customize wire to your exact specifications. With competitive starting prices and a minimum order quantity of 10kg, this wire is suitable for businesses of all size

Description Conductor diameter*Strand number		1USTC-F 0.08*10
Single wire	Conductor diameter(mm)	0.080
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.007
	Maximal overall diameter (mm)	0.120
	Thermal Class (℃)	155
Strand Composition	Strand number	10
	Pitch(mm)	29±5
	Stranding direction	S
Insulation layer	Category	Polyester
	UL	/
	Material specs(mm*mm or D)	250
	Times of Wrapping	1
	Overlap(%) or thickness(mm),mini	0.02
	Wrapping direction	S
Characteristics	Max O. D (mm)	0.45
	Max pin holes 个/6m	20
	Max resistance (Ω/Km at20℃)	377.5
	Mini breakdown voltage (V )	2000
