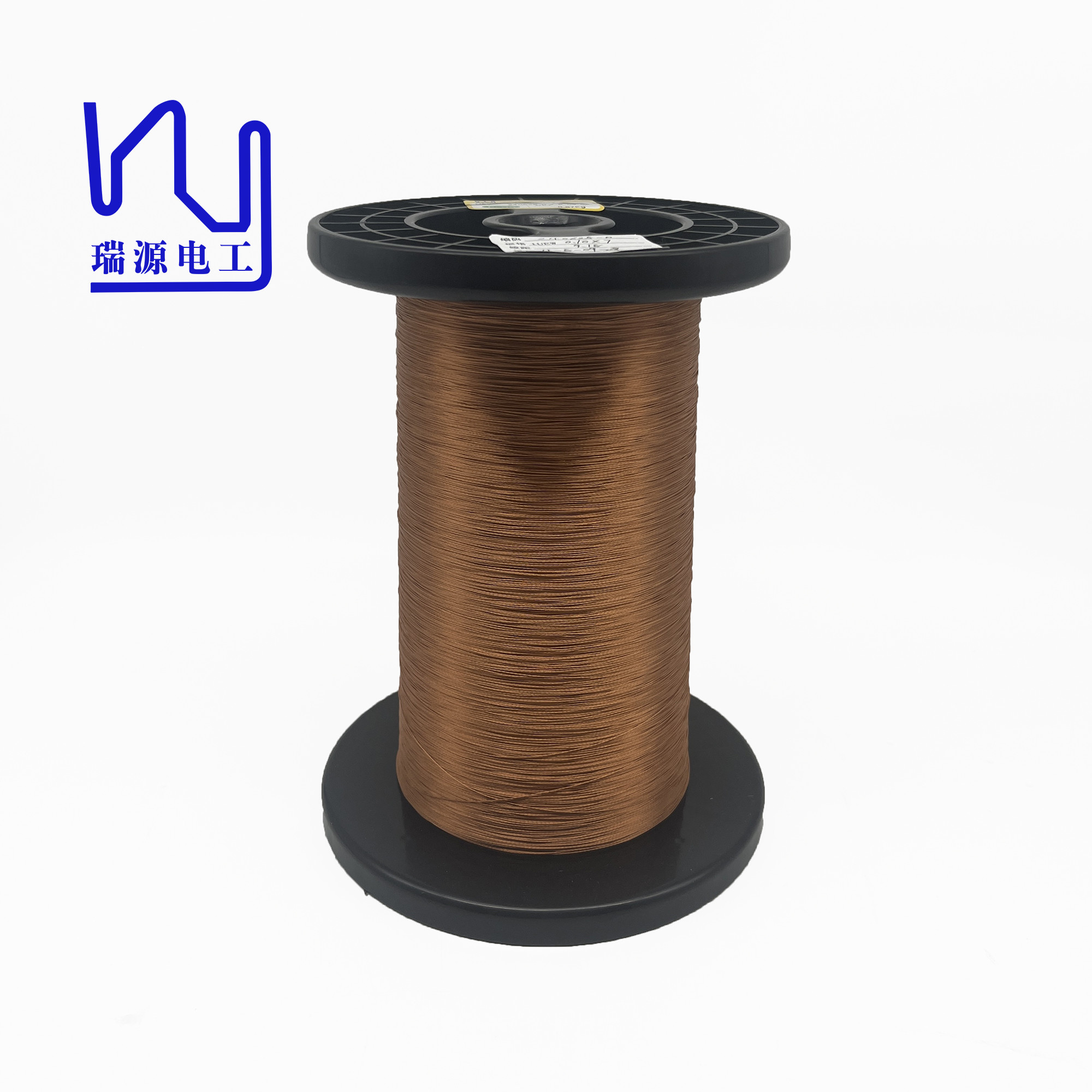

Enamel Insulation Copper Litz Wire For High Temperature Environments

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Diameter 0.04 - 0.30mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

No. Of Strands:	7	Pinhole:	<7
Product Name:	Enamel Insulation Copper Litz Wire For High Temperature Environments	Rated Temperature:	180
Single Wire Outer Diameter:	0.118-0.14	Breakdown Voltage:	>2000V
Insulation:	Enamel	Pitch(mm):	9.18±15%
Key Word:	Enamel Insulation Copper Litz Wire For High Temperature Environments
Highlight:	High Temperature Copper Litz Wire , Enamel Insulation Copper Litz Wire , High Temperature Environments Copper Litz Wire

Product Description

Enamel Insulation Copper Litz Wire for High Temperature Environments

在右侧插入单元格

The self-adhesive properties of this litz wire make it an excellent choice for applications requiring secure bonding. Whether used on transformers, inductors or other electrical components, self-adhesive properties ensure a strong and durable connection, thereby increasing the overall reliability and performance of the end product. This wire is designed to meet the highest quality and durability standards, making it a trusted solution for demanding applications across industries.

Item	Standard	Test value
Apperance	Smooth	OK	OK	OK
Single wire outer diameter	0.118-0.14	0.120	0.122	0.123
Conductor diameter	0.100±0.008	0.10	0.10	0.10
Construction (strands*single wire)	7/0.10	7/0.10	7/0.10	7/0.10
Stranding direction	S	S	S	S
Pitch(mm)	9.18±15%	9.18	9.18	9.18
Pinhole	<7	0	1	0
Breakdown voltage	>2000V	3900V	3800V	4000V
