| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.22mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Factory Price Enamelled Copper Wire For Relays | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.22mm |
| Conductor Material: | Copper | Key Word: | Custom Factory Price Enamelled Copper Wire For Relays |
| High Light: | Custom Enamelled Copper Wire,enamelled copper wire For Relays,enamelled wire For Relays |
||

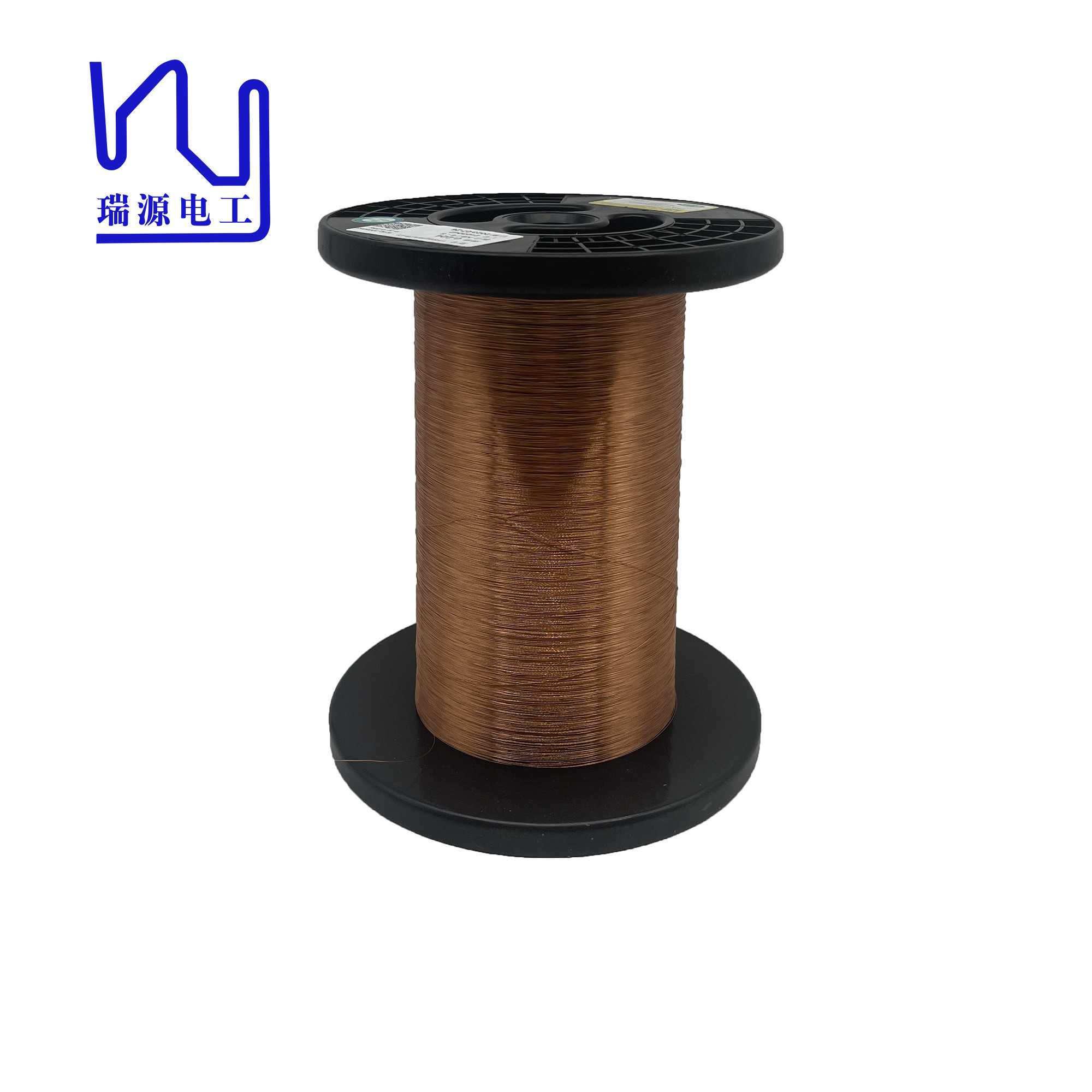

Custom Factory Price Enamelled Copper Wire For Relays
Enameled wire is usually used to make electrical equipment and electronic products such as electromagnetic coils, transformers, and motors. Due to its excellent insulation and conductive properties, it is widely used in various electrical equipment and electronic products.
This is a customized 0.22mm enameled copper wire with a temperature resistance of 155 degrees and good welding performance. Enameled copper wire is a common electrical material, widely used in motors, transformers, windings and other fields.
| Product |
Custom Factory Price Enamelled Copper Wire For Relays |
|
Key word |
Custom Factory Price Enamelled Copper Wire For Relays |
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Conductor Diameter | 0.220mm ±0.003mm | 0.221 | 0.221 | 0.221 |
| Thickness of Insulation | ≥ 0.016 mm | 0.022 | 0.023 | 0.022 |
| Overall Diameter | ≤ 0.248mm | 0.243 | 0.244 | 0.243 |
| DC Resistance | ≤ 0.466 Ω/m | 0.4478 | 0.4452 | 0.4466 |
| Elongation | ≥21% | 26.3 | 24.8 | 25.2 |
| Breakdown Voltage | ≥2200V | 4884 | 4945 | 4769 |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
