| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.075mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.075mm Ultra Fine Magnet Wire For Electronic Devices UL Approved | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.075mm |
| Conductor Material: | Copper | Key Word: | 0.075mm Ultra Fine Magnet Wire For Electronic Devices UL Approved |
| High Light: | Electronic Devices Magnet Wire,0.075mm Magnet Wire |
||

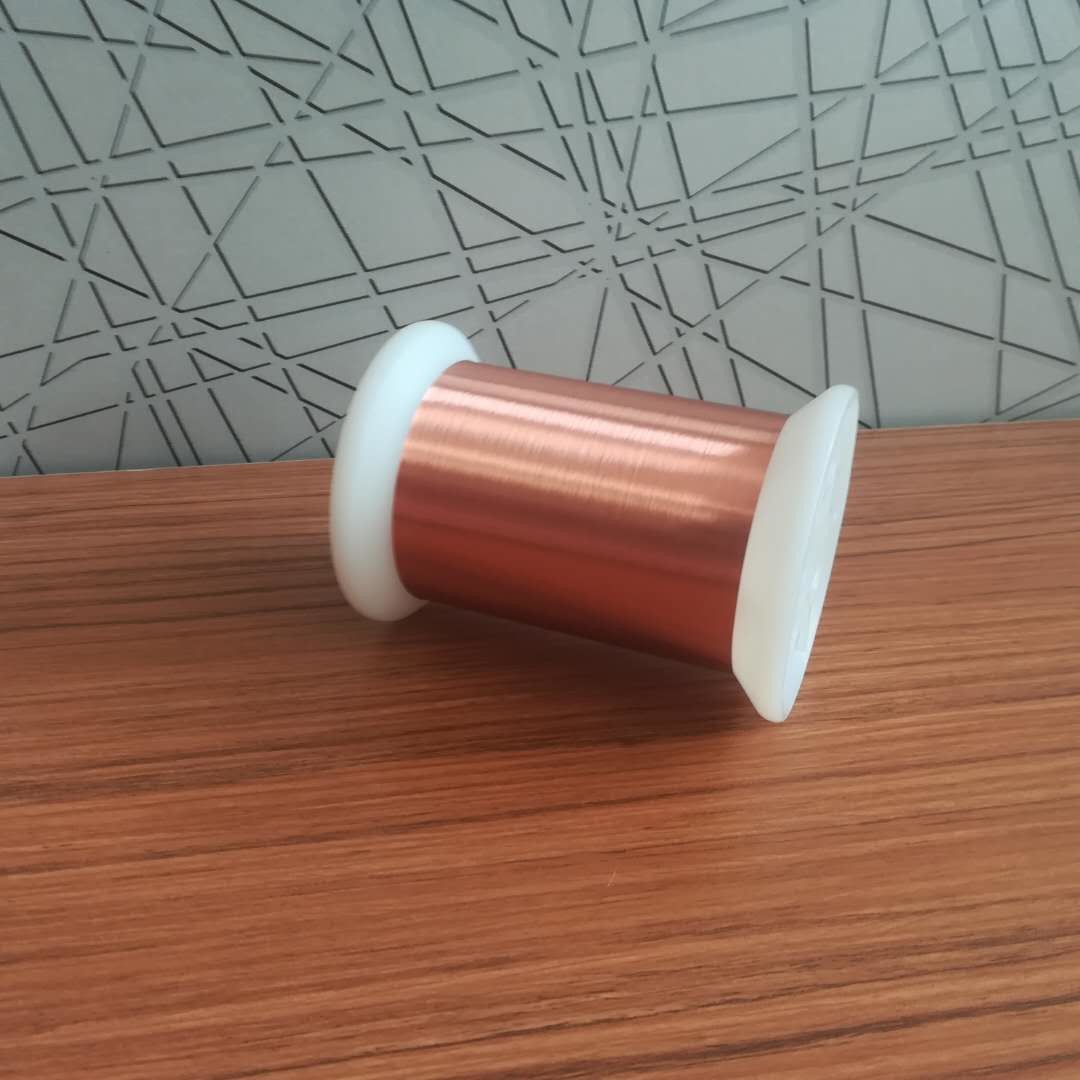

0.075mm Ultra Fine Magnet Wire For Electronic Devices UL Approved
Ultra-thin enameled copper wire has a variety of applications in electronic equipment.
Inductive components: Ultra-thin enameled copper wire is usually used to manufacture inductive components such as transformers, inductors and RFID antennas. They provide efficient electromagnetic field coupling and good electrical performance, making them suitable for use in a variety of power supply and communication circuits.
Sensors: This wire can also be used to make various sensors such as temperature sensors, pressure sensors, and displacement sensors. Ultra-thin enameled copper wire can provide high sensitivity and fast response, making it one of the ideal materials for manufacturing high-performance sensors.
Electric Motors: Ultra-thin enameled copper wire is also used in micromotors and micromotors. Due to its thin and strong insulation layer, this wire can provide good electrical insulation properties without increasing the size and weight of the coil, making it suitable for micro power equipment.
In general, ultra-thin enameled copper wire has a wide range of applications in the field of electronic equipment, including but not limited to inductive components, sensors and micro motors.
|
Test Items |
Requirements |
Test Data |
||
|
1st Sample |
2nd Sample |
3rd Sample |
||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
|
Conductor Diameter |
0.075mm ±0.002mm |
0.075 |
0.075 |
0.075 |
|
Thickness of Insulation |
≥ 0.008 mm |
0.010 |
0.010 |
0.010 |
|
Overall Diameter |
≤ 0.089 mm |
0.085 |
0.085 |
.085 |
|
DC Resistance |
≤ 4.119 Ω/m |
3.891 |
3.891 |
3.892 |
|
Elongation |
≥ 15% |
22.1 |
20.9 |
21.6 |
|
Breakdown Voltage |
≥550 V |
1868 |
2051 |
1946 |
|
Pin Hole |
≤ 5 faults/5m |
0 |
0 |
0 |
|
Adherence |
No cracks visible |
OK |
OK |
OK |
|
Cut-through |
230℃ 2min No breakdown |
OK |
OK |
OK |
|
Heat Shock |
200±5℃/30min No cracks |
OK |
OK |
OK |
|
Solderability |
390± 5℃ 2 Sec No slags |
OK |
OK |
OK |
|
