| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.045mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 45 AWG 0.045mm 2UEW155 Super Thin Magnet Winding Wire Enamel Insulated | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.045mm |
| Conductor Material: | Copper | Key Word: | 45 AWG 0.045mm 2UEW155 Super Thin Magnet Winding Wire Enamel Insulated |
| High Light: | Copper Magnet Wire 2UEW155,Super Thin Magnet Winding Wire,Enamel Insulated Magnet Winding Wire |
||

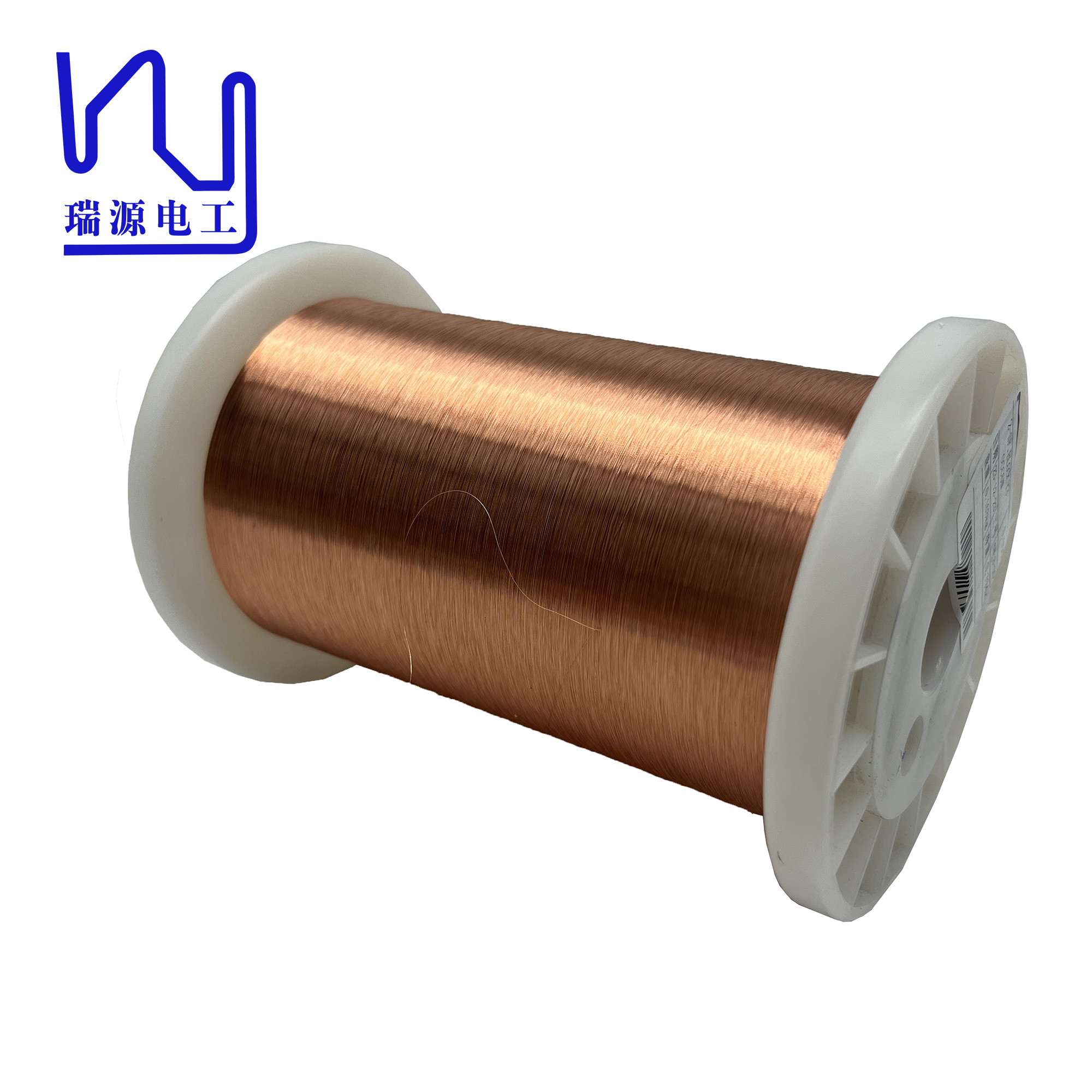

45 AWG 0.045mm 2UEW155 Super Thin Magnet Winding Wire Enamel Insulated
Thin enameled copper wire plays an important role in the field of medical devices.
The ultra-thin enameled copper wire has excellent conductive and insulating properties and has been widely used. Its small diameter makes it suitable for micro electronic components, sensors and precision wiring in medical equipment, playing an important role in improving the performance and reliability of medical equipment.
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Conductor Diameter | 0.045mm ±0.001mm | 0.0450 | 0.0450 | 0.0450 |
| Thickness of Insulation | ≥ 0.006 mm | 0.0090 | 0.0080 | 0.0090 |
| Overall Diameter | ≤ 0.056 mm | 0.0540 | 0.0530 | 0.0540 |
| DC Resistance | ≤ 11.339 Ω/m | 10.740 | 10.698 | 10.743 |
| Elongation | ≥ 11% | 22 | 20 | 21 |
| Breakdown Voltage | ≥350 V | 1764 | 1567 | 1452 |
| Pin Hole | ≤ 5(faults)/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
