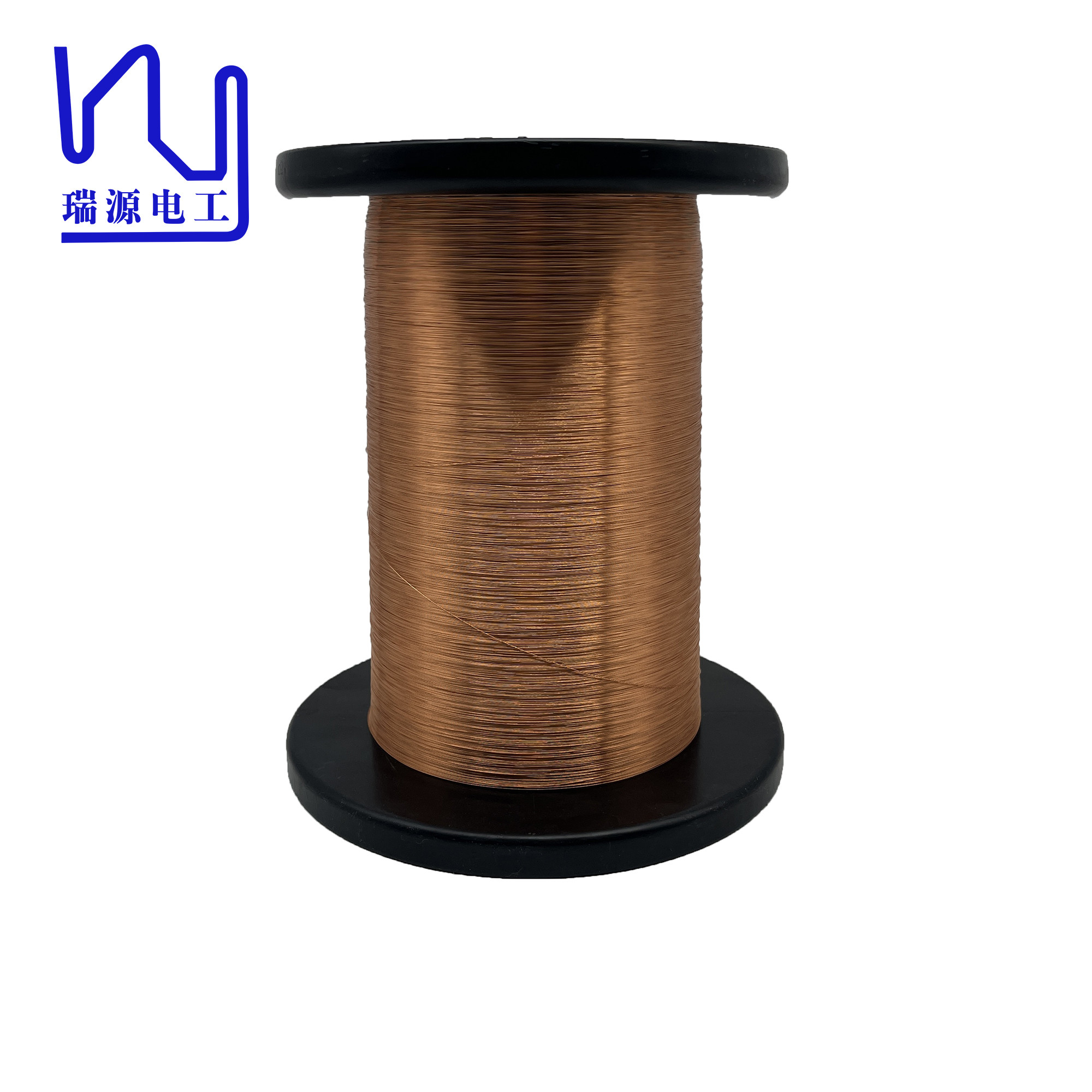

Enamelled Round Copper Wire Insulated Solid IEC/JIS/NEMA Polyurethane 155/180

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.28mm

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Enamelled Round Copper Wire Insulated Solid IEC/JIS/NEMA Polyurethane 155/180	Thermal Rating:	155
Insulation Material:	UEW	Diameter:	0.28mm
Conductor Material:	Copper	Key Word:	Enamelled Round Copper Wire Insulated Solid IEC/JIS/NEMA Polyurethane 155/180
Highlight:	Round Polyurethane Copper Magnet Wire , Insulated Enamelled Round Copper Wire , Solid Enamelled Round Copper Wire

Product Description

Enamelled Round Copper Wire Insulated Solid IEC/JIS/NEMA Polyurethane 155/180

Copper's high electrical conductivity ensures minimal energy losses and optimal energy transfer within the motor, resulting in increased efficiency and lower operating costs.

We are engaged in offering a wide range of Enameled Copper Wire to meet the needs of different industries. Our products range in diameter from 0.012mm to 1.2mm to meet a variety of motor sizes and specifications.

Product	Enamelled Round Copper Wire Insulated Solid IEC/JIS/NEMA Polyurethane 155/180
Key word	Enamelled Round Copper Wire Insulated Solid IEC/JIS/NEMA Polyurethane 155/180

Test Items	Requirements	Test Data
Test Items	Requirements	1st Sample	2nd Sample	3rd Sample
Appearance	Smooth & Clean	OK	OK	OK
Conductor Diameter	0.280mm ±0.004mm	0.281	0.281	0.281
Thickness of Insulation	≥ 0.025 mm	0.031	0.030	0.030
Overall Diameter	≤ 0.316mm	0.312	0.311	0.311
DC Resistance	≤ 0.288Ω/m	0.2752	0.2766	0.2755
Elongation	≥ 23%	34.7	32.2	33.5
Breakdown Voltage	≥2300V	5552	5371	5446
Pin Hole	≤5(faults)/5m	0	0	0
Adherence	No cracks visible	OK	OK	OK
Cut-through	200℃ 2min No breakdown	OK	OK	OK
Heat Shock	175±5℃/30min No cracks	OK	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK	OK
Insulation Continuity	/	/	/	/
