| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.28mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.28mm 2UEW 0.28mm Magnetic Winding Wire Enameled Copper Wire For Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.28mm |
| Conductor Material: | Copper | Key Word: | 0.28mm 2UEW 0.28mm Magnetic Winding Wire Enameled Copper Wire For Motor |
| High Light: | Motor Enamelled Copper Wire,0.28mm Magnetic Winding Wire,Enameled Copper Magnetic Winding Wire |
||

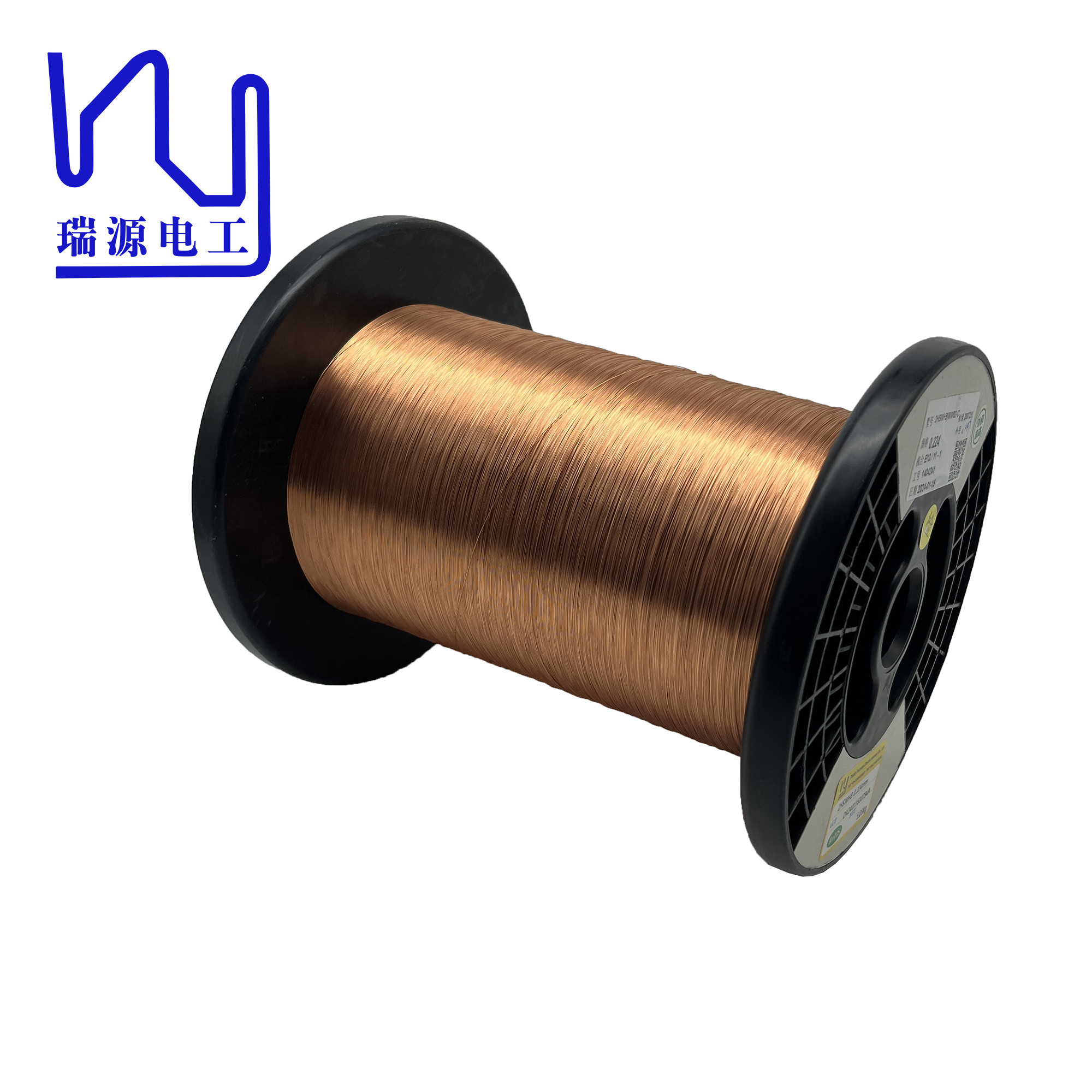

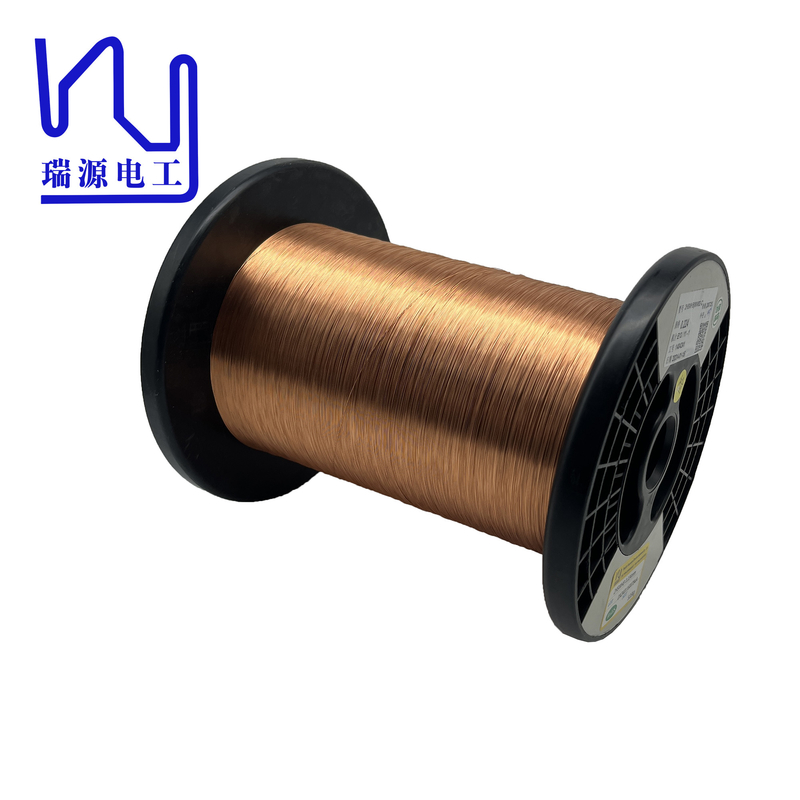

0.28mm 2UEW 0.28mm Magnetic Winding Wire Enameled Copper Wire For Motor
Enameled copper wire, also known as enameled wire, is an important component in the manufacture of motors, transformers and other electromagnetic equipment. Its flexibility and excellent electrical conductivity make it indispensable in the production of high-performance motors, especially in motor windings.
| Product |
0.28mm 2UEW 0.28mm Magnetic Winding Wire Enameled Copper Wire For Motor |
|
Key word |
0.28mm 2UEW 0.28mm Magnetic Winding Wire Enameled Copper Wire For Motor |
|
Test Items |
Requirements |
Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
|
Conductor Diameter |
0.280mm ±0.004mm |
0.281 |
0.281 |
0.281 |
| Thickness of Insulation | ≥ 0.025 mm | 0.031 | 0.030 | 0.030 |
| Overall Diameter | ≤ 0.316mm | 0.312 | 0.311 | 0.311 |
| DC Resistance | ≤ 0.288Ω/m | 0.2752 | 0.2766 | 0.2755 |
| Elongation | ≥ 23% | 34.7 | 32.2 | 33.5 |
| Breakdown Voltage | ≥2300V | 5552 | 5371 | 5446 |
| Pin Hole | ≤5(faults)/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
| Insulation Continuity | / | / | / | / |
