| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom 0.012mm-0.10mm UEW Enameled Copper Wire Solid Conductor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | Custom 0.012mm-0.10mm UEW Enameled Copper Wire Solid Conductor |
| High Light: | 0.10mm Enamelled Copper Wire,Solid Conductor Enameled Copper Wire,Custom Enameled Copper Wire |
||

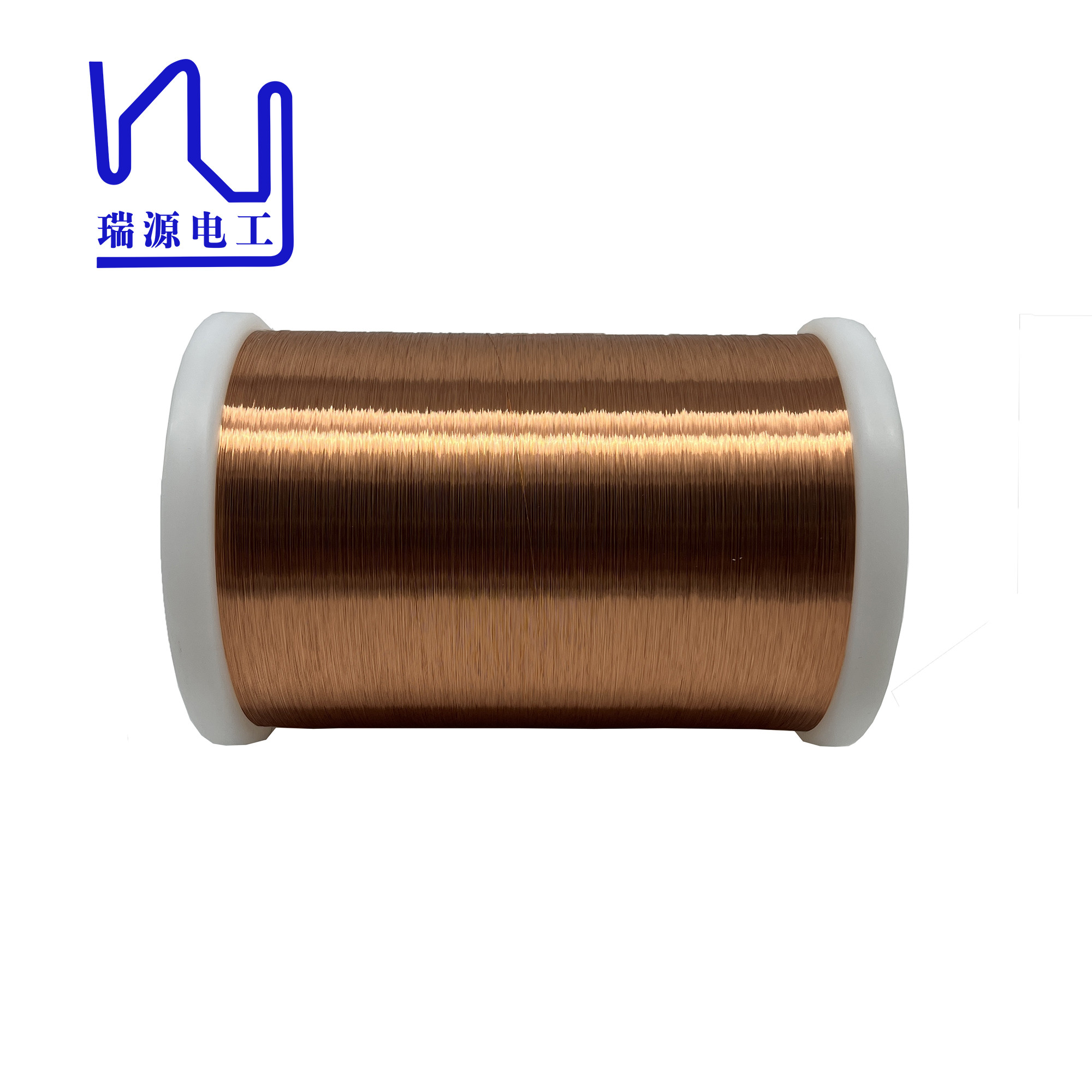

Custom 0.012mm-0.10mm UEW enameled copper wire solid conductor
One of the main advantages of enameled copper wire is its insulating properties. Thin enamel coatings on copper wires provide electrical insulation while allowing coils and other components to be compactly wound in microelectronic devices.
This insulation also helps prevent short circuits and electrical interference, ensuring electronics run smoothly and efficiently.
| Product |
Custom 0.012mm-0.10mm UEW enameled copper wire solid conductor |
|
Key word |
Custom 0.012mm-0.10mm UEW enameled copper wire solid conductor |
|
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
1st Sample |
2nd Sample |
3rd Sample |
||||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
OK |
|
|
Conductor Diameter |
0.090± |
0.002 |
0.090 |
0.090 |
0.090 |
OK |
|
Thickness of Insulation |
≥ 0.010 mm |
0.013 |
0.012 |
0.013 |
OK |
|
|
Overall Diameter |
≤ 0.107 mm |
0.103 |
0.102 |
0.103 |
OK |
|
|
DC Resistance |
≤ 2.835Ω/m |
2.702 |
2.729 |
2.716 |
OK |
|
|
Elongation |
≥ 17 % |
22.5 |
23.4 |
21.9 |
OK |
|
|
Breakdown Voltage |
≥ 700 V |
2081 |
2143 |
1986 |
OK |
|
|
Pin Hole |
≤ 5 Faults/5m |
0 |
0 |
0 |
OK |
|
|
Continuity |
≤12Faults/30m |
0 |
0 |
0 |
OK |
|
|
Test Items |
Technical Requests |
Results |
||||
|
Adhesive |
Coating layer is good |
OK |
||||
|
Cut-through |
200℃ 2mins no breakdown |
OK |
||||
|
Heat Shock |
175±5℃/30min no crack |
OK |
||||
|
Solder Ability |
390± 5℃ 2Sec Smooth |
OK |
||||
