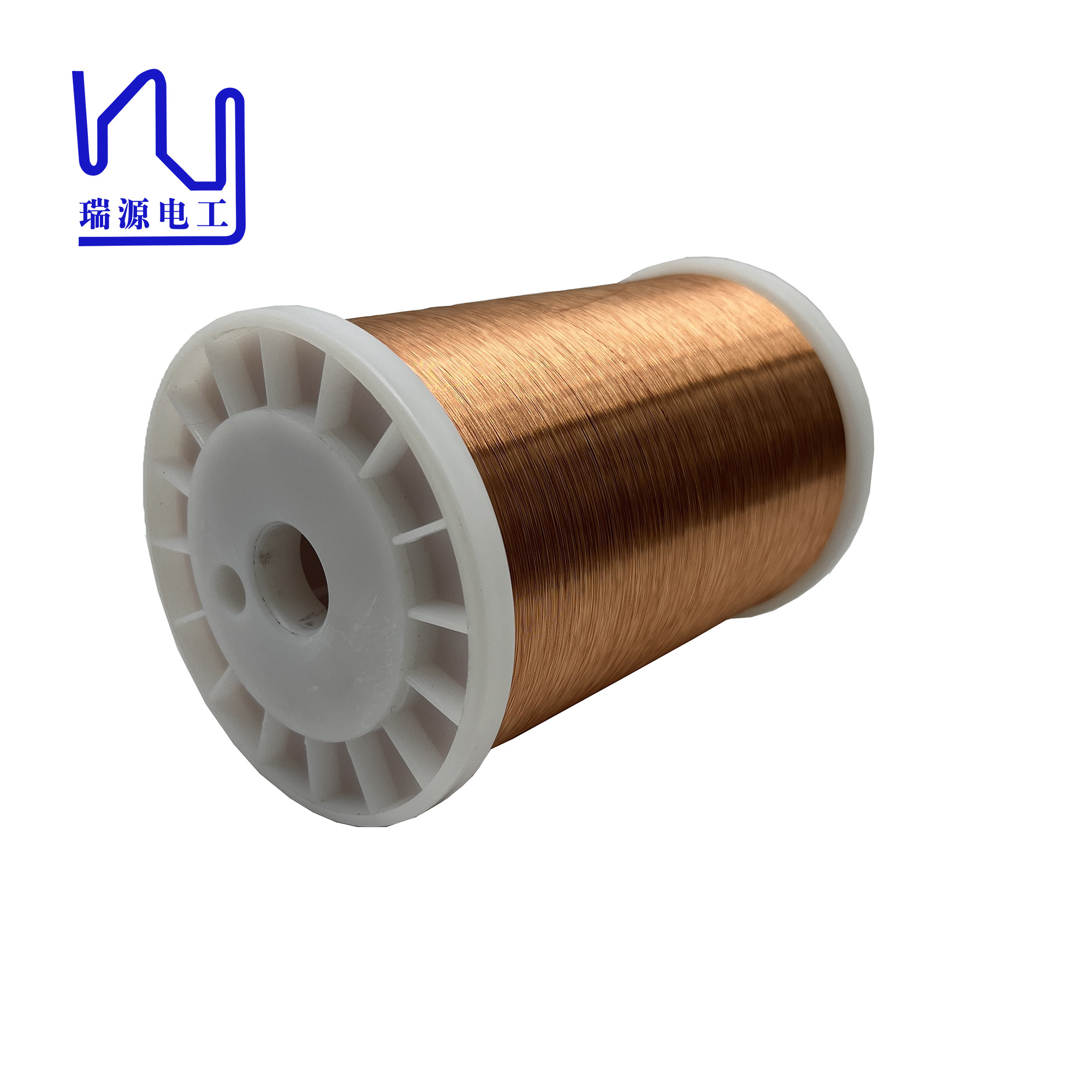

Name: 0.09mm 2UEW155 39AWG Enameled Copper Wire For Windings
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.09mm
Price: 24.06 USD
Availability: InStock

0.09mm 2UEW155 39AWG Enameled Copper Wire For Windings

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.09mm

Minimum Order Quantity:	5kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	2UEW155 39AWG Enameled Copper Wire For Windings	Thermal Rating:	155
Insulation Material:	UEW	Diameter:	0.09mm
Conductor Material:	Copper	Key Word:	2UEW155 39AWG Enameled Copper Wire For Windings
Highlight:	39AWG Enameled Copper Wire , Windings Enameled Copper Wire , Windings Enamel Coated Magnet Wire

Product Description

2UEW155 39AWG enameled copper wire for windings

In the field of microelectronics, enameled copper wire plays a vital role in the production of tiny electronic devices such as smartphones, tablets and wearable technology. Its slim diameter enables complex circuit designs, making it ideal for space-constrained applications.

High temperature ratings ensure that the wires can withstand the heat generated during operation of these electronic devices, providing stability and reliability.

Product	2UEW155 39AWG enameled copper wire for windings
Key word	2UEW155 39AWG enameled copper wire for windings

Test Item	Unit		Standard Value			Reality Value
Test Item	Unit		1^st Sample	2^nd Sample	3^rd Sample	Reality Value
Appearance	Smooth & Clean		OK	OK	OK	OK
Conductor Diameter	0.090±	0.002	0.090	0.090	0.090	OK
Thickness of Insulation	≥ 0.010 mm		0.013	0.012	0.013	OK
Overall Diameter	≤ 0.107 mm		0.103	0.102	0.103	OK
DC Resistance	≤ 2.835Ω/m		2.702	2.729	2.716	OK
Elongation	≥ 17 %		22.5	23.4	21.9	OK
Breakdown Voltage	≥ 700 V		2081	2143	1986	OK
Pin Hole	≤ 5 Faults/5m		0	0	0	OK
Continuity	≤12Faults/30m		0	0	0	OK
Test Items	Technical Requests				Results
Adhesive	Coating layer is good				OK
Cut-through	200℃ 2mins no breakdown				OK
Heat Shock	175±5℃/30min no crack				OK
Solder Ability	390± 5℃ 2Sec Smooth				OK
