| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155 0.09mm Super Thin Enameled Copper Wire For Microelectronics | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | 2UEW155 0.09mm Super Thin Enameled Copper Wire For Microelectronics |
| High Light: | Microelectronics Enamelled Copper Wire,Enameled Copper Wire 0.09mm,Enameled Copper Wire 2UEW155 |
||

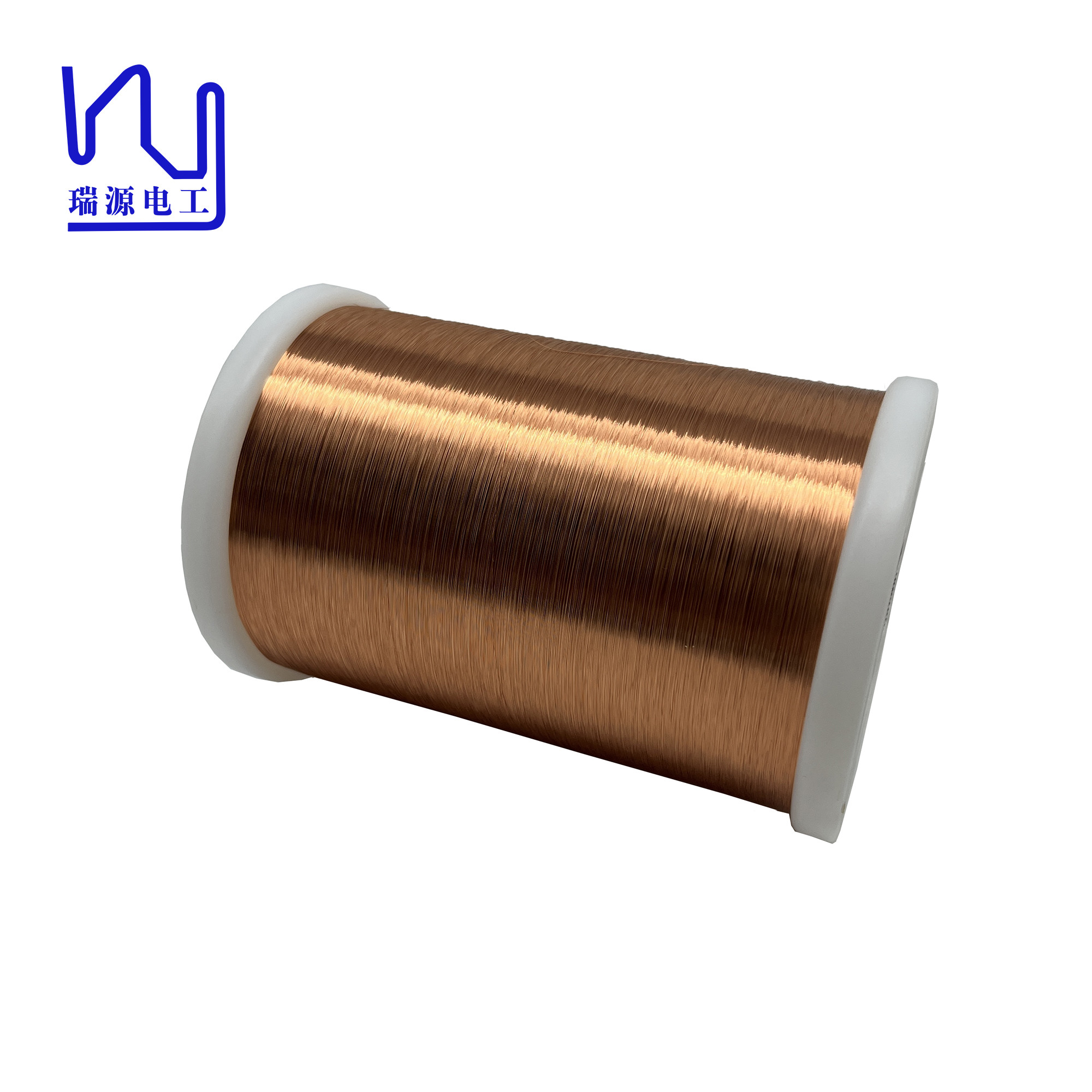

2UEW155 0.09mm super thin enameled copper wire for microelectronics
Enameled copper wire is a type of wire widely used in the manufacturing of various electronic products, especially in the field of microelectronics.
The wire, which is 0.09 mm in diameter and rated for 155 degrees, is becoming increasingly popular for its ability to effectively conduct electricity while also withstanding high temperatures.
| Product |
2UEW155 0.09mm super thin enameled copper wire for microelectronics |
|
Key word |
2UEW155 0.09mm super thin enameled copper wire for microelectronics |
|
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
1st Sample |
2nd Sample |
3rd Sample |
||||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
OK |
|
|
Conductor Diameter |
0.090± |
0.002 |
0.090 |
0.090 |
0.090 |
OK |
|
Thickness of Insulation |
≥ 0.010 mm |
0.013 |
0.012 |
0.013 |
OK |
|
|
Overall Diameter |
≤ 0.107 mm |
0.103 |
0.102 |
0.103 |
OK |
|
|
DC Resistance |
≤ 2.835Ω/m |
2.702 |
2.729 |
2.716 |
OK |
|
|
Elongation |
≥ 17 % |
22.5 |
23.4 |
21.9 |
OK |
|
|
Breakdown Voltage |
≥ 700 V |
2081 |
2143 |
1986 |
OK |
|
|
Pin Hole |
≤ 5 Faults/5m |
0 |
0 |
0 |
OK |
|
|
Continuity |
≤12Faults/30m |
0 |
0 |
0 |
OK |
|
|
Test Items |
Technical Requests |
Results |
||||
|
Adhesive |
Coating layer is good |
OK |
||||
|
Cut-through |
200℃ 2mins no breakdown |
OK |
||||
|
Heat Shock |
175±5℃/30min no crack |
OK |
||||
|
Solder Ability |
390± 5℃ 2Sec Smooth |
OK |
||||
