Name: 0.28mm 2UEW155 Solderable Enameled Copper Wire For Motor Winding
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.28mm
Price: 24.06 USD
Availability: InStock

0.28mm 2UEW155 Solderable Enameled Copper Wire For Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.28mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	0.28mm 2UEW155 Solderable Enameled Copper Wire For Motor Winding	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.28mm
Conductor Material:	Copper	Key Word:	0.28mm 2UEW155 Solderable Enameled Copper Wire For Motor Winding
Highlight:	Solderable Enameled Copper Wire , Enameled Copper Wire 0.28mm , Motor Enameled Copper Winding Wire

Product Description

0.28mm 2UEW155 Solderable Enameled Copper Wire For Motor Winding

Application of 0.28mm enameled copper wire:

0.28mm enameled wire is an insulated wire that is widely used in the windings of motors, transformers, coils and other electrical equipment.

What is enamel coating used for?

Its insulating coating effectively prevents short circuits between wires and other electrical problems, and is resistant to high temperatures. This makes 0.28mm enameled wire an important component in electrical equipment and widely used in various industrial and household equipment. Its careful winding and reliable insulating capabilities make it an indispensable material in many fields of electrical engineering.

Test Items	Requirements		Test Data			Result
Test Items	Requirements		1st Sample	2nd Sample	3rd Sample	Result
Appearance	Smooth & Clean		OK	OK	OK	OK
Conductor Diameter	0.280mm ±	0.004mm	0.281	0.281	0.281	OK
Thickness of Insulation	≥ 0.025 mm		0.031	0.030	0.030	OK
Overall Diameter	≤ 0.316mm		0.312	0.311	0.311	OK
DC Resistance	≤ 0.288Ω/m		0.2752	0.2766	0.2755	OK
Elongation	≥ 23%		34.7	32.2	33.5	OK
Breakdown Voltage	≥2300V		5552	5371	5446	OK
Pin Hole	≤5(faults)/5m		0	0	0	OK
Adherence	No cracks visible		OK	OK	OK	OK
Cut-through	200℃ 2min No breakdown		OK	OK	OK	OK
Heat Shock	175±5℃/30min No cracks		OK	OK	OK	OK
Solderability	390± 5℃ 2 Sec No slags		OK	OK	OK	OK
Insulation Continuity	/		/	/	/	/

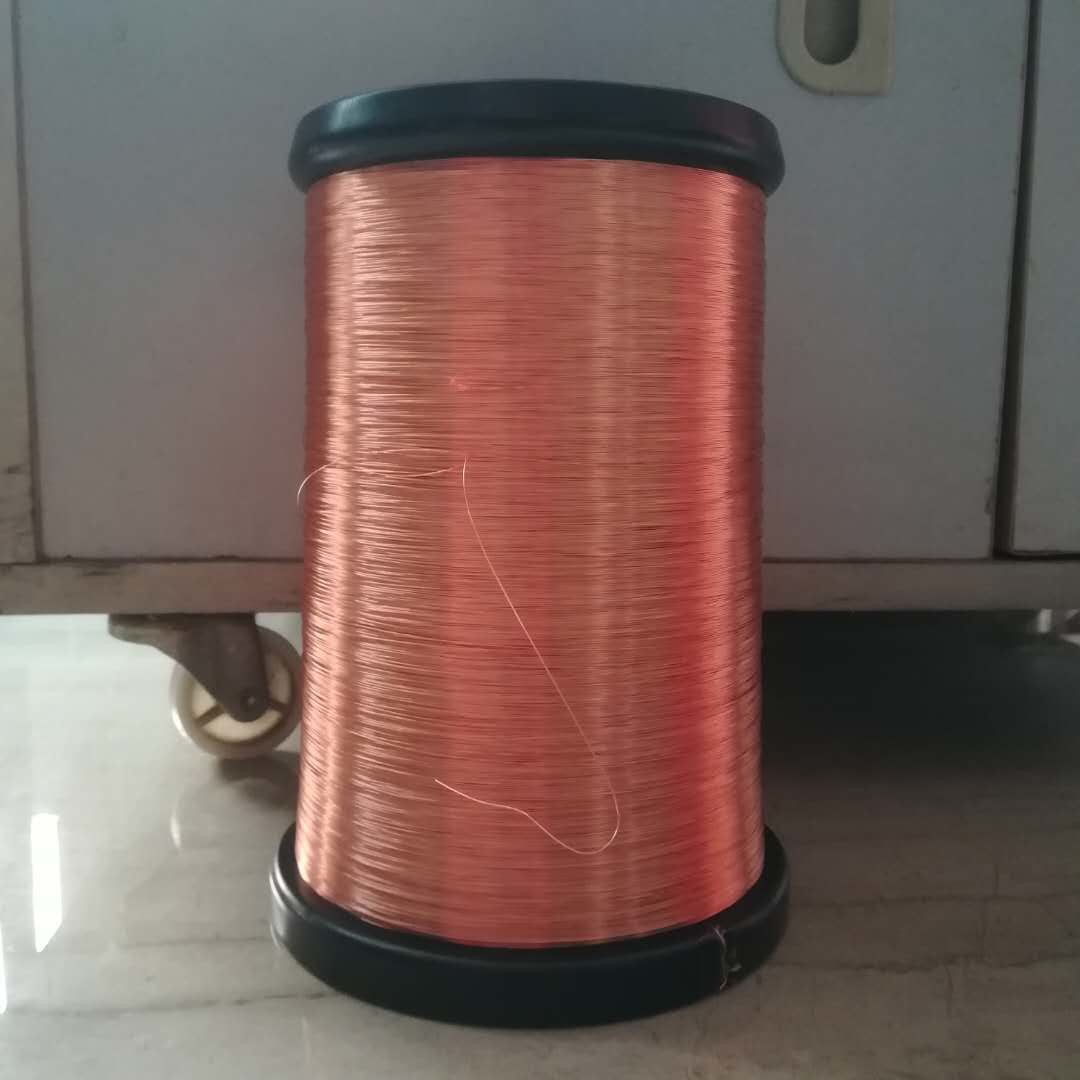

0.28mm 2UEW155 Solderable Enameled Copper Wire For Motor Winding 0
