| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.95mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.8mm 0.9mm 0.95mm Custom Enameled Copper Wire For Windings | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.95mm |
| Conductor Material: | Copper | Key Word: | 0.8mm 0.9mm 0.95mm Custom Enameled Copper Wire For Windings |
| High Light: | 0.8mm enamelled copper wire,enamelled copper wire custom,0.9mm enameled copper wire |
||

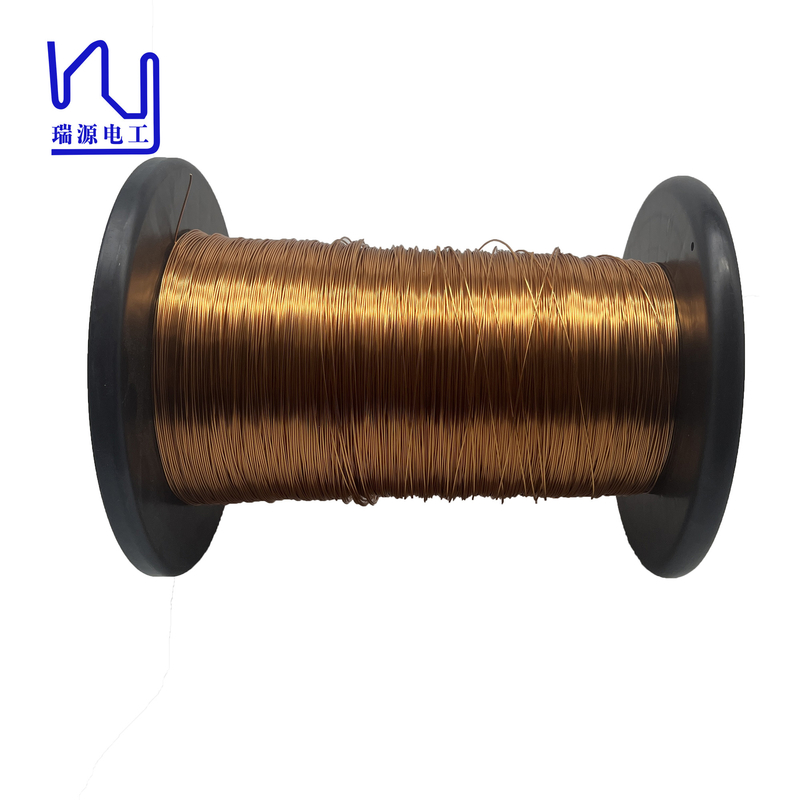

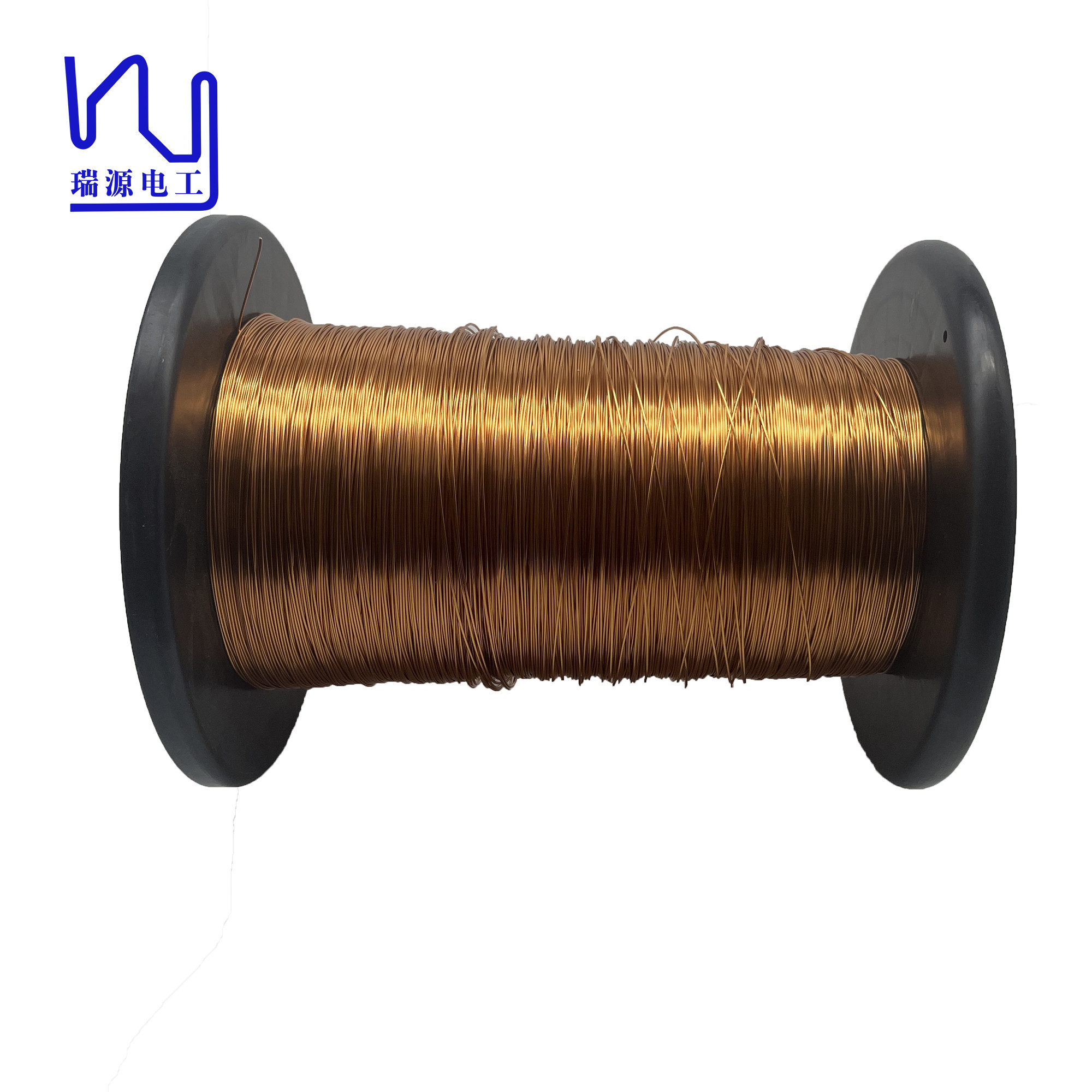

0.8mm 0.9mm 0.95mm Custom Enameled Copper Wire For Windings
There are several advantages to using enameled copper wire in transformer windings.
1. The thin insulating coating provides excellent dielectric properties, ensuring efficient energy transfer.
2. Copper's flexibility and durability make it an ideal material for manufacturing tightly wound coils, resulting in high-performance transformers capable of handling varying electrical loads. When it comes to transformer manufacturing, the quality and reliability of enamelled copper wire are crucial. Our enamelled copper wire is manufactured to the highest industry standards, ensuring uniform insulation thickness and excellent adhesion, which is vital to maintaining the integrity of the windings during the life of the transformer.
| Product |
0.8mm 0.9mm 0.95mm Custom Enameled Copper Wire For Windings |
|
Key word |
0.8mm 0.9mm 0.95mm Custom Enameled Copper Wire For Windings |
| scale |
Insulation breakdown voltage V(above) |
Conductor resistance Ω/km(20℃) |
elongation %(above) |
Angle of rebound (max.) |
||||
| conductor |
Min. Film thickness mm |
Finished outside diameter mm |
||||||
| Specification mm | Tolerance mm | min | max | max | ||||
| 0.95 | ±0.020 | 0.034 | 1.018 | 1.072 | 5100 | 25.38 | 25 | 45 |
