| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.95mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.95mm Class 155 Enameled Copper Wire Winding Coils For Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.95mm |
| Conductor Material: | Copper | Key Word: | 0.95mm Class 155 Enameled Copper Wire Winding Coils For Motor |
| High Light: | 0.95mm enamel winding wire,class 155 enamel winding wire,motor enameled copper wire |
||

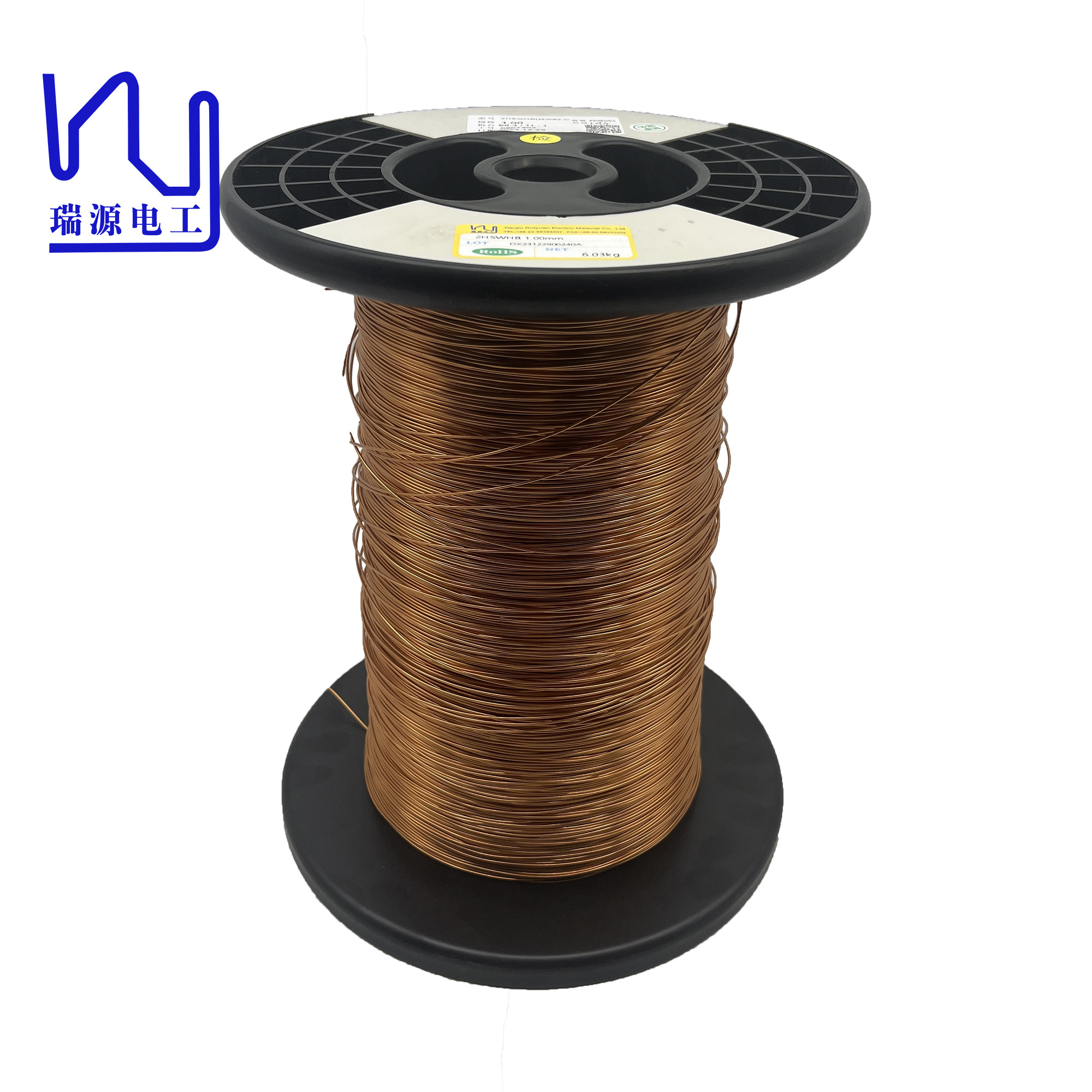

0.95mm Class 155 Enameled Copper Wire Winding Coils For Motor
The wire is able to withstand the high temperatures generated during transformer operation, ensuring reliable and long-lasting performance. In addition to standard 155-degree enameled copper wire, we also offer higher temperature-resistant options, including 180 degrees, 200 degrees, and 220 degrees. This allows greater flexibility in designing and manufacturing transformers for a variety of applications and operating conditions.
| Product |
0.95mm Class 155 Enameled Copper Wire Winding Coils For Motor |
|
Key word |
0.95mm Class 155 Enameled Copper Wire Winding Coils For Motor |
| scale |
Insulation breakdown voltage V(above) |
Conductor resistance Ω/km(20℃) |
elongation %(above) |
Angle of rebound (max.) |
||||
| conductor |
Min. Film thickness mm |
Finished outside diameter mm |
||||||
| Specification mm | Tolerance mm | min | max | max | ||||
| 0.95 | ±0.020 | 0.034 | 1.018 | 1.072 | 5100 | 25.38 | 25 | 45 |
