| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.95mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEWF/H 0.95mm Enameled Copper Wire For High Frequency Transformer | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.95mm |
| Conductor Material: | Copper | Key Word: | 2UEWF/H 0.95mm Enameled Copper Wire For High Frequency Transformer |
| High Light: | 2UEWF enamelled copper wire,High Frequency Transformer enamelled copper wire,2UEWH enameled copper wire |
||

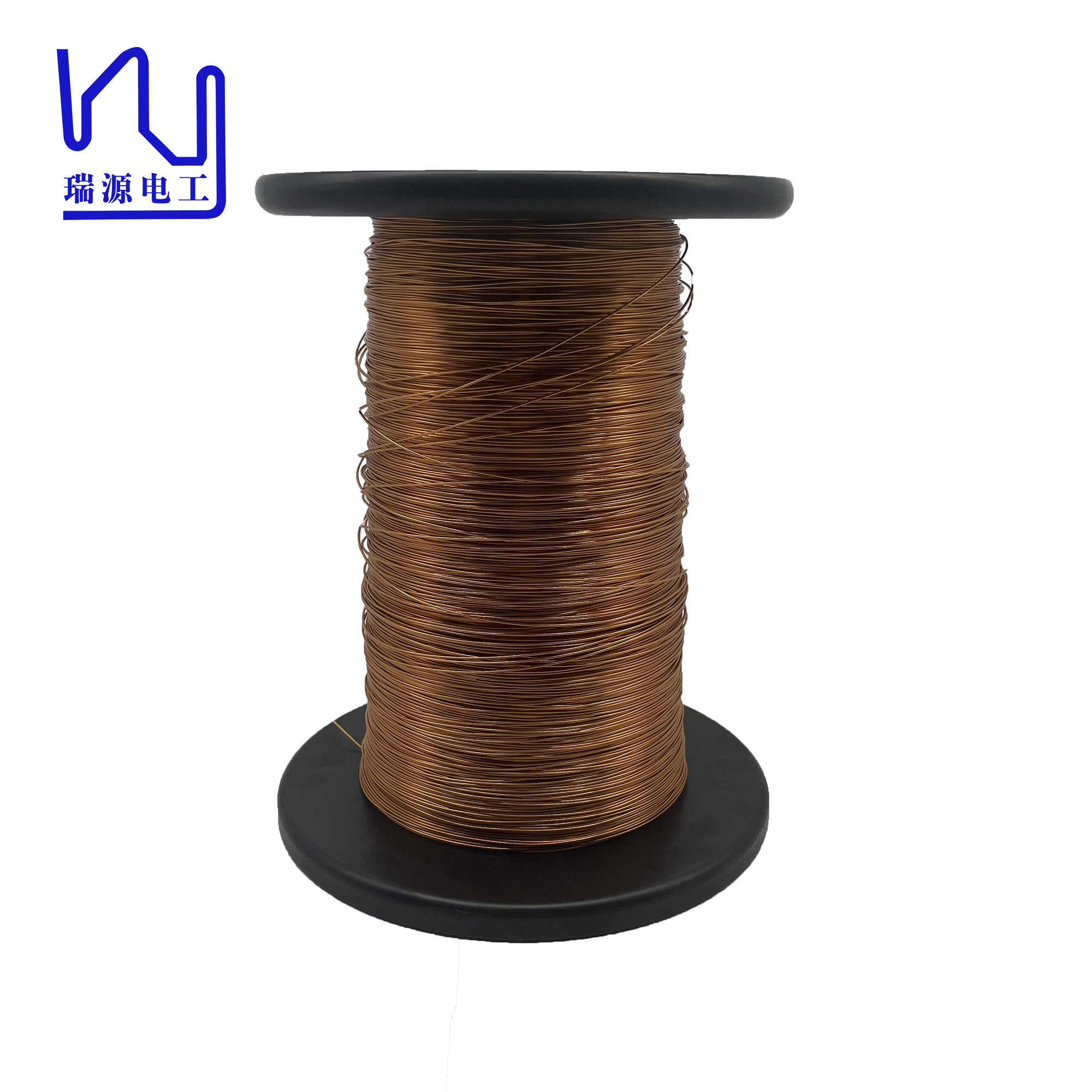

2UEWF/H 0.95mm Enameled Copper Wire For High Frequency Transformer
Enameled copper wire is an important component in the manufacture of transformers and other electrical equipment.
The 0.95mm wire diameter makes it ideal for complex coil windings, allowing precise control of the transformer's electrical characteristics. Our custom enameled copper wire has a temperature rating of 155 degrees and is specifically designed to meet the needs of transformer winding applications.
| Product |
2UEWF/H 0.95mm Enameled Copper Wire For High Frequency Transformer |
|
Key word |
2UEWF/H 0.95mm Enameled Copper Wire For High Frequency Transformer |
| scale |
Insulation breakdown voltage V(above) |
Conductor resistance Ω/km(20℃) |
elongation %(above) |
Angle of rebound (max.) |
||||
| conductor |
Min. Film thickness mm |
Finished outside diameter mm |
||||||
| Specification mm | Tolerance mm | min | max | max | ||||
| 0.95 | ±0.020 | 0.034 | 1.018 | 1.072 | 5100 | 25.38 | 25 | 45 |
