| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.117mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Polyurethane Solderable Enameled Copper Wire Magnet Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.117mm |
| Conductor Material: | Copper | Key Word: | Polyurethane Solderable Enameled Copper Wire Magnet Wire |
| High Light: | polyurethane enamel coated copper wire,solderable enamel coated copper wire,magnet enameled copper wire |
||

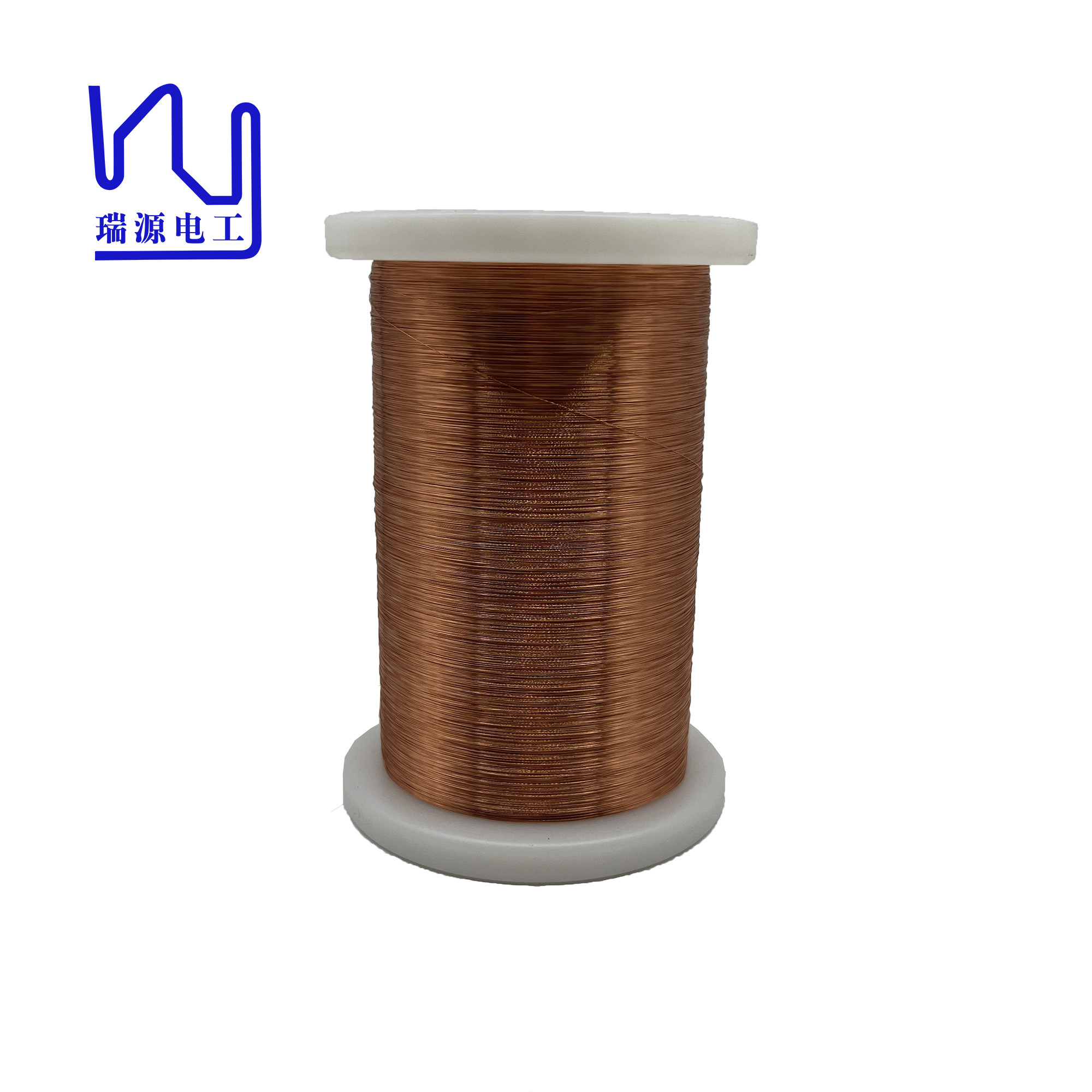

Polyurethane Solderable Enameled Copper Wire Magnet Wire
This type of wire is widely used in the construction of transformers, electric motors, solenoids, and various other electromagnetic devices. Its ability to efficiently conduct electricity while providing excellent insulation makes it an integral part of the production of high-quality electronic components. Additionally, the solderable nature of the wire simplifies the assembly process, making it a preferred choice for manufacturers in the electronics industry.
| Product |
Polyurethane Solderable Enameled Copper Wire Magnet Wire |
|
Key word |
Polyurethane Solderable Enameled Copper Wire Magnet Wire |
| Characteristics | Standard |
| Appearance | Smooth,Equality |
| Conductor diameter(mm) | 0. 117±0.001 |
| Insulation Thickness( mm) | Min. 0.002 |
| Overall diameter(mm) | 0.121-0.123 |
| Conductor Resistance(Ω/m,20℃) | 1.55~ 1.60 |
| Electric conductivity(%) | Min.95 |
| Elongation(%) | Min. 15 |
| Density(g/cm3) | 8.89 |
| Breakdown Voltage(V) | Min. 300 |
| Breaking force (cn) | Min. 32 |
| Tensile strength (N/mm² ) | Min. 270 |
| Solderability(S) | Max.2S |
