| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.117mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Polyurethane 0.117mm Class 155 Enameled Round Copper Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.117mm |
| Conductor Material: | Copper | Key Word: | Polyurethane 0.117mm Class 155 Enameled Round Copper Winding Wire |
| High Light: | 0.117mm copper winding wire,class 155 copper winding wire |
||

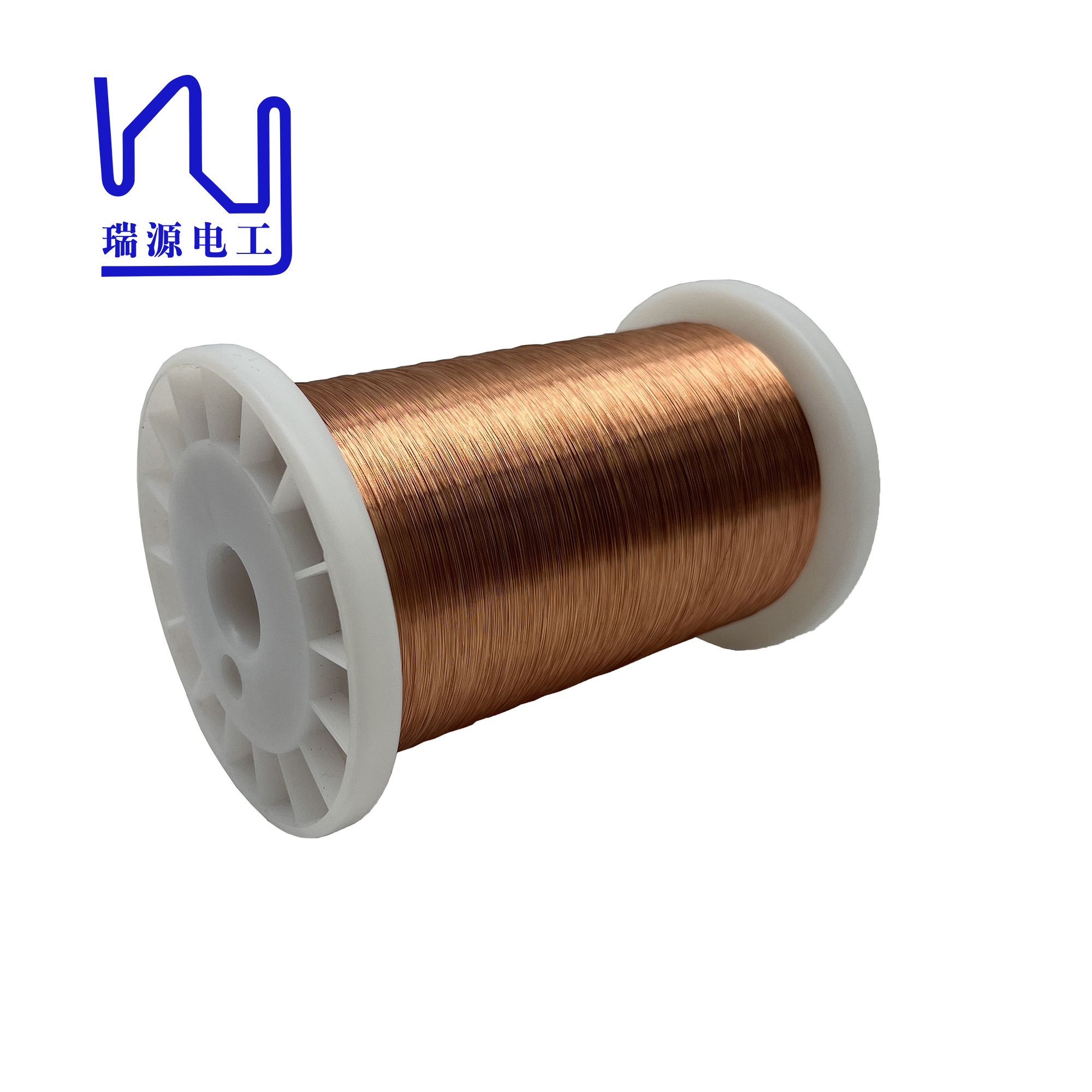

Polyurethane 0.117mm Class 155 Enameled Round Copper Winding Wire
The applications of enameled copper wire in electronic products are diverse and essential. This type of wire is widely used in the construction of transformers, electric motors, solenoids, and various other electromagnetic devices. Its ability to efficiently conduct electricity while providing excellent insulation makes it an integral part of the production of high-quality electronic components.
| Product |
Polyurethane 0.117mm Class 155 Enameled Round Copper Winding Wire |
|
Key word |
Polyurethane 0.117mm Class 155 Enameled Round Copper Winding Wire |
| Characteristics | Standard |
| Appearance | Smooth,Equality |
| Conductor diameter(mm) | 0. 117±0.001 |
| Insulation Thickness( mm) | Min. 0.002 |
| Overall diameter(mm) | 0.121-0.123 |
| Conductor Resistance(Ω/m,20℃) | 1.55~ 1.60 |
| Electric conductivity(%) | Min.95 |
| Elongation(%) | Min. 15 |
| Density(g/cm3) | 8.89 |
| Breakdown Voltage(V) | Min. 300 |
| Breaking force (cn) | Min. 32 |
| Tensile strength (N/mm² ) | Min. 270 |
| Solderability(S) | Max.2S |
