| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.117mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.117 Super Fine Enamelled Coated Copper Wire Soderable Magnetic Copper Wire For Sale | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.117mm |
| Conductor Material: | Copper | Key Word: | 0.117 Super Fine Enamelled Coated Copper Wire Soderable Magnetic Copper Wire For Sale |
| High Light: | 0.117mm enamelled wire,enamelled wire super fine,magnetic soderable enamelled copper wire |
||

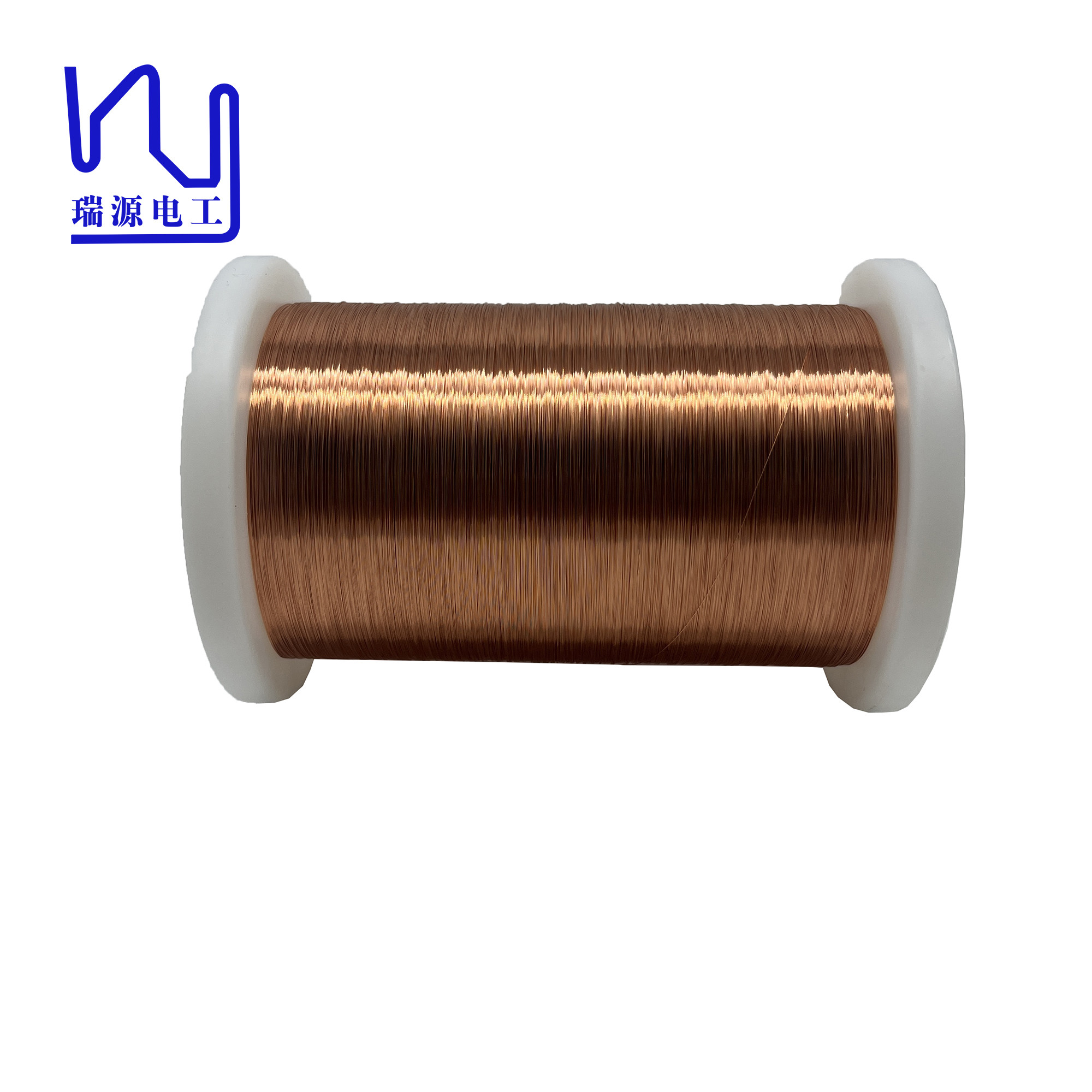

0.117mm Super Fine Enamelled Coated Copper Wire Soderable Magnetic Copper Wire For Sale
We offer custom production options in heat ratings of 155°C and 180°C, allowing you to choose the most suitable wire for your specific needs. Whether you require higher temperature tolerance for demanding applications or standard insulation for general electronic circuits, we can customize our products to meet your exact specifications.
| Product |
0.117mm Super Fine Enamelled Coated Copper Wire Soderable Magnetic Copper Wire For Sale |
|
Key word |
0.117mm Super Fine Enamelled Coated Copper Wire Soderable Magnetic Copper Wire For Sale |
| Characteristics | Standard |
| Appearance | Smooth,Equality |
| Conductor diameter(mm) | 0. 117±0.001 |
| Insulation Thickness( mm) | Min. 0.002 |
| Overall diameter(mm) | 0.121-0.123 |
| Conductor Resistance(Ω/m,20℃) | 1.55~ 1.60 |
| Electric conductivity(%) | Min.95 |
| Elongation(%) | Min. 15 |
| Density(g/cm3) | 8.89 |
| Breakdown Voltage(V) | Min. 300 |
| Breaking force (cn) | Min. 32 |
| Tensile strength (N/mm² ) | Min. 270 |
| Solderability(S) | Max.2S |
