3uewf 37 Awg Self Solderable Copper Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.117mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	3UEWF 37 AWG Solderable Enameled Copper Wire For Transformer	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.117mm
Conductor Material:	Copper	Key Word:	3UEWF 37 AWG Solderable Enameled Copper Wire For Transformer
Highlight:	3uewf self solderable copper wire , 37 awg self solderable copper wire , solderable magnet wire for transformer

Product Description

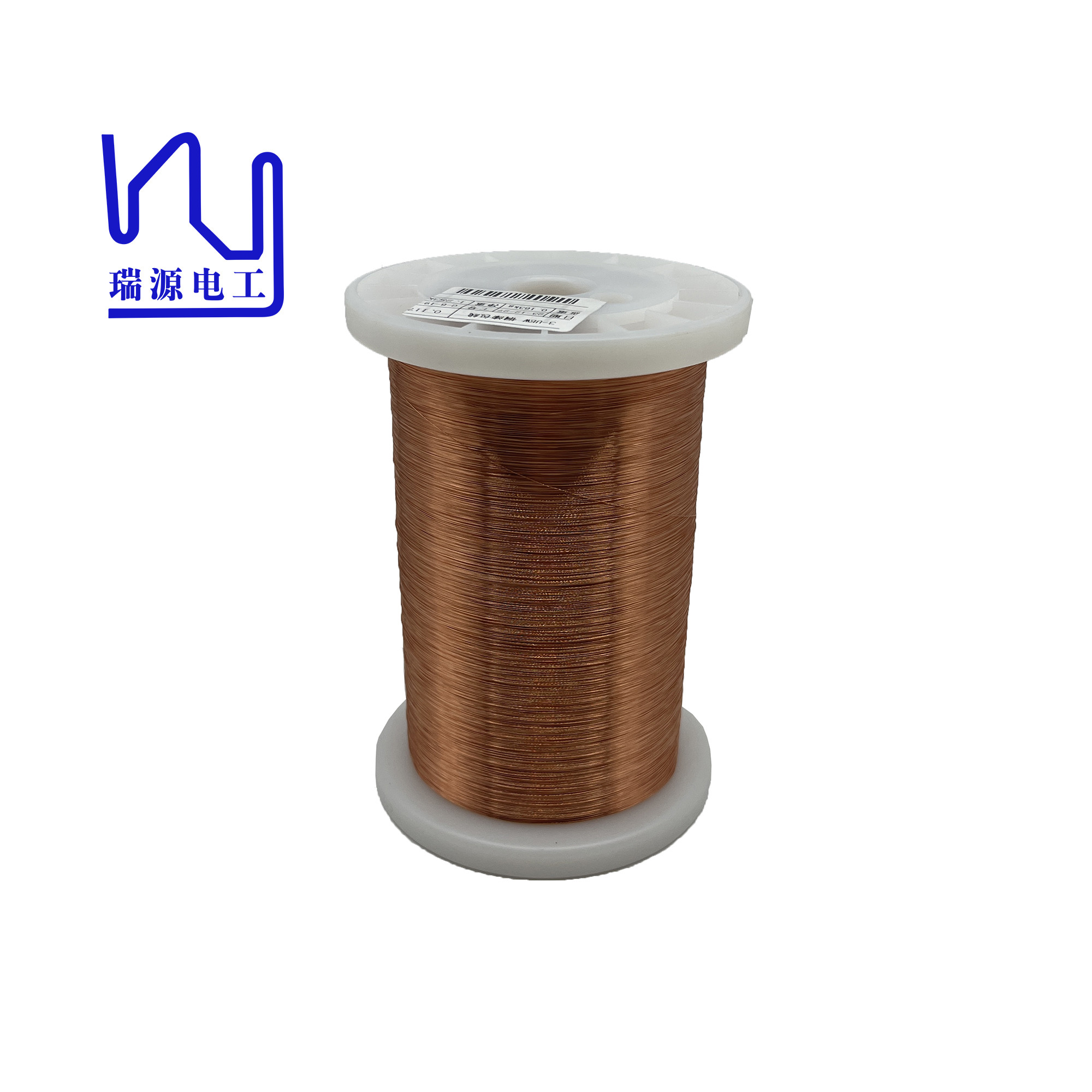

3UEWF 37 AWG Solderable Enameled Copper Wire For Transformer

This 0.117mm enameled copper wire is a solderable type of wire that is ideal for a variety of electronic projects. The coating material is polyurethane.The diameter of the enameled wire we produce ranges from 0.012mm to 1.2mm, and we also support color wire customization.

Product	3UEWF 37 AWG Solderable Enameled Copper Wire For Transformer
Key word	3UEWF 37 AWG Solderable Enameled Copper Wire For Transformer
Characteristics	Standard
Appearance	Smooth,Equality
Conductor diameter(mm)	0. 117±0.001
Insulation Thickness( mm)	Min. 0.002
Overall diameter(mm)	0.121-0.123
Conductor Resistance(Ω/m,20℃)	1.55~ 1.60
Electric conductivity(%)	Min.95
Elongation(%)	Min. 15
Density(g/cm3)	8.89
Breakdown Voltage(V)	Min. 300
Breaking force (cn)	Min. 32
Tensile strength (N/mm² )	Min. 270
Solderability(S)	Max.2S
