3uew155 0.117mm Ultrafine Enameled Copper Winding Wire For Electronic Devices

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.117mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	3UEW155 0.117mm Ultrafine Enameled Copper Winding Wire For Electronic Devices	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.117mm
Conductor Material:	Copper	Key Word:	3UEW155 0.117mm Ultrafine Enameled Copper Winding Wire For Electronic Devices
Highlight:	ultrafine enameled copper winding wire , electronic devices enameled copper winding wire , ultrafine swg copper winding wire

Product Description

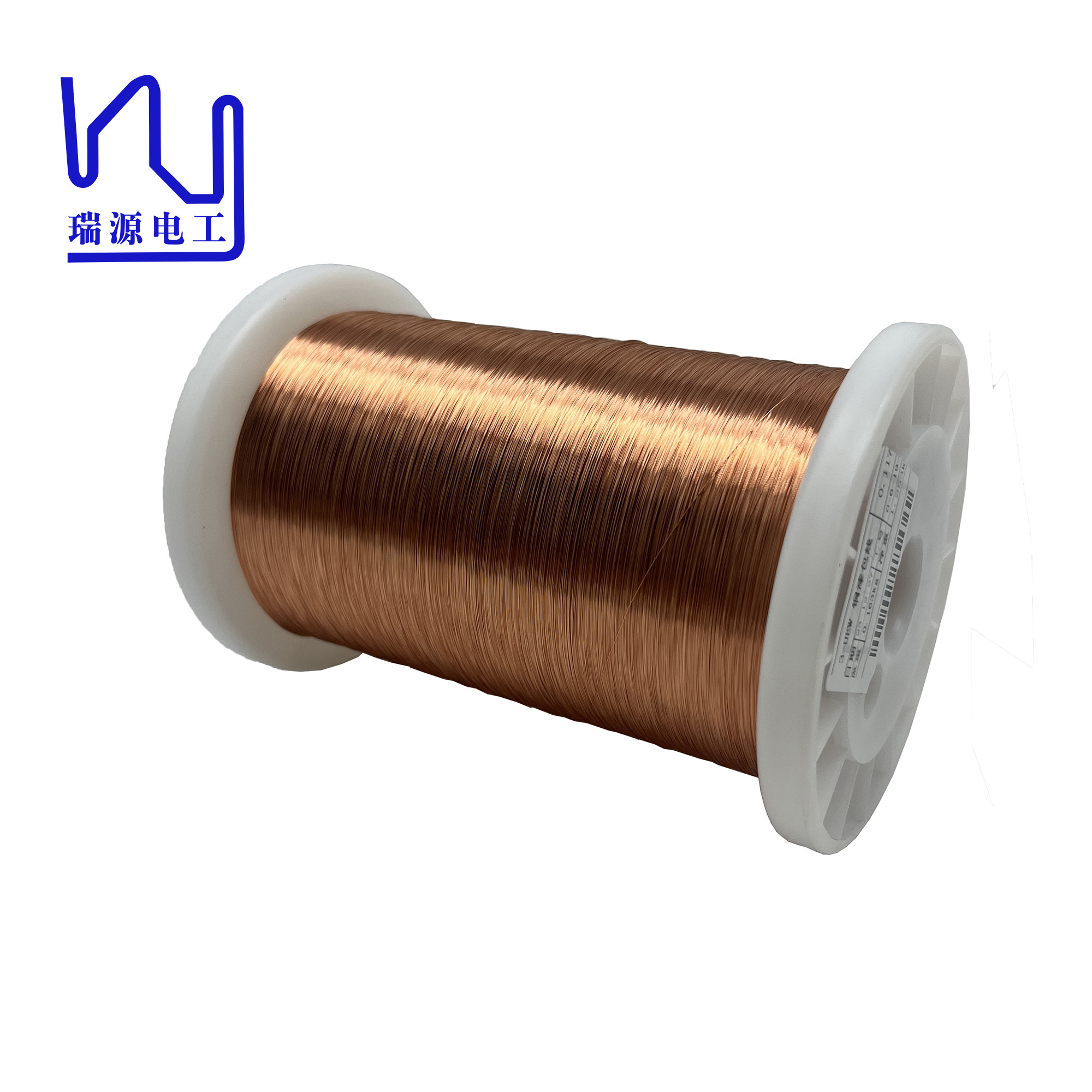

3UEW155 0.117mm Ultrafine enameled copper winding wire for electronic devices

Enameled copper wire, also known as enameled wire, is a key component in the production of various electronic devices. This specialized wire offers superior conductivity and insulation properties and is designed to meet high industry standards.

Product	3UEW155 0.117mm Ultrafine enameled copper winding wire for electronic devices
Key word	3UEW155 0.117mm Ultrafine enameled copper winding wire for electronic devices
Characteristics	Standard
Appearance	Smooth,Equality
Conductor diameter(mm)	0. 117±0.001
Insulation Thickness( mm)	Min. 0.002
Overall diameter(mm)	0.121-0.123
Conductor Resistance(Ω/m,20℃)	1.55~ 1.60
Electric conductivity(%)	Min.95
Elongation(%)	Min. 15
Density(g/cm3)	8.89
Breakdown Voltage(V)	Min. 300
Breaking force (cn)	Min. 32
Tensile strength (N/mm² )	Min. 270
Solderability(S)	Max.2S
