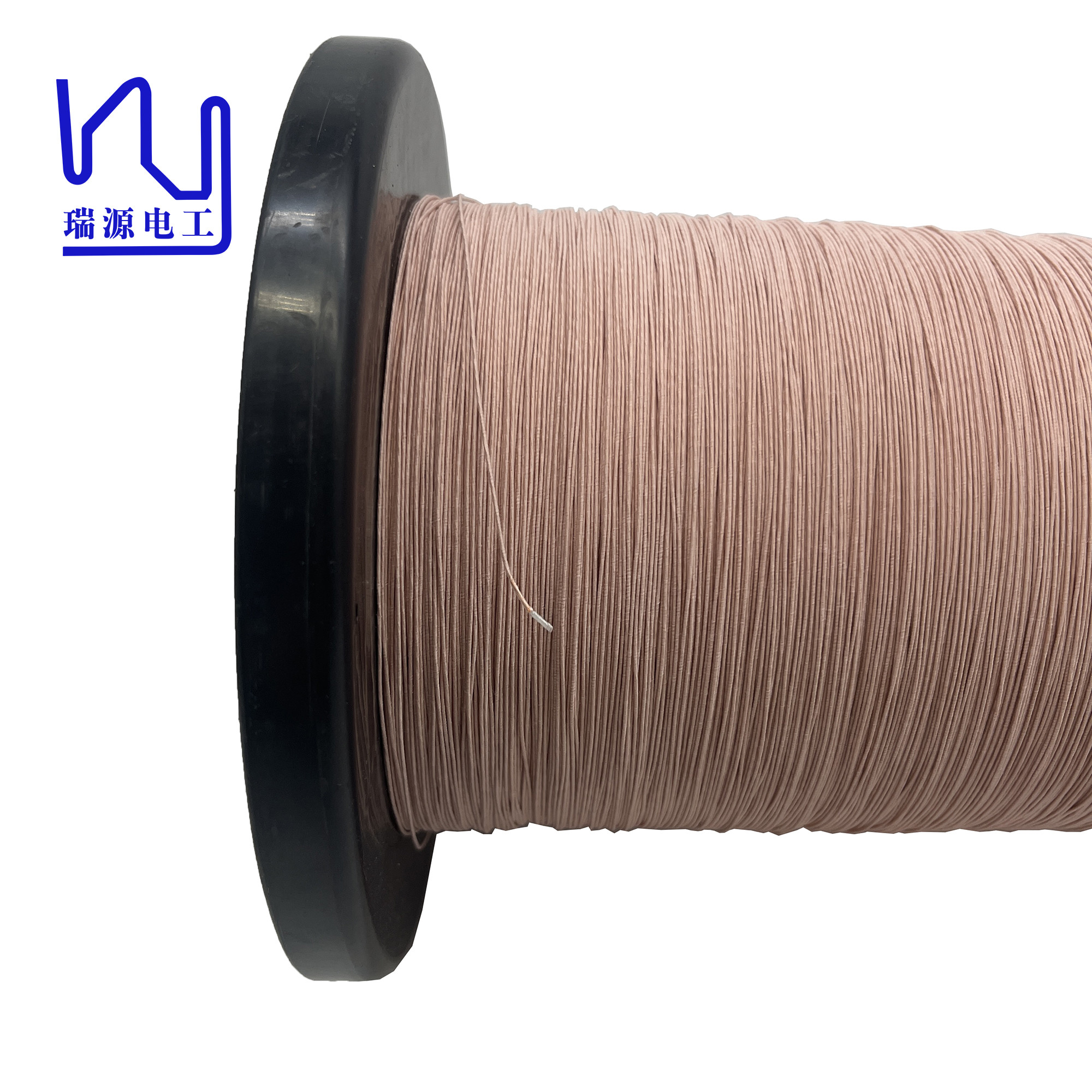

USTC155 Ustc Litz Wire 38AWG 0.1mm*16 Nylon Serving For Vehicle

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	10 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	USTC155 38AWG/0.1mm*16 Nylon Serving Litz Wire Copper Stranded Wire For Vehicle	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm/38AWG	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	USTC155 38AWG/0.1mm*16 Nylon Serving Litz Wire Copper Stranded Wire For Vehicle
No. Of Strands:	16
Highlight:	16 stranded ustc litz wire , Vehicle ustc litz wire , Vehicle 38 awg stranded copper wire

Product Description

USTC155 38AWG/0.1mm*16 Nylon Serving Litz Wire Copper Stranded Wire For Vehicle

As the automotive and new energy vehicle industries continue to develop, the need for high-quality wiring solutions has become increasingly critical. Against this backdrop, custom-designed nylon litz wire has emerged as a important component, offering significant advantages for a wide range of applications.

Test report: USTC-F 0.1mm*16
Item	Technical standard	Test result
Appearance	Smooth, no No slags	Good
Conductor diameter (mm)	0.100±.0003	0.100
Outer conductor diameter(mm)	0.110-0.125	0.114
No. Of strands	16	16
Stranding direction	S	Good
Pinhole	6m faults≤ strands*2	1
Conductor resistance	≤153.28 Ω/km(20℃)	136
Breakdown voltage	≥ 1.1KV	3.7
Solderability 390±5℃	Smooth, no pinhole, no slags	Good
