| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC155 0.071mm*84 Nylon Serving Copper Litz Wire Insulated Stranded Wire Solid | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC155 0.071mm*84 Nylon Serving Copper Litz Wire Insulated Stranded Wire Solid |
| No. Of Strands: | 84 | ||
| Highlight: | ustc155 served litz wire,0.071mm served litz wire,nylon served ustc litz wire |
||

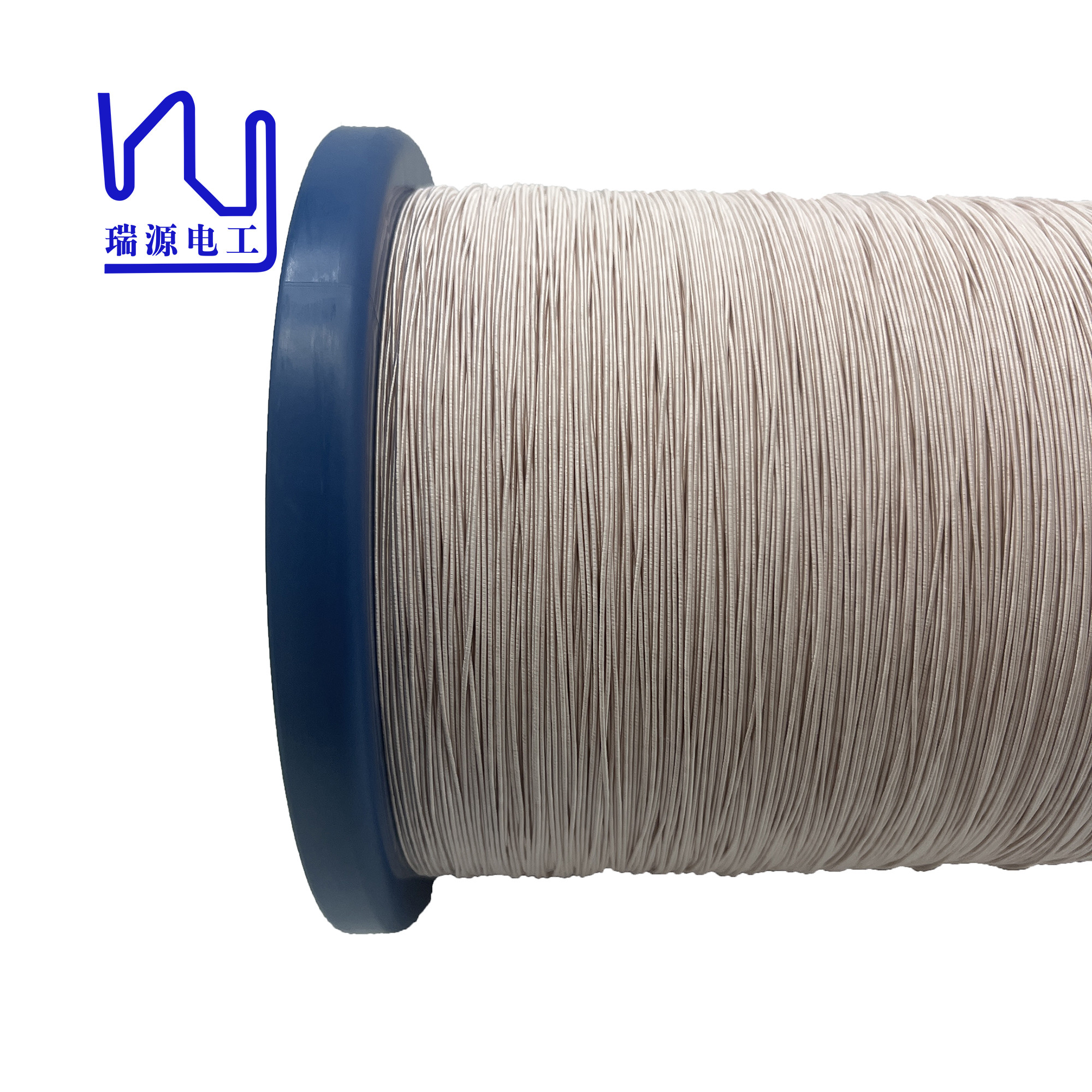

USTC155 0.071mm*84 Nylon Serving Copper Litz Wire Insulated Stranded Wire Solid
This is a nylon served copper litz wire, a special type of wire used in industrial applications. This wire is covered with nylon yarn, which can insulate, protect the copper wire from external environment,such as moisture, corrosion, etc., and also has a certain flame retardant effect
|
|
Single wire diameter mm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch (mm) |
Pinhole(6m) |
Solder Ability 390± 5℃ 9s |
| Ttech requirement |
0.077-0.084 |
0.071 |
1.04 |
0.05940 |
950 |
29 |
40 |
Smooth, no shed |
| ± | 0.003 | Max | Max. | Min | 5 | Max | ||
| 1 | 0.078 | 0.068 | 0.85 | 0.0541 | 3400 | √ | 7 | √ |
| 2 | 0.081 | 0.070 | 0.90 | 0.0540 | 3000 | √ | 8 | √ |
