Detail Information

Product Name:	20 - 56 AWG Varnished Copper Wire Copper Enameled Wire , 0.4mm - 0.8mm Green Super Fine Copper Wire Insulated	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.04mm
Conductor Material:	Copper	Key Word:	20 - 56 AWG Varnished Copper Wire Copper Enameled Wire , 0.4mm - 0.8mm Green Super Fine Copper Wire Insulated
Type:	20 - 56 AWG Varnished Copper Wire Copper Enameled Wire , 0.4mm - 0.8mm Green Super Fine Copper Wire Insulated
Highlight:	56 awg enamelled copper wire , 0.4mm enamelled copper wire , varnished copper 20 awg enamelled wire

Product Description

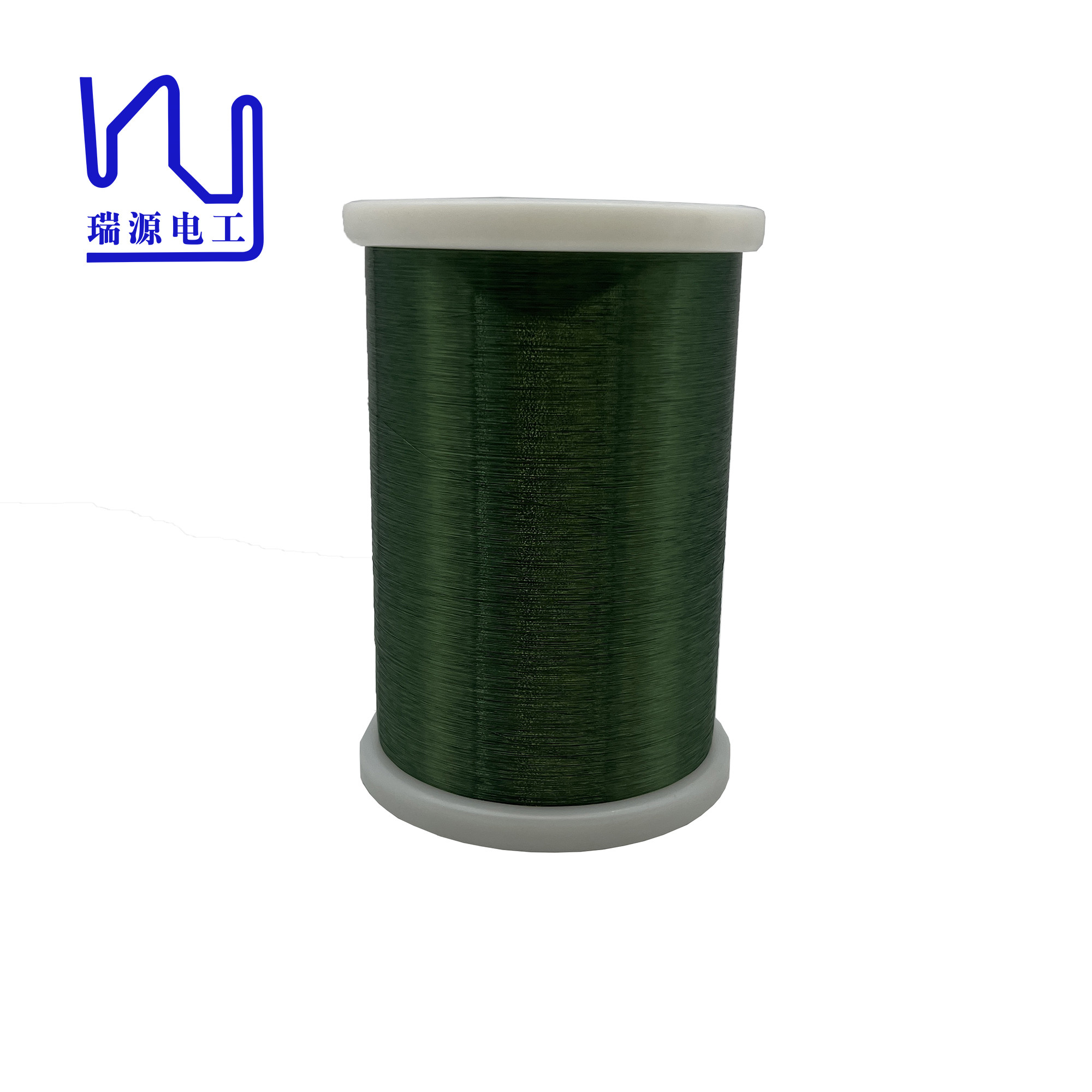

20 - 56 AWG Varnished Copper Wire Copper Enameled Wire , 0.4mm - 0.8mm Green super Fine Copper Wire Insulated

Enameled copper wire, as a customized wire launched by our company, has outstanding advantages in the field of information transmission. Its unique color, excellent weldability, high temperature resistance, and ultra-thin wire characteristics make it the material of choice in the fields of electronic equipment manufacturing and communications.

Test Items	Requirements		Test Data
Test Items	Requirements		1^st Sample	2^nd Sample	3^rd Sample
Appearance	Smooth & Clean		OK	OK	OK
Conductor Diameter	0.040mm ±	0.001mm	0.0400	0.0400	0.0400
Thickness of Insulation	≥ 0.006 mm		0.0090	0.0100	0.0090
Overall Diameter	≤ 0.052 mm		0.0490	0.0500	0.0490
DC Resistance	≤ 14.433 Ω/m		13.799	13.793	13.785
Elongation	≥ 11%		18	20	19
Breakdown Voltage	≥325 V		989	1302	1176
Pin Hole	≤ 5 faults/5m		0	0	0
Adherence	No cracks visible		OK	OK	OK
Cut-through	230℃ 2min No breakdown		OK	OK	OK
Heat Shock	200±5℃/30min No cracks		OK	OK	OK
Solderability	390± 5℃ 2 Sec No slags		OK	OK	OK


			Name

			20 - 56 AWG Varnished Copper Wire Copper Enameled Wire , 0.4mm - 0.8mm Green super Fine Copper Wire Insulated

			Key word

			20 - 56 AWG Varnished Copper Wire Copper Enameled Wire , 0.4mm - 0.8mm Green super Fine Copper Wire Insulated

			Insulationh

			Enamel

			Thermal rating

			155

			Diameter of the enameled copper wire

			0.04mm

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.04mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
