| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.04mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEWF SWG 48 Green Color Copper Magnet Wire For Motor Winding | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | 2UEWF/H 0.04mm Green Color Super Thin Magnet Wire Enameled Copper Wire For Motor2UEWF SWG 48 Green Color Copper Magnet Wire For Motor Winding |
| Type: | 2UEWF SWG 48 Green Color Copper Magnet Wire For Motor Winding | ||
| High Light: | swg 48 enameled magnet wire,enameled magnet wire for motor winding,swg 48 super enamelled copper wire |
||

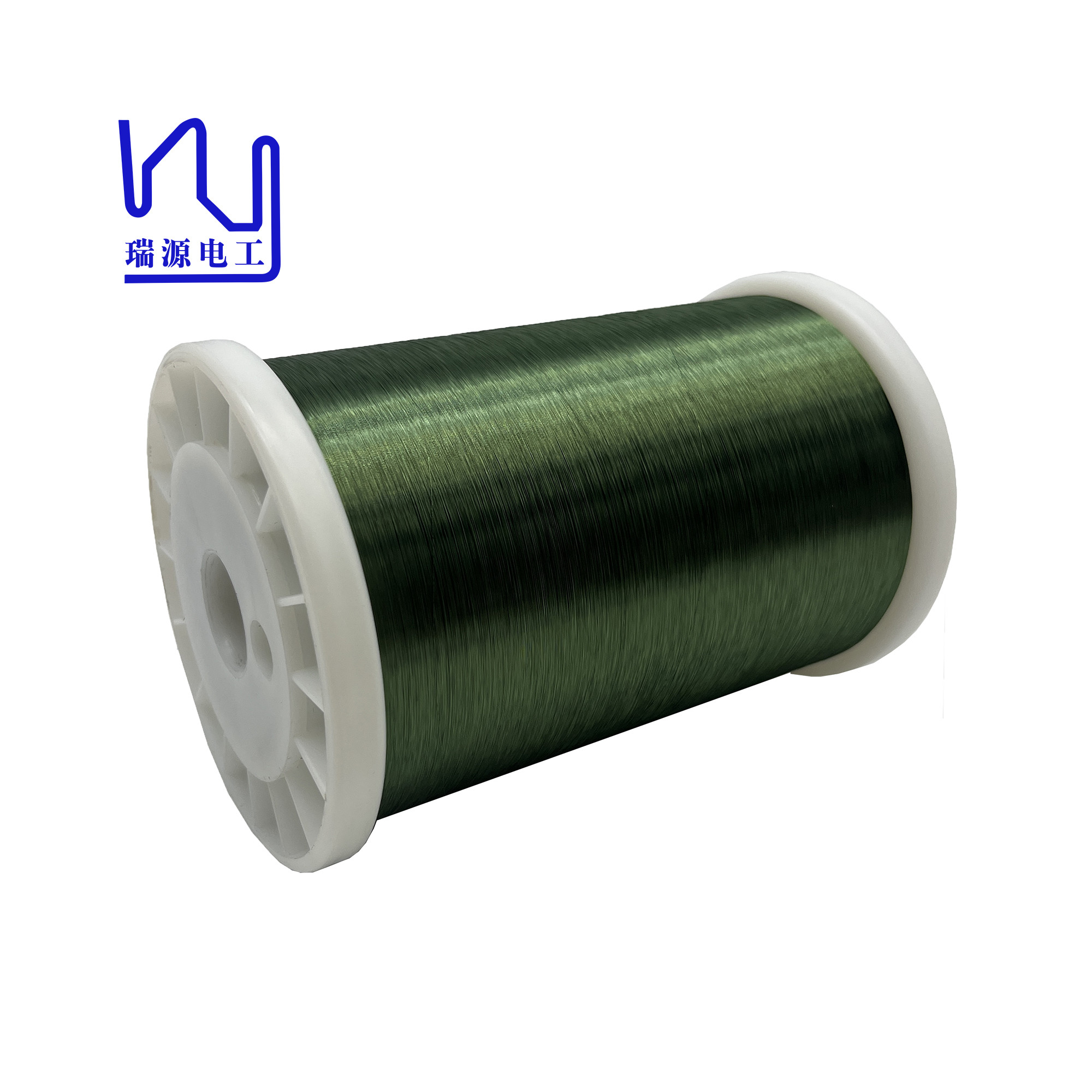

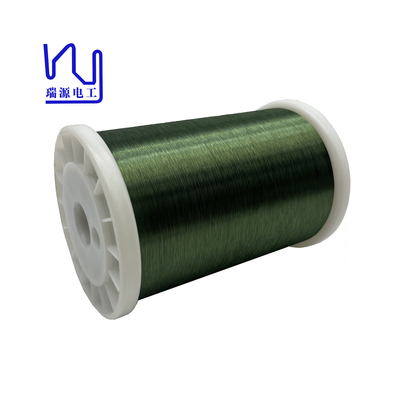

2UEWF SWG 48 Green Color Copper Magnet Wire For Motor Winding
Most of the enameled wires we produce are copper in color, but this specially customized green enameled copper wire is very popular. It uses polyurethane as the paint film component, has a temperature resistance level of 155 degrees, and is a high-quality ultra-fine wire. In addition to green, we can also customize enameled copper wires in other colors according to customer needs, such as blue, red, pink, etc.
| Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.040mm ± | 0.001mm | 0.0400 | 0.0400 | 0.0400 |
| Thickness of Insulation | ≥ 0.006 mm | 0.0090 | 0.0100 | 0.0090 | |
| Overall Diameter | ≤ 0.052 mm | 0.0490 | 0.0500 | 0.0490 | |
| DC Resistance | ≤ 14.433 Ω/m | 13.799 | 13.793 | 13.785 | |
| Elongation | ≥ 11% | 18 | 20 | 19 | |
| Breakdown Voltage | ≥325 V | 989 | 1302 | 1176 | |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
|
Name |
2UEWF SWG 48 Green Color Copper Magnet Wire For Motor Winding |
|
Key word |
2UEWF SWG 48 Green Color Copper Magnet Wire For Motor Winding |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
