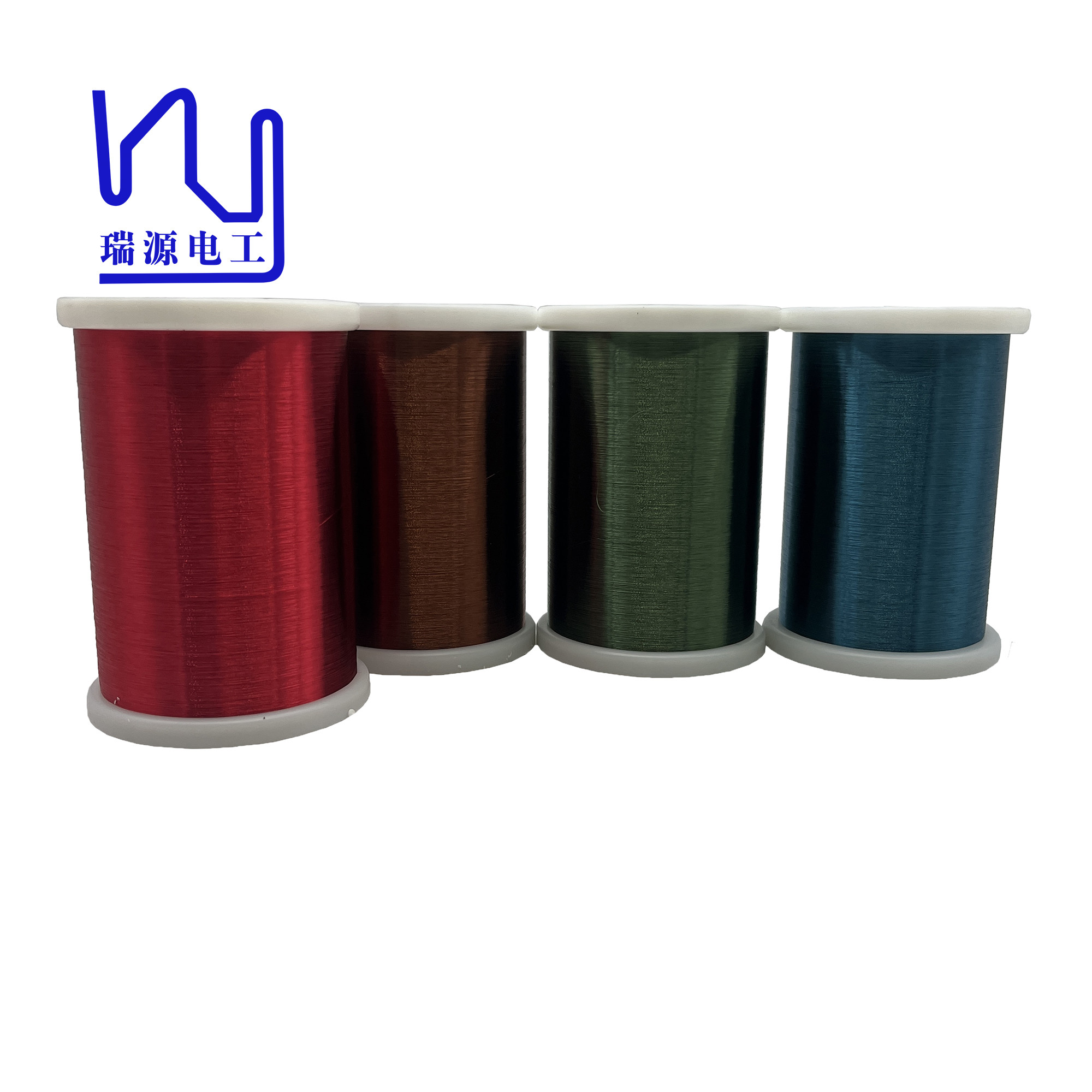

0.04mm 0.05mm 0.07mm 0.08mm Enamelled Copper Wire 2UEW155

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.08mm

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.08mm
Conductor Material:	Copper	Key Word:	0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid
Type:	0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid
Highlight:	enamelled copper wire self bonding , 0.07mm enamelled copper wire , uew self bonding copper wire

Product Description

0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid

The quality of our enameled copper wire is reliable and can provide stable electrical performance to ensure the safe operation of equipment and systems.

We are willing to provide customized services according to your special needs and ensure product quality and performance.

Please contact us and we will be happy to provide you with a satisfactory solution.

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.080±0.002	0.45	0.45
Coating Thickness	≥ 0.008 mm	0.011	0.012
Overall Diameter	≤ 0.094 mm	0.091	0.092
Conductor Resistance	≤ 3.608 Ω/m	3.456	3.443
Elongation	≥ 16 %	19	19
Breakdown Voltage	≥ 425 V	1578	1496
Pinhole Test	≤ 5 holes/5m	0	0
Continuity	≤ 40 holes/30m	0	0
Test Items	Technical Requests	Results
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2minsno breakdown	OK
Heat Shock	175±5℃/30minno crack	OK
Solder Ability	390± 5℃ 2SecNo blister, no expansion, no shed	OK

Name	0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid
Key word	0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid
Insulationh	Enamel
Thermal rating	155
Diameter of the enameled copper wire	0.08mm

0.04mm 0.05mm 0.07mm 0.08mm Enamelled Copper Wire 2UEW155 0
