| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.05mm 0.06mm 0.08mm Super Thin Color Enameled Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | 0.05mm 0.06mm 0.08mm Super Thin Color Enameled Copper Wire |
| Type: | 0.05mm 0.06mm 0.08mm Super Thin Color Enameled Copper Wire | ||
| High Light: | copper self bonding magnet wire,0.05mm self bonding magnet wire,magnet self bonding copper wire |
||

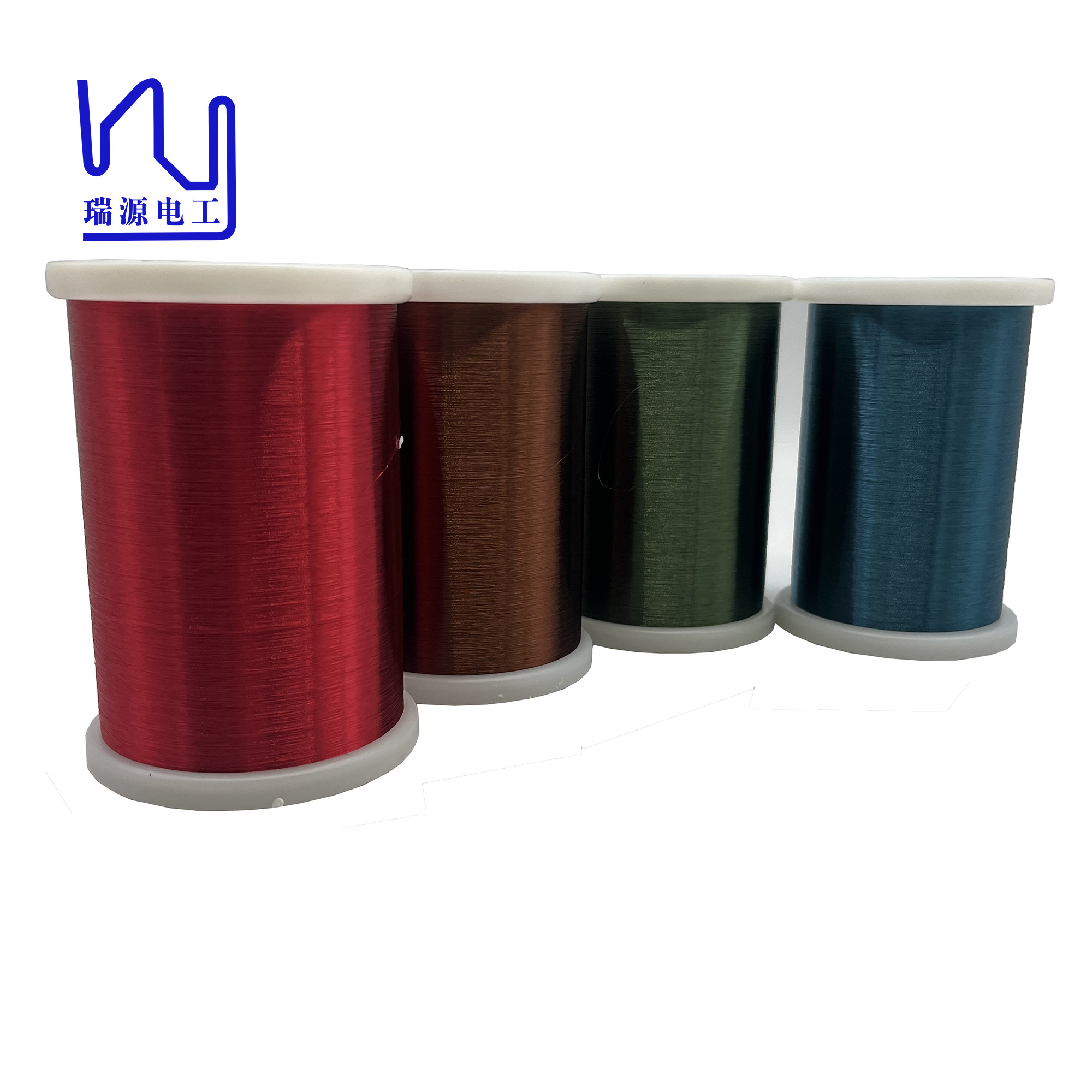

0.05mm 0.06mm 0.08mm Super Thin Color Enameled Copper Wire
We provide customized services to meet a variety of special needs, whether it is home circuits or industrial applications. The enameled copper wire has excellent electrical conductivity and heat resistance, and can withstand working conditions in high temperature environments. This makes it perform well in a variety of electrical equipment, ensuring efficient and reliable power transmission.
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 | 0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 |
| Elongation | ≥ 16 % | 19 | 19 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1496 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
| Solder Ability | 390± 5℃ 2SecNo blister, no expansion, no shed | OK | |
|
Name |
0.05mm 0.06mm 0.08mm Super Thin Color Enameled Copper Wire |
|
Key word |
0.05mm 0.06mm 0.08mm Super Thin Color Enameled Copper Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
