| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Multi Color Ultrafine Enameled Copper Wire For Winding Coils | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | Blue / Green / Red /Brown Color Enameled Copper Wire For Winding CoilsMulti Color Ultrafine Enameled Copper Wire For Winding Coils |
| Type: | Multi Color Ultrafine Enameled Copper Wire For Winding Coils | ||
| High Light: | multi color enamelled copper wire,enamelled copper wire for winding coils,enamelled copper self bonding magnet wire |
||

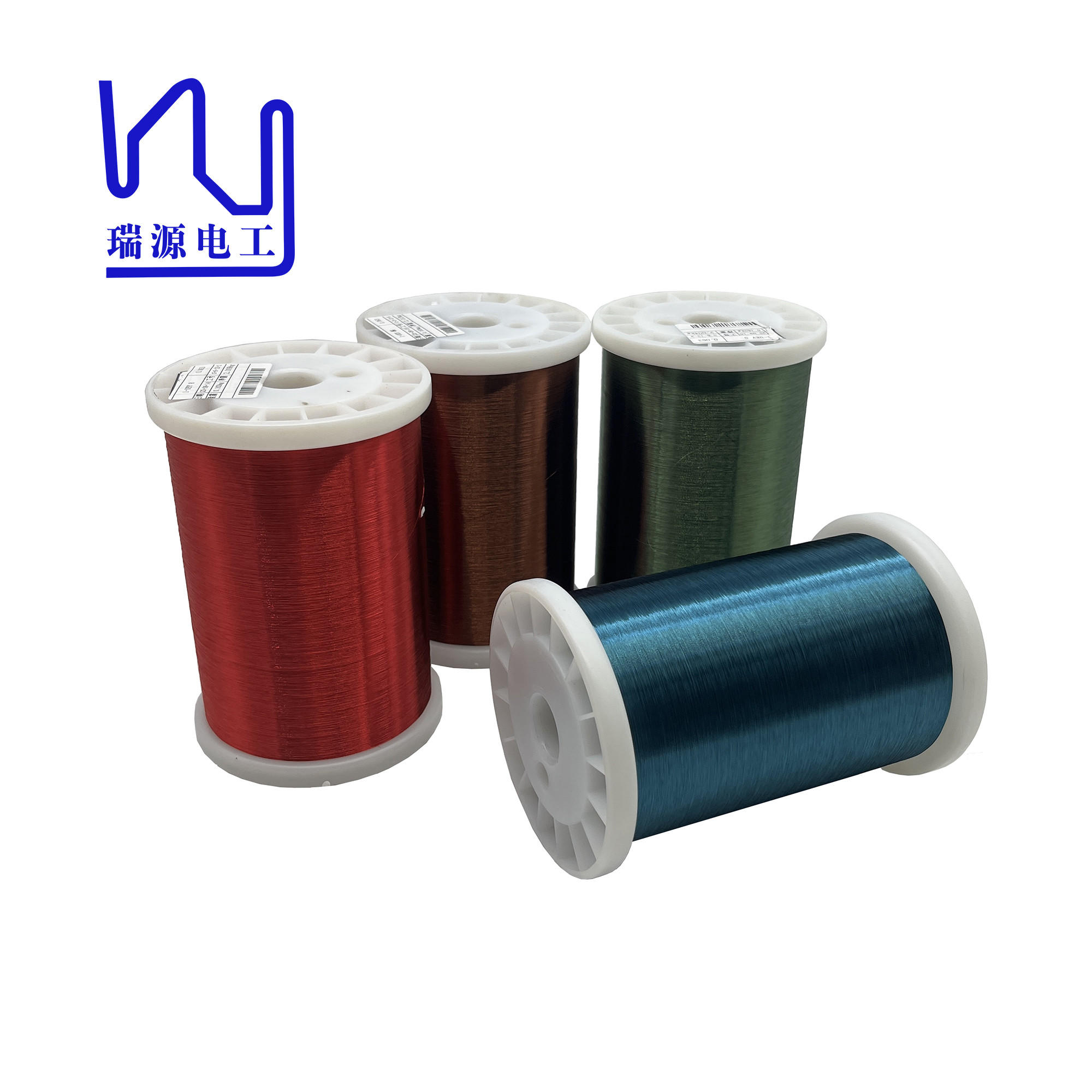

Multi Color Ultrafine Enameled Copper Wire For Winding Coils
We choose high-purity copper as raw material to ensure the conductivity and reliability of the product.
By introducing advanced enameling technology, we evenly coat the insulating material on the copper wires to form a protective layer to prevent current leakage and short circuits.
A strict quality inspection process is carried out to ensure that each colored enameled copper wire meets industry standards and customer requirements.
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 | 0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 |
| Elongation | ≥ 16 % | 19 | 19 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1496 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
| Solder Ability | 390± 5℃ 2SecNo blister, no expansion, no shed | OK | |
|
Name |
Multi Color Ultrafine Enameled Copper Wire For Winding Coils |
|
Key word |
Multi Color Ultrafine Enameled Copper Wire For Winding Coils |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
