| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Blue / Green / Red /Brown Color Enameled Copper Wire For Winding Coils | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | Blue / Green / Red /Brown Color Enameled Copper Wire For Winding Coils |
| Type: | Blue / Green / Red /Brown Color Enameled Copper Wire For Winding Coils | ||
| High Light: | winding coils solderable magnet wire,enameled copper solderable magnet wire,solderable enameled copper magnet wire |
||

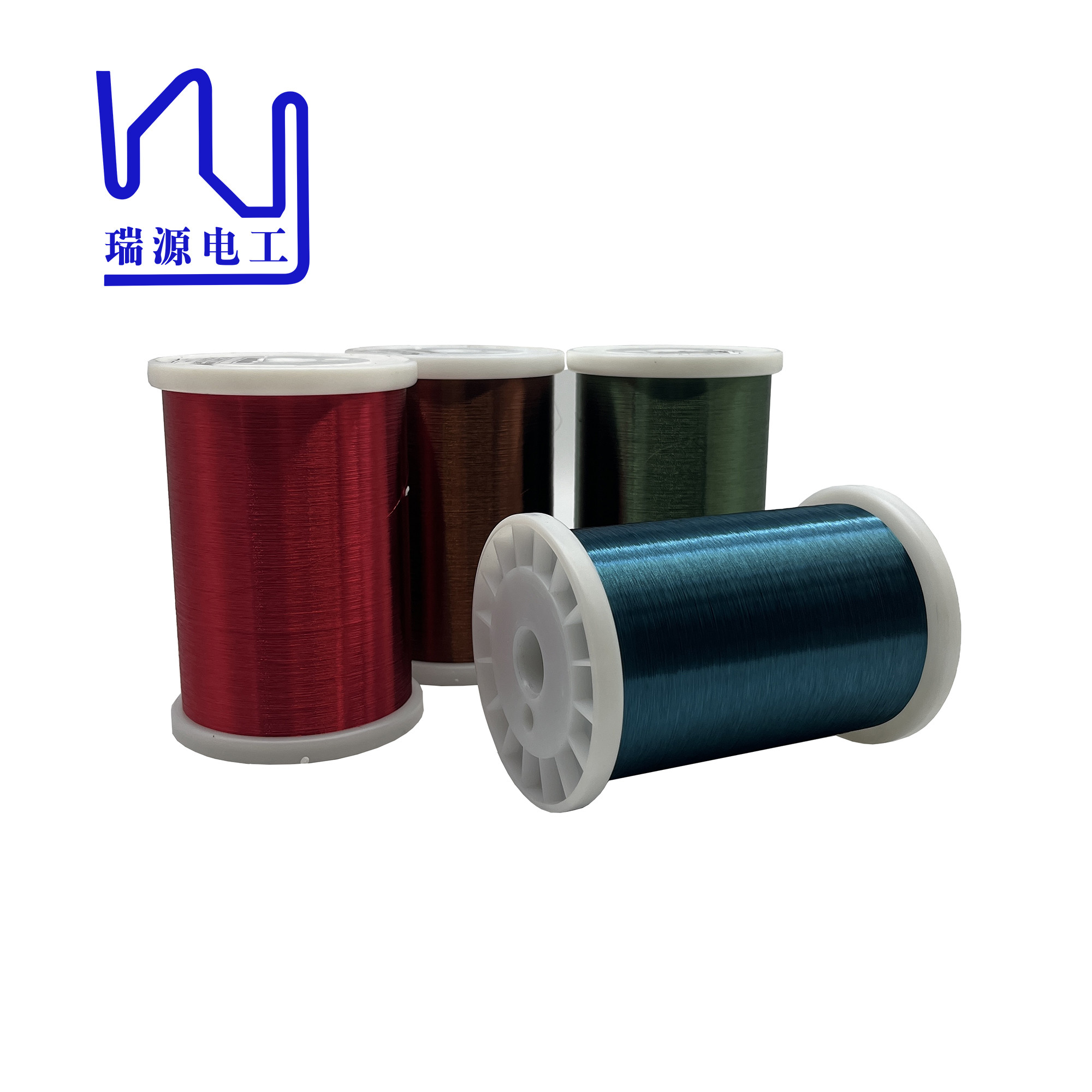

Blue / Green / Red /Brown Color Enameled Copper Wire For Winding Coils
Ruiyuan focuses on the production of enameled copper wire and is willing to customize it according to your special needs. Whether you need multiple colors including red, blue, green, brown, or yellow, we have you covered.
The production process of enameled copper wire is a complex and precise process that requires multiple links to ensure quality and performance.
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 | 0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 |
| Elongation | ≥ 16 % | 19 | 19 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1496 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
| Solder Ability | 390± 5℃ 2SecNo blister, no expansion, no shed | OK | |
|
Name |
Blue / Green / Red /Brown Color Enameled Copper Wire For Winding Coils |
|
Key word |
Blue / Green / Red /Brown Color Enameled Copper Wire For Winding Coils |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
