| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | 0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding |
| Type: | 0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding | ||
| High Light: | enameled copper round wire,enameled round copper wire,enamelled round copper wire |
||

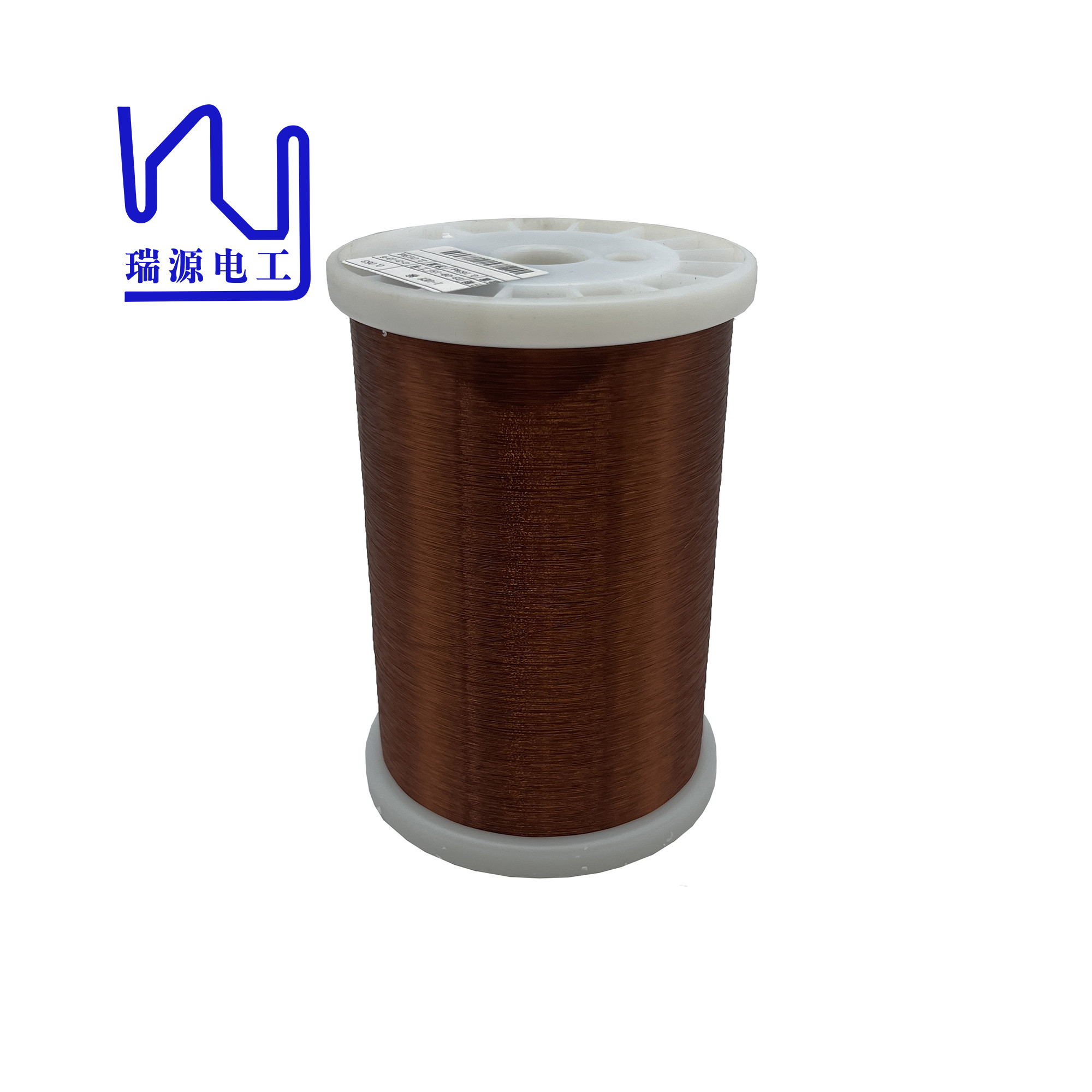

0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding
In the industrial field, 40AWG enameled copper wire is widely used in lead wires, windings and circuit board connections of electronic components. Its high quality and customizable color options make it the first choice for electronic equipment manufacturers and industrial customers. Whether in machine manufacturing, aerospace, automotive industry or other industries, our 40 AWG enameled copper wire can meet the needs of various customers.
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 | 0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 |
| Elongation | ≥ 16 % | 19 | 19 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1496 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
| Solder Ability | 390± 5℃ 2SecNo blister, no expansion, no shed | OK | |
|
Name |
0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding |
|
Key word |
0.011mm-0.8mm Round Poly Insulated Enameled DC Motor Winding |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
